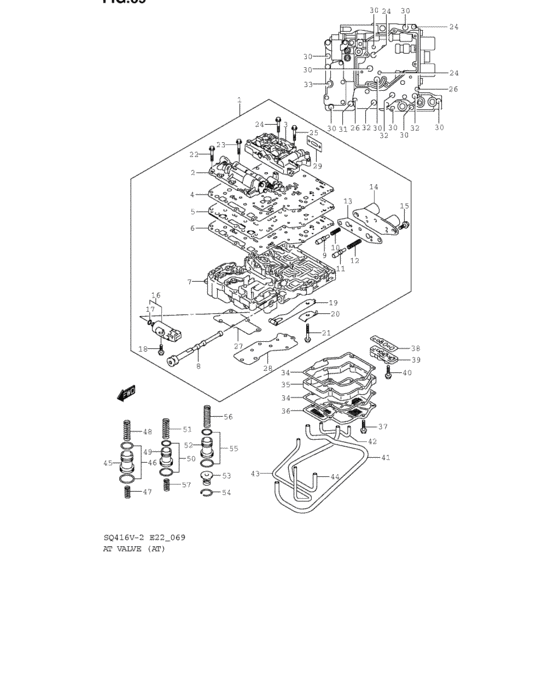

At valve (AT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- FREE STYLE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26500-66D30-000
BODY ASSY,CONTROL VALVE
SQ416 |
26500-66D30-000 |
— | ||
|
1
|
1
26500-65D30-000
Valve body assy
SQ420,->26500-65DH0,USED WITH 29721-57B00,,29644-57B00,AND 29645-78ED0 |
26500-65D30-000 |
— | ||
| replacements | |||||
|
1
|
1
26500-65DH1-000
BODY ASSY,CONTROL VALVE
SQ420,->26500-65DH0,USED WITH 29721-57B00,,29644-57B00,AND 29645-78ED0 |
26500-65DH1-000 |
— | ||
|
1
|
1
29645-78ED0-000 SPRING,2ND BRAKE ACC NO.2SQ420,->26500-65DH0,USED WITH 29721-57B00,,29644-57B00,AND 29645-78ED0 |
29645-78ED0-000 |
US $16.67 |
||
|
1
|
1
29721-57B00-000 PISTON,2ND BK ACCSQ420,->26500-65DH0,USED WITH 29721-57B00,,29644-57B00,AND 29645-78ED0 |
29721-57B00-000 |
US $26.68 |
||
|
1
|
1
29644-57B10-000 SPRING,2ND BRAKE ACC NO,1SQ420,->26500-65DH0,USED WITH 29721-57B00,,29644-57B00,AND 29645-78ED0 |
29644-57B10-000 |
US $14.87 |
||
|
1
|
1
29644-57B00-000
SPRING,2ND BRAKE ACC NO.1
SQ420,->26500-65DH0,USED WITH 29721-57B00,,29644-57B00,AND 29645-78ED0 |
29644-57B00-000 |
— | ||
|
1
|
1
26500-65DH0-000
Body assy, valve
SQ420,JSAFTA52V00151027~,JS3TA52V 14150147~,JSAFTA52V14150190~,JSAFTB52V00150090~,JS3TB52V 14150047~,JSAFTB52V14150001~ |
26500-65DH0-000 |
— | ||
| replacement | |||||
|
1
|
1
26500-65DH1-000
BODY ASSY,CONTROL VALVE
SQ420,JSAFTA52V00151027~,JS3TA52V 14150147~,JSAFTA52V14150190~,JSAFTB52V00150090~,JS3TB52V 14150047~,JSAFTB52V14150001~ |
26500-65DH1-000 |
— | ||
|
2
|
2
26530-66D10-000
BODY ASSY,CONT VALVE FR UPR
SQ416 |
26530-66D10-000 |
— | ||
|
2
|
2
26530-65D30-000 BODY ASSY,CONT VALVE FR UPRSQ420 |
26530-65D30-000 |
US $686.40 |
||
|
3
|
3
26520-77ED0-000 BODY ASSY,CONT VALVE RR UPRSQ416 |
26520-77ED0-000 |
US $672.32 |
||
|
4
|
4
26584-57B01-000 GASKET,UPR VALVE BODY |
26584-57B01-000 |
US $29.60 |
||
|
5
|
5
26522-66D30-000
PLATE,SEPARATOR
SQ416 |
26522-66D30-000 |
— | ||
|
5
|
5
26522-65D30-000
PLATE,SEPARATOR
SQ420 |
26522-65D30-000 |
— | ||
|
6
|
6
26585-57B01-000 GASKET,LWR VALVE BODY |
26585-57B01-000 |
US $29.60 |
||
|
7
|
7
26510-66D10-000
BODY ASSY,CONT VALVE LWR
SQ416 |
26510-66D10-000 |
— | ||
|
7
|
7
26510-67D30-000
BODY ASSY,CONT VALVE LWR
SQ420 |
26510-67D30-000 |
— | ||
|
8
|
8
26552-57B00-000
VALVE,MANUAL
|
26552-57B00-000 |
— | ||
|
9
|
9
26538-57B00-000 VALVE,INTMD COAST MOD |
26538-57B00-000 |
US $17.52 |
||
|
10
|
10
29627-65D10-000 SPRING,INTER COAST MOD VALVE |
29627-65D10-000 |
US $8.21 |
||
|
11
|
11
26538-57B00-000 VALVE,INTMD COAST MOD |
26538-57B00-000 |
US $17.52 |
||
|
12
|
12
29628-57B00-000 SPRING,LOW COAST MOD VALVE |
29628-57B00-000 |
US $7.25 |
||
|
13
|
13
26589-57B00-000 GASKET,SOLENOID |
26589-57B00-000 |
US $14.88 |
||
|
14
|
14
26591-57B00-000 SOLENOID,T/M NO.1 |
26591-57B00-000 |
US $720 |
||
|
15
|
15
29973-57B00-000 BOLT,SOLENOID NO.1 |
29973-57B00-000 |
US $7.80 |
||
|
16
|
16
26592-57BT0-000 SOLENOID SET,T/M NO.2 |
26592-57BT0-000 |
US $392 |
||
|
17
|
17
29728-57B00-000 O-RING,SOLENOID |
29728-57B00-000 |
US $4.64 |
||
|
18
|
18
29983-57B00-000 BOLT,SOLENOID NO.2 |
29983-57B00-000 |
US $5.85 |
||
|
19
|
19
26541-85FA0-000 SPRING,DETENT |
26541-85FA0-000 |
US $20.61 |
||
|
20
|
20
26523-85FA0-000 PLATE,DETENT SPRING |
26523-85FA0-000 |
US $9.46 |
||
|
21
|
21
29974-57B00-000 BOLT,DETENT SPRING |
29974-57B00-000 |
US $6.48 |
||
|
22
|
22
29979-65D10-000 BOLT,UPR&LWR VALVE BODY NO.1 |
29979-65D10-000 |
US $5.85 |
||
|
23
|
23
29978-65D10-000 BOLT,UPR&LWR VALVE BODY NO.2 |
29978-65D10-000 |
US $5.85 |
||
|
24
|
24
29977-57B00-000 BOLT,UPR&LWR VALVE BODY NO.3 |
29977-57B00-000 |
US $7.43 |
||
|
25
|
25
29976-57B00-000 BOLT,UPR&LWR VALVE BODY NO.4 |
29976-57B00-000 |
US $6.48 |
||
|
26
|
26
29975-57B00-000 BOLT,UPR&LWR VALVE BODY NO.5 |
29975-57B00-000 |
US $6.73 |
||
|
27
|
27
26586-57B00-000 GASKET,LOCK UP CONT VALVE |
26586-57B00-000 |
US $7.43 |
||
|
28
|
28
26587-57B00-000 GASKET,LWR VALVE BODY PLATE |
26587-57B00-000 |
US $12.92 |
||
|
29
|
29
26588-57B00-000 GASKET,RR UPR VALVE BODY PLATE |
26588-57B00-000 |
US $5.85 |
||
|
30
|
30
29986-57B00-000 BOLT,BRAKE APPLY |
29986-57B00-000 |
US $6.73 |
||
|
31
|
31
29985-57B00-000 BOLT |
29985-57B00-000 |
US $5.59 |
||
|
32
|
32
29984-57B00-000 BOLT,VALVE BODY T/M CASE NO.3 |
29984-57B00-000 |
US $7.54 |
||
|
33
|
33
29987-57B00-000 BOLT,VALVE BODY T/M CASE NO.4 |
29987-57B00-000 |
US $7.25 |
||
|
34
|
34
26583-57B00-000 GASKET,OIL SCREEN |
26583-57B00-000 |
from US $14.67 |
||
|
35
|
35
26565-57B00-000 SPACER,OIL SCREEN |
26565-57B00-000 |
US $109.30 |
||
|
36
|
36
26582-57B00-000 SCREEN,OIL |
26582-57B00-000 |
from US $56.72 |
||
|
37
|
37
29977-57B00-000 BOLT,UPR&LWR VALVE BODY NO.3 |
29977-57B00-000 |
US $7.43 |
||
|
38
|
38
26581-57B00-000 GASKET,BRAKE APPLY COVER |
26581-57B00-000 |
US $10.08 |
||
|
39
|
39
26521-57B00-000 COVER,BRAKE APPLY |
26521-57B00-000 |
US $32.75 |
||
|
40
|
40
29986-57B00-000 BOLT,BRAKE APPLY |
29986-57B00-000 |
US $6.73 |
||
|
41
|
41
26533-57B00-000 TUBE,FORWARD CL APPLY |
26533-57B00-000 |
US $38.64 |
||
|
42
|
42
26532-57B00-000 TUBE,REVERSE BRAKE APPLY |
26532-57B00-000 |
US $21.34 |
||
|
43
|
43
26534-57B00-000 TUBE,O/D BRAKE APPLY |
26534-57B00-000 |
US $29.62 |
||
|
44
|
44
26531-57B00-000 TUBE,LUBE APPLY |
26531-57B00-000 |
US $29.62 |
||
|
45
|
45
29721-57B00-000 PISTON,2ND BK ACCSQ416 |
29721-57B00-000 |
US $26.68 |
||
|
45
|
45
29721-85FA0-000 PISTON,2ND BRAKE ACCSQ420 |
29721-85FA0-000 |
US $28 |
||
|
46
|
46
29733-57BT0-000 O-RING SET,2ND BK ACC PSTN |
29733-57BT0-000 |
from US $11 |
||
|
47
|
47
29644-57B00-000
SPRING,2ND BRAKE ACC NO.1
SQ416 |
29644-57B00-000 |
— | ||
|
47
|
47
29644-65D30-000 SPRING,2ND BRAKE ACC NO.1SQ420 |
29644-65D30-000 |
US $14.87 |
||
| replacement | |||||
|
47
|
47
29644-57B10-000 SPRING,2ND BRAKE ACC NO,1SQ420 |
29644-57B10-000 |
US $14.87 |
||
|
48
|
48
29645-66D10-000
SPRING,2ND BRAKE ACC NO.2
SQ416 |
29645-66D10-000 |
— | ||
|
48
|
48
29645-85FA0-000 SPRING,2ND BRAKE ACC NO.2SQ420 |
29645-85FA0-000 |
US $10.56 |
||
|
48
|
48
29645-78ED0-000 SPRING,2ND BRAKE ACC NO.2SQ420,JSAFTA52V00151027~,JS3TA52V 14150147~,JSAFTA52V14150190~,JSAFTB52V00150090~,JS3TB52V 14150047~,JSAFTB52V14150001~ |
29645-78ED0-000 |
US $16.67 |
||
|
49
|
49
29722-57B00-000 PISTON,DIRECT CL ACCSQ416 |
29722-57B00-000 |
US $27.20 |
||
|
49
|
49
29722-85FA0-000 PISTON,DIRECT CLSQ420 |
29722-85FA0-000 |
US $28.15 |
||
|
50
|
50
29732-57BT0-000 O-RING SET,DIRECT CL ACC PSTN |
29732-57BT0-000 |
from US $10.67 |
||
|
51
|
51
29643-66D10-000 SPRING,DIRECT CL ACC NO.2SQ416 |
29643-66D10-000 |
US $10.34 |
||
|
51
|
51
29643-85FA0-000 SPRING,DIRECT CL ACCSQ420 |
29643-85FA0-000 |
US $11.56 |
||
|
52
|
52
26410-57B00-000
PISTON,FWD CLUTCH ACC
SQ416 |
26410-57B00-000 |
— | ||
|
52
|
52
29723-77ED0-000 PISTON,FWD CLUTCH ACCSQ420 |
29723-77ED0-000 |
US $84 |
||
|
53
|
53
26411-57B00-000 SPRING,FORWARD CLUTCH ACCSQ416 |
26411-57B00-000 |
US $7.76 |
||
|
54
|
54
26412-57B00-000 CIRCLIP,FWD CL ACC PSTNSQ416 |
26412-57B00-000 |
US $5.23 |
||
|
55
|
55
29731-57BT0-000 O-RING,FORWARD CL ACC PSTN |
29731-57BT0-000 |
US $13.28 |
||
|
56
|
56
29641-57B00-000
SPRING,FORWARD CL ACC NO.1
SQ416 |
29641-57B00-000 |
— | ||
|
56
|
56
29641-77ED0-000 SPRING,FORWARD CL ACC NO.1SQ420 |
29641-77ED0-000 |
US $17.15 |
||
|
57
|
57
29642-85FD0-000 SPRING,DIRECT CL ACC NO.1SQ420 |
29642-85FD0-000 |
US $15.04 |
||
