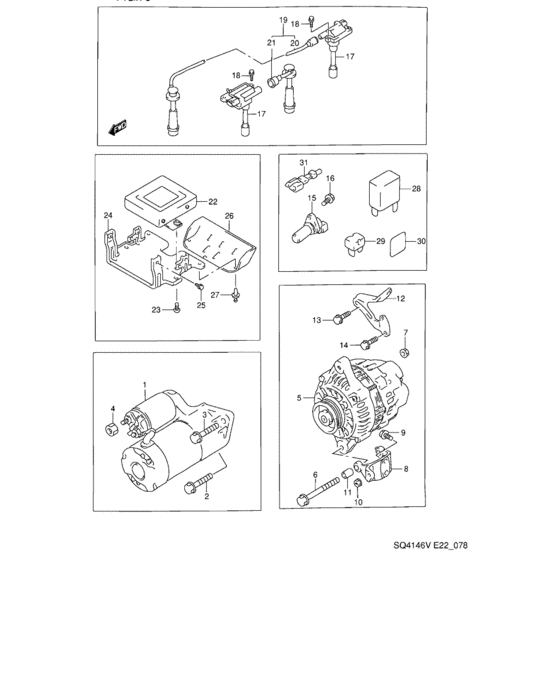

Engine electrical (SQ416V) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-83031-000
Motor assy,starting
PLATE NO.31100-8303 |
31100-83031-000 |
— | ||
| replacements | |||||
|
1
|
1
31100-83031-REM
Starting motor
PLATE NO.31100-8303 |
31100-83031-REM |
— | ||
|
1
|
1
31100-83032-000 MOTOR ASSY,STARTINGPLATE NO.31100-8303 |
31100-83032-000 |
US $524.48 |
||
|
1
|
1
31100-60A13-000
モータアッシ,スターティング
PLATE NO.31100-60A1 |
31100-60A13-000 |
— | ||
| replacements | |||||
|
1
|
1
31100-60A12-REM
Starting motor
PLATE NO.31100-60A1 |
31100-60A12-REM |
— | ||
|
1
|
1
31100-60A24-000 MOTOR ASSY,STARTINGPLATE NO.31100-60A1 |
31100-60A24-000 |
US $668.80 |
||
|
1
|
1
31100-77E11-000 MOTOR ASSY,STARTINGPLATE NO.31100-77 |
31100-77E11-000 |
from US $582.66 |
||
|
1
|
1
31100-66D00-000 MOTOR ASSY,STARTINGPLATE NO.31100-66D0 |
31100-66D00-000 |
US $542.08 |
||
|
2
|
2
01550-08353-000
Bolt, rear
PLATE NO.31100-8303,PLATE NO.31100-60A1 |
01550-08353-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0835B-000 BOLTPLATE NO.31100-8303,PLATE NO.31100-60A1 |
01550-0835B-000 |
from US $1.12 |
||
|
2
|
2
01550-0835A-000 BOLTPLATE NO.31100-8303,PLATE NO.31100-60A1 |
01550-0835A-000 |
from US $1.06 |
||
|
3
|
3
01550-10503-000
Bolt
PLATE NO.31100-77,PLATE NO.31100-66D0 |
01550-10503-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-1050B-000 BOLTPLATE NO.31100-77,PLATE NO.31100-66D0 |
01550-1050B-000 |
US $1.22 |
||
|
3
|
3
01550-08503-000
Bolt
PLATE NO.31100-8303,PLATE NO.31100-60A1 |
01550-08503-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-0850B-000 BoltPLATE NO.31100-8303,PLATE NO.31100-60A1 |
01550-0850B-000 |
from US $1.22 |
||
|
4
|
4
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
5
|
5
31400-66D00-000
Generator assy
|
31400-66D00-000 |
— | ||
| replacement | |||||
|
5
|
5
31400-66D04-000 GENERATOR ASSY |
31400-66D04-000 |
US $753.28 |
||
|
6
|
6
01550-10853-000
Bolt
|
01550-10853-000 |
— | ||
| replacement | |||||
|
6
|
6
01550-1085A-000 BOLT |
01550-1085A-000 |
US $1.76 |
||
|
7
|
7
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
8
|
8
11551-83E00-000 BRACKET,GENERATOR |
11551-83E00-000 |
US $48.64 |
||
|
9
|
9
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
9
|
9
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
10
|
10
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
11
|
11
11555-60G00-000
Bush, generator
|
11555-60G00-000 |
— | ||
| replacement | |||||
|
11
|
11
11555-60G01-000 BUSH |
11555-60G01-000 |
US $3.68 |
||
|
12
|
12
11561-66D00-000 ARM,GENERATOR ADJUST |
11561-66D00-000 |
US $20.61 |
||
|
13
|
13
09118-08107-000 BOLT(8X25) |
09118-08107-000 |
US $1.12 |
||
|
14
|
14
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
14
|
14
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
15
|
15
33220-50G02-000 SENSOR ASSY,CAM POSITION |
33220-50G02-000 |
from US $89.10 |
||
|
16
|
16
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
16
|
16
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
17
|
17
33410-66D00-000
コイルアッシ,イグニツシヨン
|
33410-66D00-000 |
— | ||
| replacement | |||||
|
17
|
17
33410-66D01-000 COIL ASSY,IGNITION |
33410-66D01-000 |
US $278.40 |
||
|
18
|
18
01580-06203-000
Bolt
|
01580-06203-000 |
— | ||
| replacement | |||||
|
18
|
18
01580-0620B-000 BOLT |
01580-0620B-000 |
from US $4.49 |
||
|
19
|
19
33705-66D00-000 CORD SET,HIGH TENSION |
33705-66D00-000 |
from US $45.65 |
||
|
20
|
20
33730-66D00-000 CORD,HIGH TENSION NO.2 |
33730-66D00-000 |
US $30.18 |
||
|
21
|
21
33740-66D00-000 CORD,HT NO.3 |
33740-66D00-000 |
US $29.07 |
||
|
22
|
22
33920-66D61-000
Controller, fuel injection
MT:,2,Israel |
33920-66D61-000 |
— | ||
| replacement | |||||
|
22
|
22
33920-66D62-000
CONTROLLER ASSY,EPI
MT:,2,Israel |
33920-66D62-000 |
— | ||
|
22
|
22
33920-66D62-000
CONTROLLER ASSY,EPI
MT:,2,Israel:SEE NOTE 1 |
33920-66D62-000 |
— | ||
|
22
|
22
33920-66D82-000
CONTROLLER ASSY,EPI
MT:Chile,Australia |
33920-66D82-000 |
— | ||
|
22
|
22
33920-66DA1-000
Controller, fuel injection
MT:,EC |
33920-66DA1-000 |
— | ||
| replacement | |||||
|
22
|
22
33920-66DA2-000
CONTROLLER ASSY,EPI
MT:,EC |
33920-66DA2-000 |
— | ||
|
22
|
22
33920-66DA2-000
CONTROLLER ASSY,EPI
MT:,EC:SEE NOTE 1 |
33920-66DA2-000 |
— | ||
|
22
|
22
33920-66DE2-000
CONTROLLER ASSY,EPI
MT:Saudi Arabia |
33920-66DE2-000 |
— | ||
|
22
|
22
33920-66DC1-000
Controller, fuel injection
MT:Brazil |
33920-66DC1-000 |
— | ||
|
22
|
22
33920-66DC2-000
Controller, fuel injection
MT:Brazil:SEE NOTE 1 |
33920-66DC2-000 |
— | ||
|
23
|
23
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
23
|
23
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.80 |
||
|
24
|
24
33924-65D10-000
BRACKET,EPI CONT
|
33924-65D10-000 |
— | ||
|
25
|
25
02162-06103-000
Bolt
|
02162-06103-000 |
— | ||
| replacement | |||||
|
25
|
25
02162-0610A-000 SCREW |
02162-0610A-000 |
from US $0.64 |
||
|
26
|
26
33924-65D00-000 COVER,EPI CONT |
33924-65D00-000 |
US $12.59 |
||
|
27
|
27
09409-07332-000 CLIP |
09409-07332-000 |
from US $1.26 |
||
|
28
|
28
38860-83E70-000
リレーアッシ
|
38860-83E70-000 |
— | ||
| replacement | |||||
|
28
|
28
38860-76F01-000 RELAY ASSYRelay, starting motor |
38860-76F01-000 |
from US $24.91 |
||
|
29
|
29
33926-76G10-000 RESISTOR,IGT NO.1 |
33926-76G10-000 |
US $19.20 |
||
|
29
|
29
33926-78A10-000 RESISTOR,IGT NO.1SEE NOTE 2 |
33926-78A10-000 |
US $9.35 |
||
|
29
|
29
33926-76G20-000 RESISTOR,IGT NO.2 |
33926-76G20-000 |
US $19.20 |
||
|
29
|
29
33926-78A20-000 RESISTOR,IGT NO.2SEE NOTE 2 |
33926-78A20-000 |
US $9.35 |
||
|
29
|
29
33926-76G30-000 RESISTOR,IGT NO.3 |
33926-76G30-000 |
US $8.10 |
||
|
29
|
29
33926-78A30-000 RESISTOR,IGT NO.3SEE NOTE 2 |
33926-78A30-000 |
US $9.35 |
||
|
29
|
29
33926-76G40-000 RESISTOR,IGT NO.4 |
33926-76G40-000 |
US $8.10 |
||
|
29
|
29
33926-78A40-000 RESISTOR,IGT NO.4SEE NOTE 2 |
33926-78A40-000 |
US $9.35 |
||
|
29
|
29
33926-76G50-000 RESISTOR,IGT NO.5 |
33926-76G50-000 |
US $8.10 |
||
|
29
|
29
33926-78A50-000 RESISTOR,IGT NO.5SEE NOTE 2 |
33926-78A50-000 |
US $9.35 |
||
|
29
|
29
33926-76G01-000 RESISTOR,IGT NO.N |
33926-76G01-000 |
US $13.07 |
||
|
29
|
29
33926-78A01-000 RESISTOR,IGT NO.NSEE NOTE 2 |
33926-78A01-000 |
US $9.35 |
||
|
29
|
29
33926-76G60-000 RESISTOR,IGT NO.6 |
33926-76G60-000 |
US $8.10 |
||
|
29
|
29
33926-78A60-000 RESISTOR,IGT NO.6SEE NOTE 2 |
33926-78A60-000 |
US $9.35 |
||
|
29
|
29
33926-76G70-000 RESISTOR,IGT NO.7 |
33926-76G70-000 |
US $8.10 |
||
|
29
|
29
33926-78A70-000 RESISTOR,IGT NO.7SEE NOTE 2 |
33926-78A70-000 |
US $6.65 |
||
|
29
|
29
33926-76G80-000 RESISTOR,IGT NO.8 |
33926-76G80-000 |
US $8.10 |
||
|
29
|
29
33926-78A80-000 RESISTOR,IGT NO.8SEE NOTE 2 |
33926-78A80-000 |
US $9.35 |
||
|
29
|
29
33926-76G90-000 RESISTOR,IGT NO.9 |
33926-76G90-000 |
US $8.10 |
||
|
29
|
29
33926-78A90-000 RESISTOR,IGT NO.9SEE NOTE 2 |
33926-78A90-000 |
US $9.35 |
||
|
29
|
29
33926-76GA0-000 RESISTOR,IGT NO.10 |
33926-76GA0-000 |
US $8.10 |
||
|
29
|
29
33926-78AA0-000 RESISTOR,IGT NO.10SEE NOTE 2 |
33926-78AA0-000 |
US $8 |
||
|
29
|
29
33926-76GB0-000 RESISTOR,IGT NO.11 |
33926-76GB0-000 |
US $8.10 |
||
|
29
|
29
33926-78AB0-000 RESISTOR,IGT NO.11SEE NOTE 2 |
33926-78AB0-000 |
US $9.35 |
||
|
30
|
30
33927-76G10-000 LABEL,IGT,NO.1 |
33927-76G10-000 |
US $2.72 |
||
|
30
|
30
33927-76G20-000 LABEL,IGT,NO.2 |
33927-76G20-000 |
US $2.72 |
||
|
30
|
30
33927-76G30-000 LABEL,IGT,NO.3 |
33927-76G30-000 |
US $2.72 |
||
|
30
|
30
33927-76G40-000 LABEL,IGT,NO.4 |
33927-76G40-000 |
US $2.72 |
||
|
30
|
30
33927-76G50-000 LABEL,IGT,NO.5 |
33927-76G50-000 |
US $2.72 |
||
|
30
|
30
33927-76G01-000 LABEL,IGT NO N |
33927-76G01-000 |
US $2.72 |
||
|
30
|
30
33927-76G60-000 LABEL,IGT,NO.6 |
33927-76G60-000 |
US $2.72 |
||
|
30
|
30
33927-76G70-000 LABEL,IGT,NO.7 |
33927-76G70-000 |
US $2.72 |
||
|
30
|
30
33927-76G80-000 LABEL,IGT,NO.8 |
33927-76G80-000 |
US $2.72 |
||
|
30
|
30
33927-76G90-000 LABEL,IGT,NO.9 |
33927-76G90-000 |
US $2.72 |
||
|
30
|
30
33927-76GA0-000 LABEL,IGT,NO.10 |
33927-76GA0-000 |
US $2.72 |
||
|
30
|
30
33927-76GB0-000 LABEL,IGT,NO.11 |
33927-76GB0-000 |
US $2.72 |
||
|
31
|
31
33926-60G10-000 RESISTOR,CO ADJUSTER,EC,Saudi Arabia |
33926-60G10-000 |
US $57.41 |
||
