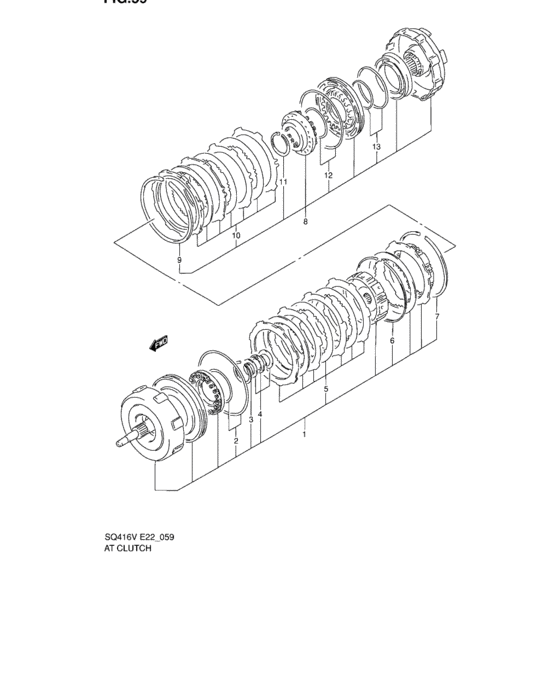

At clutch (AT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26601-57B10-000
クラッチアッシ,マルチプルディスク
SQ416V |
26601-57B10-000 |
— | ||
| replacements | |||||
|
1
|
1
26601-57B11-000 CLUTCH ASSY,FWD MULTIPLE DISKSQ416V |
26601-57B11-000 |
US $1,458.56 |
||
|
1
|
1
26662-65DT0-000 BEARING SET,THRUST N0.8SQ416V |
26662-65DT0-000 |
from US $44.33 |
||
|
1
|
1
26601-85FA0-000
Clutch assy, fwd
SQ420V |
26601-85FA0-000 |
— | ||
| replacements | |||||
|
1
|
1
26601-85FA1-000 CLUTCH ASSY,FWD MULTIPLE DISKSQ420V |
26601-85FA1-000 |
US $1,458.56 |
||
|
1
|
1
26662-65DT0-000 BEARING SET,THRUST N0.8SQ420V |
26662-65DT0-000 |
from US $44.33 |
||
|
2
|
2
26622-65DT0-000 O-RING SET,CLUTCH |
26622-65DT0-000 |
from US $20.86 |
||
|
3
|
3
26691-57B00-000 RING,RETAINING RETURN SPRING |
26691-57B00-000 |
from US $7.94 |
||
|
4
|
4
26661-57BT0-000 BEARING SET,THRUST NO.7 |
26661-57BT0-000 |
US $47.10 |
||
|
5
|
5
26631-65DT0-000 PLATE SET,DIRECT CLUTCH |
26631-65DT0-000 |
US $580.80 |
||
|
6
|
6
26823-60G10-000 RING,RETAINING O/D CLSQ416V |
26823-60G10-000 |
US $5.74 |
||
|
6
|
6
24191-57B00-000 RING,RETAINING O/D CLSQ420V |
24191-57B00-000 |
from US $8.96 |
||
|
7
|
7
26692-57B01-000 RING,RETAINING BACK PLATE |
26692-57B01-000 |
from US $11.54 |
||
|
8
|
8
26602-66D10-000
Clutch assy,direct multi disk
SQ416V |
26602-66D10-000 |
— | ||
|
8
|
8
26602-65D10-000
CLUTCH ASSY,DIRECT
SQ420V |
26602-65D10-000 |
— | ||
|
9
|
9
26692-57B10-000 RING,DIRECT CLUTCH |
26692-57B10-000 |
US $14.06 |
||
|
10
|
10
26621-66DT1-000
PLATE SET,DIRECT CLUTCH
SQ416V |
26621-66DT1-000 |
— | ||
|
10
|
10
26621-65DT0-000
PLATE SET,DIRECT CLUTCH
SQ420V |
26621-65DT0-000 |
— | ||
|
11
|
11
26691-57B00-000 RING,RETAINING RETURN SPRING |
26691-57B00-000 |
from US $7.94 |
||
|
12
|
12
26622-65DT0-000 O-RING SET,CLUTCH |
26622-65DT0-000 |
from US $20.86 |
||
|
13
|
13
26632-57BT1-000 O-RING SET,DIRECT CL |
26632-57BT1-000 |
from US $18.59 |
||
