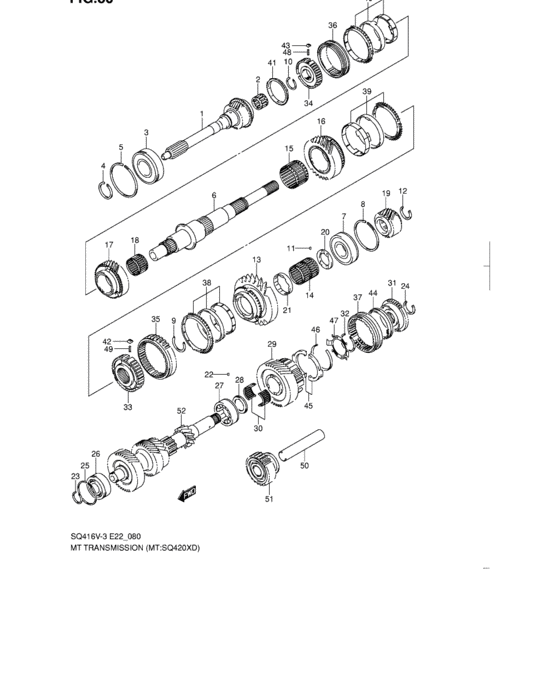

Mt transmission (MT:SQ420XD) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- FREE STYLE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24110-53J00-000
Shaft,t/m input
|
24110-53J00-000 |
— | ||
|
2
|
2
24113-54J00-000 BEARING,NDL ROLLER |
24113-54J00-000 |
US $44.90 |
||
|
3
|
3
24114-54J00-000 BEARING,INPUT SHAFT |
24114-54J00-000 |
US $139.84 |
||
|
4
|
4
24115-54J00-210 CIRCLIP,T:2.10 |
24115-54J00-210 |
US $4.20 |
||
|
4
|
4
24115-54J00-215
CIRCLIP,T:2.15
|
24115-54J00-215 |
— | ||
|
4
|
4
24115-54J00-220
CIRCLIP,T:2.20
|
24115-54J00-220 |
— | ||
|
4
|
4
24115-54J00-225
CIRCLIP,T:2.25
|
24115-54J00-225 |
— | ||
|
4
|
4
24115-54J00-230
CIRCLIP,T:2.30
|
24115-54J00-230 |
— | ||
|
4
|
4
24115-54J00-235
CIRCLIP,T:2.35
|
24115-54J00-235 |
— | ||
|
4
|
4
24115-54J00-240
CIRCLIP,T:2.40
|
24115-54J00-240 |
— | ||
|
5
|
5
24116-54J00-241 CIRCLIP,T:2.41 |
24116-54J00-241 |
US $4.20 |
||
|
6
|
6
24121-54J00-000
SHAFT,T/M MAIN
|
24121-54J00-000 |
— | ||
|
7
|
7
24125-54J00-000 BEARING,MAIN SHAFT |
24125-54J00-000 |
US $97.15 |
||
|
8
|
8
24126-54J00-165
C-RING,MAIN SHAFT BRG(GREEN)
|
24126-54J00-165 |
— | ||
|
9
|
9
24127-54J00-230
CIRCLIP,T:2.30
|
24127-54J00-230 |
— | ||
|
9
|
9
24127-54J00-235 CIRCLIP,T:2.35 |
24127-54J00-235 |
US $5.34 |
||
|
9
|
9
24127-54J00-240 CIRCLIP,T:2.40 |
24127-54J00-240 |
US $5.34 |
||
|
9
|
9
24127-54J00-245
CIRCLIP,T:2.45
|
24127-54J00-245 |
— | ||
|
9
|
9
24127-54J00-250
CIRCLIP,T:2.50
|
24127-54J00-250 |
— | ||
|
9
|
9
24127-54J00-255
CIRCLIP,T:2.55
|
24127-54J00-255 |
— | ||
|
9
|
9
24127-54J00-260
CIRCLIP,T:2.60
|
24127-54J00-260 |
— | ||
|
10
|
10
24128-54J00-180
CIRCLIP,T:1.80
|
24128-54J00-180 |
— | ||
|
10
|
10
24128-54J00-185 CIRCLIP,T:1.85 |
24128-54J00-185 |
US $5.34 |
||
|
10
|
10
24128-54J00-190
CIRCLIP,T:1.90
|
24128-54J00-190 |
— | ||
|
10
|
10
24128-54J00-195
CIRCLIP,T:1.95
|
24128-54J00-195 |
— | ||
|
10
|
10
24128-54J00-200
CIRCLIP,T:2.00
|
24128-54J00-200 |
— | ||
|
10
|
10
24128-54J00-205
CIRCLIP,T:2.05
|
24128-54J00-205 |
— | ||
|
10
|
10
24128-54J00-210
CIRCLIP,T:2.10
|
24128-54J00-210 |
— | ||
|
11
|
11
24129-54J00-000
PIN,LOW GR THRUST WASHER
|
24129-54J00-000 |
— | ||
|
12
|
12
24129-54J00-275 CIRCLIP,T:2.75 |
24129-54J00-275 |
US $4.20 |
||
|
12
|
12
24129-54J00-280 CIRCLIP,T:2.80 |
24129-54J00-280 |
US $4.20 |
||
|
12
|
12
24129-54J00-285
CIRCLIP,T:2.85
|
24129-54J00-285 |
— | ||
|
12
|
12
24129-54J00-290
CIRCLIP,T:2.90
|
24129-54J00-290 |
— | ||
|
12
|
12
24129-54J00-295
CIRCLIP,T:2.95
|
24129-54J00-295 |
— | ||
|
12
|
12
24129-54J00-300
CIRCLIP,T:3.00
|
24129-54J00-300 |
— | ||
|
12
|
12
24129-54J00-305
CIRCLIP,T:3.05
|
24129-54J00-305 |
— | ||
|
12
|
12
24129-54J00-310
CIRCLIP,T:3.10
|
24129-54J00-310 |
— | ||
|
12
|
12
24129-54J00-315
CIRCLIP,T:3.15
|
24129-54J00-315 |
— | ||
|
12
|
12
24129-54J00-320
CIRCLIP,T:3.20
|
24129-54J00-320 |
— | ||
|
12
|
12
24129-54J00-325
CIRCLIP,T:3.25
|
24129-54J00-325 |
— | ||
|
12
|
12
24129-54J00-330
CIRCLIP,T:3.30
|
24129-54J00-330 |
— | ||
|
13
|
13
24210-54J00-000 GEAR,MAIN SFT LOW |
24210-54J00-000 |
US $211.60 |
||
|
14
|
14
24215-54J00-000
BEARING,MAIN SFT LOW GR NDL
|
24215-54J00-000 |
— | ||
|
15
|
15
24216-54J00-000
BEARING,MAIN SFT 2ND GR NDL
|
24216-54J00-000 |
— | ||
|
16
|
16
24220-54J00-000 GEAR,MAIN SFT 2ND |
24220-54J00-000 |
US $198.72 |
||
|
17
|
17
24230-54J00-000 GEAR,MAIN SFT 3RD |
24230-54J00-000 |
US $196.88 |
||
|
18
|
18
24235-54J00-000 BEARING,MAIN SFT 3RD GR NDL |
24235-54J00-000 |
US $28.89 |
||
|
19
|
19
24251-54J00-000
Ger, 5th
|
24251-54J00-000 |
— | ||
| replacement | |||||
|
19
|
19
24200-54810-000
GEAR SET,MAIN&COUNTER 5TH
|
24200-54810-000 |
— | ||
|
19
|
19
24251-54J01-000
GEAR,MAIN SFT 5TH
JSAFTB83V00201221~ |
24251-54J01-000 |
— | ||
|
20
|
20
24255-54J00-000 WASHER,LOW GEAR THRUST |
24255-54J00-000 |
US $10.49 |
||
|
21
|
21
24352-54J00-000
SPACER,LOW GEAR NEEDLE
|
24352-54J00-000 |
— | ||
|
22
|
22
24129-54J00-000
PIN,LOW GR THRUST WASHER
|
24129-54J00-000 |
— | ||
|
23
|
23
24132-68D50-210 CIRCLIP,COUNTER SFT FR,T2.10 |
24132-68D50-210 |
US $2.83 |
||
|
23
|
23
24132-68D50-215
CIRCLIP,COUNTER SFT FR,T2.15
|
24132-68D50-215 |
— | ||
|
23
|
23
24132-68D50-220 CIRCLIP,COUNTER SFT FR,T2.20 |
24132-68D50-220 |
US $2.83 |
||
|
23
|
23
24132-68D50-225
CIRCLIP,COUNTER SFT FR,T2.25
|
24132-68D50-225 |
— | ||
|
23
|
23
24132-68D50-230 CIRCLIP,COUNTER SFT FR,T2.30 |
24132-68D50-230 |
US $2.83 |
||
|
23
|
23
24132-68D50-235
CIRCLIP,COUNTER SFT FR,T2.35
|
24132-68D50-235 |
— | ||
|
24
|
24
24133-54J00-285
CIRCLIP,T:2.85
|
24133-54J00-285 |
— | ||
|
24
|
24
24133-54J00-290
CIRCLIP,T:2.90
|
24133-54J00-290 |
— | ||
|
24
|
24
24133-54J00-295 CIRCLIP,T:2.95 |
24133-54J00-295 |
US $4.20 |
||
|
24
|
24
24133-54J00-300
CIRCLIP,T:3.00
|
24133-54J00-300 |
— | ||
|
24
|
24
24133-54J00-305
CIRCLIP,T:3.05
|
24133-54J00-305 |
— | ||
|
24
|
24
24133-54J00-310
CIRCLIP,T:3.10
|
24133-54J00-310 |
— | ||
|
24
|
24
24133-54J00-315
CIRCLIP,T:3.15
|
24133-54J00-315 |
— | ||
|
25
|
25
24134-54J00-107 CIRCLIP,T:1.07 |
24134-54J00-107 |
US $3.31 |
||
|
26
|
26
24135-54J00-000 BEARING,COUNTERSHAFT FR |
24135-54J00-000 |
US $125.49 |
||
|
27
|
27
24136-54J00-000 BEARING,COUNTERSHAFT CTR |
24136-54J00-000 |
US $104.88 |
||
|
28
|
28
24255-54J20-000
Washer, 5th gr thrust
|
24255-54J20-000 |
— | ||
| replacement | |||||
|
28
|
28
24255-54J21-000
WASHER,5TH GEAR THRUST
|
24255-54J21-000 |
— | ||
|
29
|
29
24351-54J00-000
Gear, counter shaft 5th
|
24351-54J00-000 |
— | ||
| replacement | |||||
|
29
|
29
24200-54810-000
GEAR SET,MAIN&COUNTER 5TH
|
24200-54810-000 |
— | ||
|
29
|
29
24351-54J01-000
GEAR,CTSHFT 5TH
JSAFTB83V00201221~ |
24351-54J01-000 |
— | ||
|
30
|
30
24354-54J00-000
BEARING,CTSHFT 5TH GR NDL
|
24354-54J00-000 |
— | ||
|
31
|
31
24727-54J00-000 DOG,COUNTER SHAFT 5TH GEAR |
24727-54J00-000 |
US $87.22 |
||
|
32
|
32
24343-54J00-000 CIRCLIP,5TH SPEED SYNC SPRG |
24343-54J00-000 |
US $3.97 |
||
|
33
|
33
24411-54J00-000 HUB,LOW SPEED SYNC |
24411-54J00-000 |
US $128.06 |
||
|
34
|
34
24412-54J00-000 HUB,HIGH SPEED SYNC |
24412-54J00-000 |
US $87.22 |
||
|
35
|
35
24421-54J00-000 SLEEVE,LOW SPEED SYNC |
24421-54J00-000 |
US $93.47 |
||
|
36
|
36
24422-54J00-000 SLEEVE,HIGH SPEED SYNC |
24422-54J00-000 |
US $87.22 |
||
|
37
|
37
24423-54J00-000 SLEEVE,5TH SPEED SYNC |
24423-54J00-000 |
US $99.36 |
||
|
38
|
38
24430-54J00-000 RING ASSY,SYNC LOW SPEED |
24430-54J00-000 |
US $128.06 |
||
|
39
|
39
24430-54J20-000 RING ASSY,SYNC 2ND SPEED |
24430-54J20-000 |
US $134.69 |
||
|
40
|
40
24430-54J40-000 RING ASSY,SYNC 3RD SPEED |
24430-54J40-000 |
US $121.44 |
||
|
41
|
41
24432-54J00-000 RING,4TH SPEED |
24432-54J00-000 |
US $76.54 |
||
|
42
|
42
24471-54J00-000 KEY,LOW SPEED SYNC |
24471-54J00-000 |
from US $5.83 |
||
|
43
|
43
24471-68D50-000 KEY,HIGH SPEED SYNC |
24471-68D50-000 |
US $4.75 |
||
|
44
|
44
24475-54J00-000 RING,SYNC 5TH SPEED |
24475-54J00-000 |
US $84.64 |
||
|
45
|
45
24473-54J00-000
KEY,5TH SPEED SYNC
|
24473-54J00-000 |
— | ||
|
46
|
46
24483-54J00-000
SPRING,5TH SPEED SYNC KEY
|
24483-54J00-000 |
— | ||
|
47
|
47
24483-54J20-000 SPRING,5TH SPEED SYNC KEY |
24483-54J20-000 |
US $14.32 |
||
|
48
|
48
24481-54J00-000 SPRING,HIGH SPEED SYNC |
24481-54J00-000 |
from US $2.34 |
||
|
49
|
49
24481-54J00-000 SPRING,HIGH SPEED SYNC |
24481-54J00-000 |
from US $2.34 |
||
|
50
|
50
24551-54J00-000
SHAFT,T/M REVERSE GEAR
|
24551-54J00-000 |
— | ||
|
51
|
51
24561-54J00-000 GEAR,REV IDLER |
24561-54J00-000 |
US $139.84 |
||
|
52
|
52
24671-54J00-000
GEAR,CTSHFT REV
|
24671-54J00-000 |
— | ||
