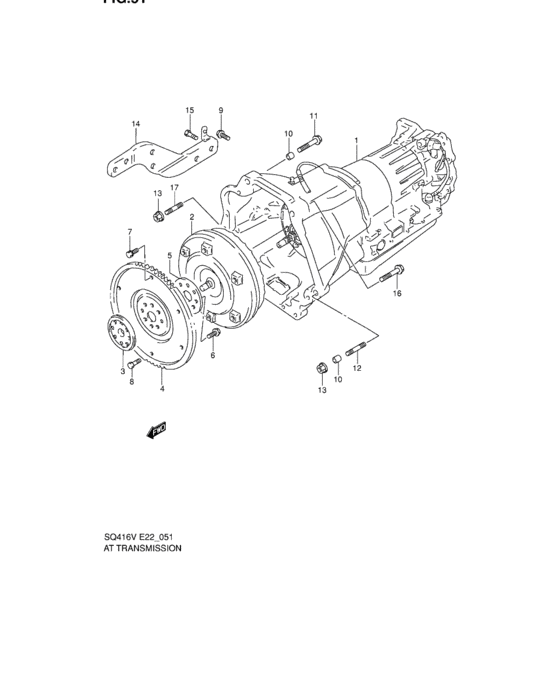

Automatic transmission (AT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21000-66DV0-000
Transmission assy, automatic
SQ416V |
21000-66DV0-000 |
— | ||
| replacements | |||||
|
1
|
1
21000-66DV2-REM
Automatic trans. assy.
SQ416V |
21000-66DV2-REM |
— | ||
|
1
|
1
21000-66DV4-000
T/m assy,automatic
SQ416V |
21000-66DV4-000 |
— | ||
|
1
|
1
21000-65D50-000
Transmission assy, automatic
SQ420V |
21000-65D50-000 |
— | ||
|
2
|
2
22700-77EA0-000
CONVERTER,TORQUE
SQ416V |
22700-77EA0-000 |
— | ||
| replacement | |||||
|
2
|
2
22700-77EB1-000
コンバータ,トルク
SQ416V |
22700-77EB1-000 |
— | ||
|
2
|
2
22700-77ED0-000
Converter comp,torque
SQ420V |
22700-77ED0-000 |
— | ||
|
3
|
3
22611-61A02-000
FLANGE,T/C DRIVE PLATE FR
SQ416V |
22611-61A02-000 |
— | ||
|
3
|
3
22611-85FA0-000 FLANGE,T/C DRIVE PLATE FRSQ420V |
22611-85FA0-000 |
US $31.20 |
||
|
4
|
4
22620-57B00-000
PLATE,TC DRIVE
SQ416V |
22620-57B00-000 |
— | ||
|
4
|
4
22620-77EB0-000
プレート,ドライブ
SQ420V |
22620-77EB0-000 |
— | ||
| replacement | |||||
|
4
|
4
22620-77EB1-000 PLATE,TC DRIVESQ420V |
22620-77EB1-000 |
from US $161.01 |
||
|
5
|
5
22631-61A00-000 FLANGE,T/C DRIVE PLATE RRSQ416V |
22631-61A00-000 |
US $23.20 |
||
|
5
|
5
22631-85FA0-000 FLANGE,T/C DRIVE PLATE RRSQ420V |
22631-85FA0-000 |
US $25.60 |
||
|
6
|
6
09103-10200-000
ボルト,10X18.5
SQ416V |
09103-10200-000 |
— | ||
| replacements | |||||
|
6
|
6
09100-10275-000 BOLT(10X18.5)SQ416V |
09100-10275-000 |
US $1.44 |
||
|
6
|
6
09103-10305-000 BOLT(10X18.5)SQ416V |
09103-10305-000 |
US $22.40 |
||
|
6
|
6
09103-10282-000 BOLT(10X18.5)SQ420V |
09103-10282-000 |
US $2.08 |
||
|
7
|
7
09103-10286-000 BOLT(10X12)SQ416V |
09103-10286-000 |
from US $2.09 |
||
|
8
|
8
22791-65D10-000
ボルト,トルクコンバータ,10X12
|
22791-65D10-000 |
— | ||
| replacement | |||||
|
8
|
8
09103-10340-000 BOLT(10X12) |
09103-10340-000 |
US $15.10 |
||
|
9
|
9
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
9
|
9
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
|
10
|
10
09206-15001-000 PIN(12.4X15X17) |
09206-15001-000 |
US $1.92 |
||
|
11
|
11
01550-12753-000
ボルト
|
01550-12753-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-1275A-000 BOLT |
01550-1275A-000 |
US $1.92 |
||
|
12
|
12
09108-12007-000
Bolt,stud
|
09108-12007-000 |
— | ||
| replacement | |||||
|
12
|
12
09108-12012-000 BOLT,STUD |
09108-12012-000 |
from US $2.50 |
||
|
13
|
13
08316-10123-000
Nut
|
08316-10123-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-1012A-000 NUT |
08316-1012A-000 |
from US $0.96 |
||
|
14
|
14
24790-56B10-000 STIFFENER,CASE,RSQ416V |
24790-56B10-000 |
US $56.80 |
||
|
14
|
14
24790-77EA0-000 STIFFENER,CASE,RSQ420V |
24790-77EA0-000 |
US $28.70 |
||
|
15
|
15
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
15
|
15
01550-1020A-000 BOLTBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
16
|
16
01550-12653-000
ボルト
|
01550-12653-000 |
— | ||
| replacement | |||||
|
16
|
16
01550-1265B-000 Bolt |
01550-1265B-000 |
US $1.76 |
||
|
17
|
17
09108-12006-000 BOLT,STUD |
09108-12006-000 |
US $28 |
||
