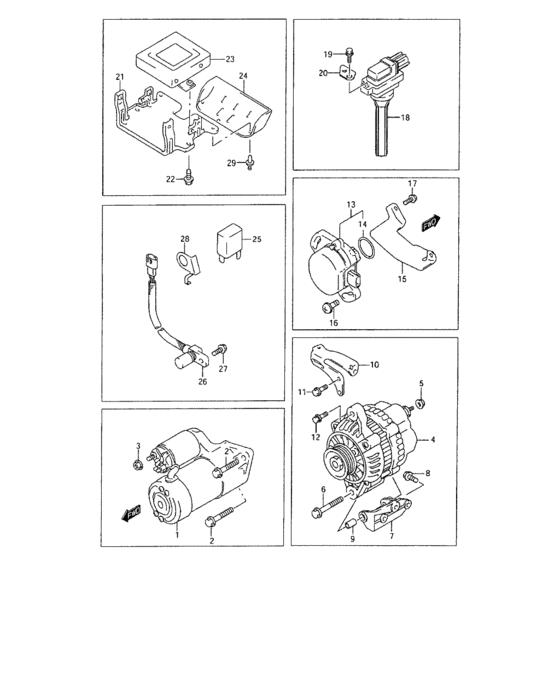

Engine electrical (ENGINE ELECTRICAL) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- 4WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-67DA0-000
Motor assy, starter
|
31100-67DA0-000 |
— | ||
|
2
|
2
01550-10503-000
Bolt
|
01550-10503-000 |
— | ||
| replacement | |||||
|
2
|
2
01550-1050B-000 BOLT |
01550-1050B-000 |
US $1.22 |
||
|
3
|
3
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
3
|
3
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
4
|
4
31400-67D01-000
Generator assy
|
31400-67D01-000 |
— | ||
|
5
|
5
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
6
|
6
01550-10853-000
Bolt
|
01550-10853-000 |
— | ||
| replacement | |||||
|
6
|
6
01550-1085A-000 BOLT |
01550-1085A-000 |
US $1.76 |
||
|
7
|
7
11551-77E00-000 BRACKET,GENERATOR |
11551-77E00-000 |
US $92.80 |
||
|
8
|
8
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
8
|
8
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
9
|
9
11555-60G00-000
Bush, generator
|
11555-60G00-000 |
— | ||
| replacement | |||||
|
9
|
9
11555-60G01-000 BUSH |
11555-60G01-000 |
US $3.68 |
||
|
10
|
10
11560-67D00-000
アーム,ジェネレータアジャスティング
|
11560-67D00-000 |
— | ||
| replacement | |||||
|
10
|
10
11560-52D00-000 ARM,GENERATOR ADJUST |
11560-52D00-000 |
US $25.09 |
||
|
11
|
11
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-1020A-000 BOLTBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
12
|
12
09118-08107-000 BOLT(8X25) |
09118-08107-000 |
US $1.12 |
||
|
13
|
13
33100-77E10-000 SENSOR ASSY,CRANK ANGLE |
33100-77E10-000 |
US $1,223.60 |
||
|
14
|
14
33278-77E10-000 O-RING |
33278-77E10-000 |
from US $3.04 |
||
|
15
|
15
33328-77E00-000
カバー,クランクアングルセンサ
|
33328-77E00-000 |
— | ||
| replacement | |||||
|
15
|
15
33328-77E01-000 COVER,CA SENSOR |
33328-77E01-000 |
US $5.74 |
||
|
16
|
16
09138-08003-000 SCREW(8X30) |
09138-08003-000 |
from US $1.49 |
||
|
17
|
17
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
17
|
17
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
18
|
18
33410-77E21-000
コイルアッシ,イグニツシヨン
|
33410-77E21-000 |
— | ||
| replacement | |||||
|
18
|
18
33410-77E22-000 COIL ASSY,IGNITION |
33410-77E22-000 |
from US $160.74 |
||
|
19
|
19
01580-05203-000
ボルト
|
01580-05203-000 |
— | ||
| replacement | |||||
|
19
|
19
01580-0520B-000 BOLT |
01580-0520B-000 |
from US $1.24 |
||
|
20
|
20
36995-77E90-000 BRACKET,ENG HARN |
36995-77E90-000 |
US $2.83 |
||
|
21
|
21
33924-65D20-000 BRACKET,EPI CONT |
33924-65D20-000 |
US $17.88 |
||
|
22
|
22
02162-06103-000
Bolt
|
02162-06103-000 |
— | ||
| replacement | |||||
|
22
|
22
02162-0610A-000 SCREW |
02162-0610A-000 |
from US $0.64 |
||
|
23
|
23
33921-67DH0-000
Controller,fuel injection
MT |
33921-67DH0-000 |
— | ||
| replacement | |||||
|
23
|
23
33921-67DH2-000
CONTROLLER ASSY,EPI
MT |
33921-67DH2-000 |
— | ||
|
24
|
24
33924-65D00-000 COVER,EPI CONT |
33924-65D00-000 |
US $12.59 |
||
|
25
|
25
38860-50G10-000
Relay, horn
|
38860-50G10-000 |
— | ||
| replacement | |||||
|
25
|
25
38860-76F01-000 RELAY ASSYRelay, starting motor |
38860-76F01-000 |
from US $24.91 |
||
|
26
|
26
33220-77E00-000 SENSOR ASSY,POSITION |
33220-77E00-000 |
from US $109.76 |
||
|
27
|
27
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
27
|
27
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
27
|
27
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
28
|
28
33221-52D01-000
Bracket, crank position senso
|
33221-52D01-000 |
— | ||
| replacement | |||||
|
28
|
28
33221-52D02-000
BRACKET,CKP SENSOR
|
33221-52D02-000 |
— | ||
|
29
|
29
09409-07332-000 CLIP |
09409-07332-000 |
from US $1.26 |
||
