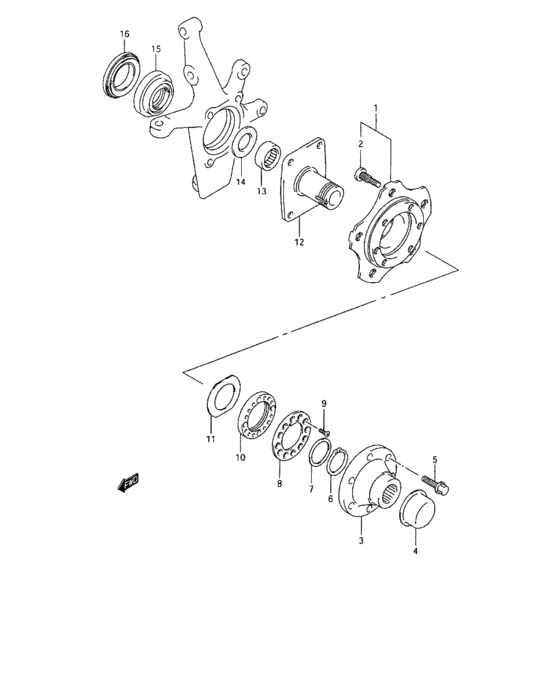

Front wheel hub (4WD) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- 4WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43401-65D00-000 HUB ASSY,FR WHL |
43401-65D00-000 |
US $292.56 |
||
|
2
|
2
09119-12012-000 BOLT(12X38) |
09119-12012-000 |
US $2.72 |
||
|
3
|
3
43471-80001-000 FLANGE,FR AXLE SHAFT DRIVE |
43471-80001-000 |
from US $75.15 |
||
|
4
|
4
43241-80001-000 CAP,FR AXLE |
43241-80001-000 |
from US $5.76 |
||
|
5
|
5
43811-65D00-000 BOLT,DRIVE FLANGE |
43811-65D00-000 |
US $7.04 |
||
|
6
|
6
09380-26004-000 CIRCLIP |
09380-26004-000 |
from US $1.92 |
||
| replacement | |||||
|
6
|
6
94412-31J01-YMC Cowling,body Lower |
94412-31J01-YMC |
US $172.48 |
||
|
7
|
7
44182-60A01-000 WASHER,FR SPINDLE THRUST |
44182-60A01-000 |
US $2.56 |
||
|
8
|
8
43466-60A00-000 WASHER,FR WHEEL BRG LOCK |
43466-60A00-000 |
from US $13.16 |
||
|
9
|
9
02122-04083-000
スクリュ
|
02122-04083-000 |
— | ||
| replacement | |||||
|
9
|
9
02122-0408A-000 SCREW |
02122-0408A-000 |
from US $0.76 |
||
|
10
|
10
43461-60A01-000 NUT,FR WHL BRG LOCK |
43461-60A01-000 |
from US $34.76 |
||
|
11
|
11
43465-60A00-000 WASHER,FR WHEEL BRG |
43465-60A00-000 |
from US $1.76 |
||
|
12
|
12
43441-60A20-000 SPINDLE,FR WHEEL |
43441-60A20-000 |
US $222.40 |
||
|
13
|
13
09263-28030-000 BEARING(28X35X16) |
09263-28030-000 |
from US $15.73 |
||
|
14
|
14
44183-65D00-000
WASHER,FR SPINDLE INR
|
44183-65D00-000 |
— | ||
|
15
|
15
09289-48004-000 SEAL,OIL(48X70X17) |
09289-48004-000 |
from US $14.94 |
||
|
16
|
16
09286-64001-000 SEAL,OIL(64X76X7) |
09286-64001-000 |
US $19.20 |
||
