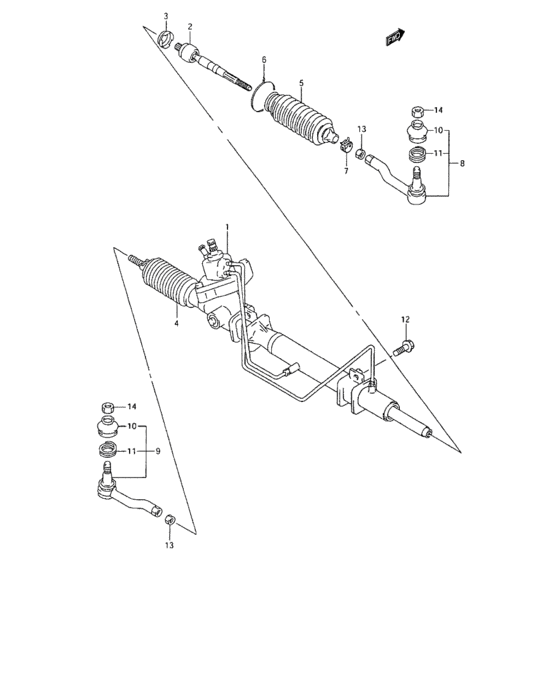

Steering unit (STEERING UNIT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- 4WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48580-67D52-000 GEAR,POWER STRG |
48580-67D52-000 |
US $1,561.76 |
||
|
2
|
2
48830-67D00-000
TIE-ROD,STEERING
|
48830-67D00-000 |
— | ||
|
3
|
3
48841-67D00-000
Washer,steering tie rod
|
48841-67D00-000 |
— | ||
|
4
|
4
48571-67D00-000
Boot,steering pinion side
|
48571-67D00-000 |
— | ||
|
5
|
5
48572-67D00-000
Boot,strg,rack side
|
48572-67D00-000 |
— | ||
|
6
|
6
48575-67D00-000
Wire,rack boot
|
48575-67D00-000 |
— | ||
|
7
|
7
48573-67D00-000
CLIP,RACK BOOT
|
48573-67D00-000 |
— | ||
|
8
|
8
48810-67D00-000
END,STEERING TIE-ROD,R
|
48810-67D00-000 |
— | ||
|
9
|
9
48820-67D00-000 END,STEERING TIE-ROD,L |
48820-67D00-000 |
US $259.44 |
||
|
10
|
10
48806-80000-000
BOOT SET
|
48806-80000-000 |
— | ||
| replacements | |||||
|
10
|
10
48806-80001-000
Boot Set
|
48806-80001-000 |
— | ||
|
10
|
10
48800-80810-000 Boot Set |
48800-80810-000 |
US $32 |
||
|
11
|
11
09401-27402-000 CLIP |
09401-27402-000 |
US $1.28 |
||
|
12
|
12
01550-10253-000
Bolt
|
01550-10253-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-1025B-000 BoltBolt, rr swgarm bracket, l |
01550-1025B-000 |
from US $5.59 |
||
|
12
|
12
01550-1025A-000 BOLTBolt, drive gear |
01550-1025A-000 |
from US $1.06 |
||
|
13
|
13
08310-00143-000
Nut
|
08310-00143-000 |
— | ||
| replacement | |||||
|
13
|
13
08310-0014A-000 NUT |
08310-0014A-000 |
from US $0.91 |
||
|
14
|
14
09159-12052-000 NUT |
09159-12052-000 |
US $1.44 |
||
