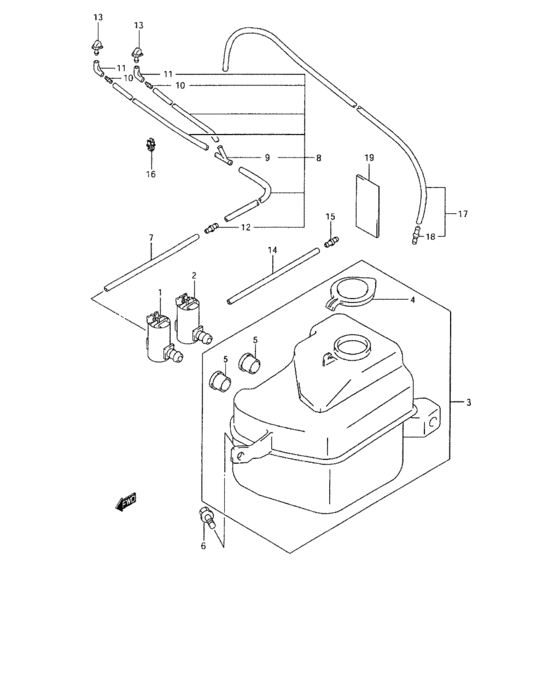

Window washer (WINDOW WASHER) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- 4WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38410-65D00-000 PUMP ASSY,WASHER FRONTFRONT WASHER |
38410-65D00-000 |
US $115.92 |
||
|
2
|
2
38410-66113-000 PUMP ASSY,WASHERPump assy, washer REAR WASHER |
38410-66113-000 |
from US $59.20 |
||
|
3
|
3
38450-67D00-000
Tank assy, washer
|
38450-67D00-000 |
— | ||
|
4
|
4
38452-65D00-000 CAP,WASHER TANK |
38452-65D00-000 |
from US $1.92 |
||
|
5
|
5
38453-75000-000 GROMMET |
38453-75000-000 |
US $1.60 |
||
|
6
|
6
09136-06133-000 BOLT(6X16)Screw |
09136-06133-000 |
US $12.50 |
||
|
7
|
7
38459-50J00-000 HOSE,WASHER L:810 |
38459-50J00-000 |
US $14.40 |
||
|
8
|
8
38832-67D10-000
Hose assy, washer
|
38832-67D10-000 |
— | ||
|
9
|
9
38496-71311-000 CONNECTOR,THREE WAY |
38496-71311-000 |
US $4.16 |
||
|
10
|
10
38833-79501-000 VALVE,WASHER HOSE |
38833-79501-000 |
from US $3.17 |
||
|
11
|
11
38454-71B10-000 JOINT,ELBOW |
38454-71B10-000 |
from US $3.94 |
||
|
12
|
12
38496-56B00-000 CONNECTOR |
38496-56B00-000 |
from US $1.60 |
||
|
13
|
13
38480-67D50-000
Nozzle, washer
|
38480-67D50-000 |
— | ||
|
14
|
14
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) |
38491-61A00-000 |
US $5.12 |
||
|
15
|
15
38496-56B00-000 CONNECTOR |
38496-56B00-000 |
from US $1.60 |
||
|
16
|
16
09403-07307-5PK CLAMP |
09403-07307-5PK |
from US $1.62 |
||
|
17
|
17
38490-67D00-000
Hose assy, rr washer
|
38490-67D00-000 |
— | ||
|
18
|
18
38496-56B00-000 CONNECTOR |
38496-56B00-000 |
from US $1.60 |
||
|
19
|
19
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
