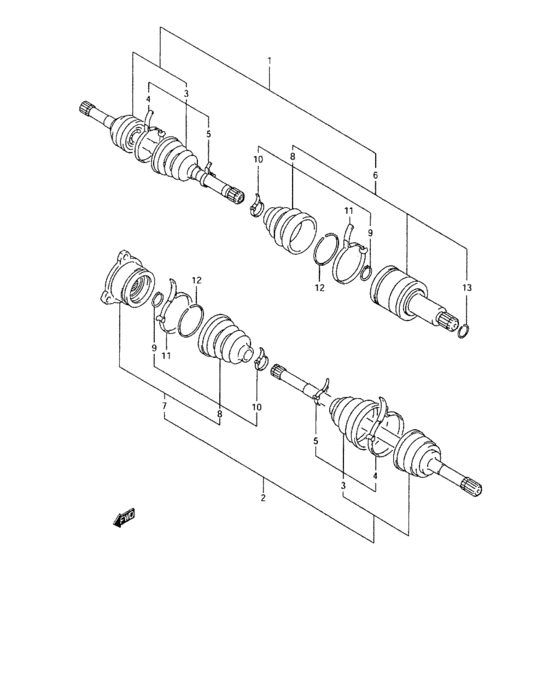

Front drive shaft (MT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44101-67D50-000
Shaft assy,front drive,r
|
44101-67D50-000 |
— | ||
|
2
|
2
44102-67D50-000
SHAFT ASSY,FRONT DRIVE,L
|
44102-67D50-000 |
— | ||
|
3
|
3
44118-67D50-000
Boot set, wheel side
|
44118-67D50-000 |
— | ||
| replacement | |||||
|
3
|
3
44118-67D02-000 BOOT SET,WHEEL SIDE |
44118-67D02-000 |
US $106.72 |
||
|
4
|
4
44121-78E00-000 CLAMP,BOOT |
44121-78E00-000 |
US $11.36 |
||
|
5
|
5
44124-78E00-000 CLAMP,BOOT |
44124-78E00-000 |
US $10.52 |
||
|
6
|
6
44114-67D50-000
Joint assy, diff side rh
|
44114-67D50-000 |
— | ||
| replacement | |||||
|
6
|
6
44114-67D02-000 JOINT ASSY,DIFF SIDE,R |
44114-67D02-000 |
US $457.60 |
||
|
7
|
7
44115-67D50-000
Joint assy, diff side lh
|
44115-67D50-000 |
— | ||
| replacement | |||||
|
7
|
7
44115-67D00-000 JOINT ASSY,DIFF SIDE,L |
44115-67D00-000 |
US $457.60 |
||
|
8
|
8
44119-67D50-000
Boot set, diff side
|
44119-67D50-000 |
— | ||
| replacement | |||||
|
8
|
8
44119-59JA0-000 BOOT SET,DIFF SIDE |
44119-59JA0-000 |
from US $83.72 |
||
|
9
|
9
44111-60A00-000 RING,SNAP |
44111-60A00-000 |
US $1.60 |
||
|
10
|
10
44124-78E00-000 CLAMP,BOOT |
44124-78E00-000 |
US $10.52 |
||
|
11
|
11
44123-78E00-000 CLAMP,BOOT |
44123-78E00-000 |
US $13.43 |
||
|
12
|
12
44112-78E00-000 CIRCLIP |
44112-78E00-000 |
US $5.26 |
||
|
13
|
13
44111-65D00-000 RING,SNAP |
44111-65D00-000 |
from US $1.60 |
||
