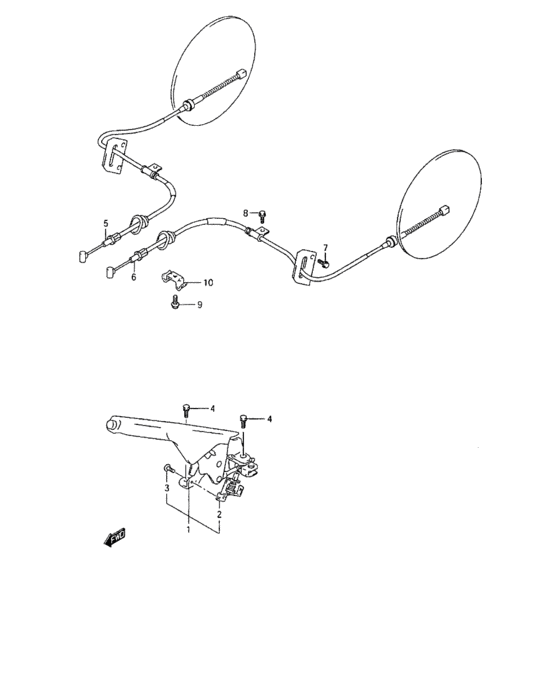

Parking brake (PARKING BRAKE) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54100-67D00-000
Lever assy,parking brake
|
54100-67D00-000 |
— | ||
|
2
|
2
37940-50G00-000
SWITCH ASSY
|
37940-50G00-000 |
— | ||
|
3
|
3
02142-04103-000
Screw 4x10
|
02142-04103-000 |
— | ||
| replacement | |||||
|
3
|
3
02142-0410A-000 SCREW |
02142-0410A-000 |
from US $0.76 |
||
|
4
|
4
01570-08163-000
Bolt
|
01570-08163-000 |
— | ||
| replacement | |||||
|
4
|
4
01570-0816A-000 BOLT |
01570-0816A-000 |
from US $0.96 |
||
|
5
|
5
54410-67D00-000
Cable, parking brake rh
|
54410-67D00-000 |
— | ||
|
6
|
6
54420-67D00-000
Cable, parking brake lh
|
54420-67D00-000 |
— | ||
|
7
|
7
09136-06134-000 BOLT(6X16) |
09136-06134-000 |
from US $1.12 |
||
|
8
|
8
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
8
|
8
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
|
9
|
9
01551-08163-000
Bolt
|
01551-08163-000 |
— | ||
| replacements | |||||
|
9
|
9
01551-0816C-000 Bolt |
01551-0816C-000 |
from US $0.96 |
||
|
9
|
9
01551-0816A-000
ボルト
|
01551-0816A-000 |
— | ||
|
10
|
10
54431-56B00-000 CLAMP,PARKING CABLE |
54431-56B00-000 |
US $4.82 |
||
