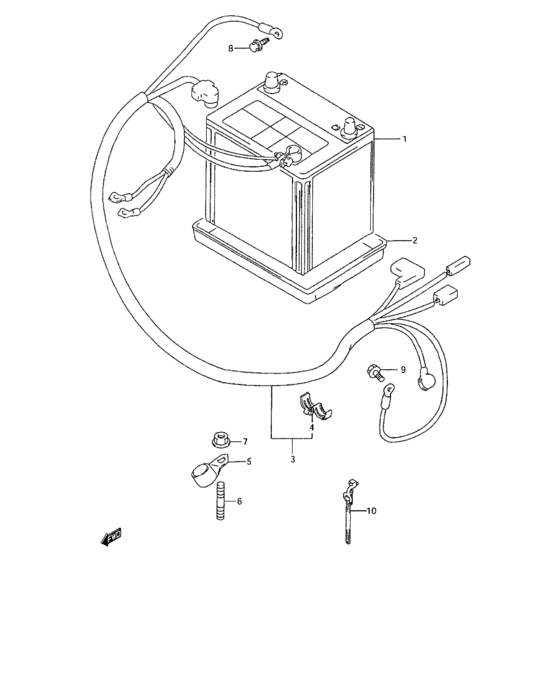

Battery (BATTERY) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- 4WD
- transmission
- AT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
33660-65D10-000
Tray, battery
|
33660-65D10-000 |
— | ||
|
3
|
3
33800-67D20-000
Cable assy, battery
|
33800-67D20-000 |
— | ||
|
4
|
4
36991-77E00-000 CLAMP,CABLE |
36991-77E00-000 |
US $3.72 |
||
|
5
|
5
36649-67D10-000
CLAMP,BTRY CABLE
|
36649-67D10-000 |
— | ||
|
6
|
6
01411-06163-000
New Genuine Part
|
01411-06163-000 |
— | ||
| replacement | |||||
|
6
|
6
01411-0616A-000 BOLT,STUD |
01411-0616A-000 |
from US $0.59 |
||
|
7
|
7
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
8
|
8
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
8
|
8
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
9
|
9
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
9
|
9
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
10
|
10
09407-12404-000 CLAMP(L:140) |
09407-12404-000 |
US $2.08 |
||
