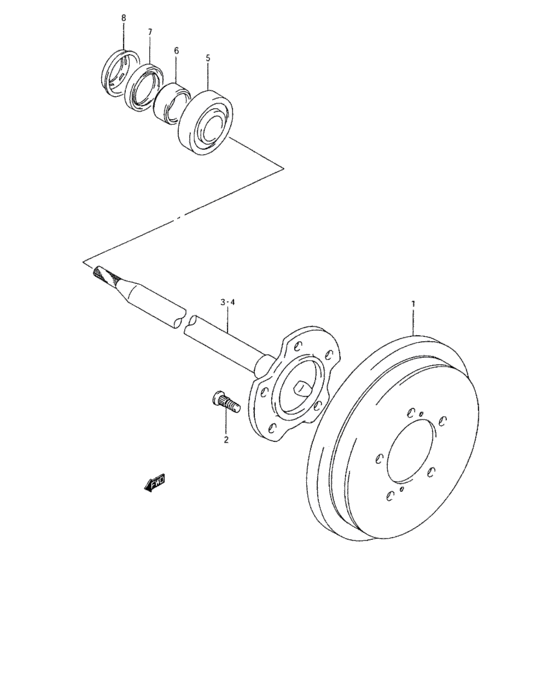

Rear axle and brake drum (AT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- 4WD
- transmission
- AT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43511-67D01-000
Drum, rear
|
43511-67D01-000 |
— | ||
| replacement | |||||
|
1
|
1
43511-65D10-000 DRUM,RR BRAKE |
43511-65D10-000 |
US $324.80 |
||
|
2
|
2
09119-12012-000 BOLT(12X38) |
09119-12012-000 |
US $2.72 |
||
|
3
|
3
44211-65DA1-000
Shaft,rear axle,r
|
44211-65DA1-000 |
— | ||
| replacement | |||||
|
3
|
3
44210-65810-000 SHAFT,REAR AXLE,R |
44210-65810-000 |
US $362.48 |
||
|
4
|
4
44221-65DA1-000
SHAFT,REAR AXLE,L
|
44221-65DA1-000 |
— | ||
| replacement | |||||
|
4
|
4
44220-65810-000 SHAFT,REAR AXLE,L |
44220-65810-000 |
US $362.48 |
||
|
5
|
5
43591-67D00-000
Bearing, rear wheel
|
43591-67D00-000 |
— | ||
| replacement | |||||
|
5
|
5
43591-65D00-000 BEARING,RR WHEEL |
43591-65D00-000 |
from US $92.54 |
||
|
6
|
6
43485-65D00-000 RING,RR WHEEL BRG RETAINER |
43485-65D00-000 |
from US $20.70 |
||
|
7
|
7
43592-67D00-000
Seal, oil inner
|
43592-67D00-000 |
— | ||
| replacement | |||||
|
7
|
7
43592-65D00-000 SEAL,RR SHAFT OIL INNER |
43592-65D00-000 |
from US $13.14 |
||
|
8
|
8
43588-65D00-000 PROTECTOR,OIL SEAL |
43588-65D00-000 |
from US $1.92 |
||
