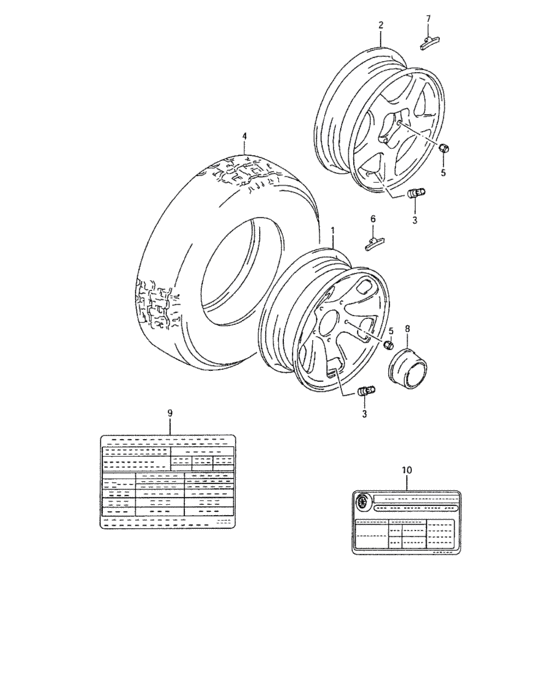

Road wheel and tire (ROAD WHEEL AND TIRE) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- 4WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43210-67D11-27S
WHEEL(16X16 1/2JJ)
STEEL WHEEL |
43210-67D11-27S |
— | ||
|
2
|
2
43210-67D41-27S
WHEEL,AL(16X6 1/2JJ)
|
43210-67D41-27S |
— | ||
|
3
|
3
43130-85010-000
バルブ,タイヤ,TR413(SCHRADER)
|
43130-85010-000 |
— | ||
| replacement | |||||
|
3
|
3
43130-78030-000 VALVE,TIRE TR413 BSValve assy, wheel rim |
43130-78030-000 |
US $12.50 |
||
|
4
|
4
43110-67D30-000
TIRE(P215/65R16)
|
43110-67D30-000 |
— | ||
|
5
|
5
43281-60A00-000
NUT,WHEEL
|
43281-60A00-000 |
— | ||
|
6
|
6
43222-73H00-000 WEIGHT,WHEEL BALANCE 10GW/STEEL WHEEL |
43222-73H00-000 |
US $2.72 |
||
|
6
|
6
43224-73H00-000 WEIGHT,WHEEL BALANCE 20GW/STEEL WHEEL |
43224-73H00-000 |
US $3.02 |
||
|
6
|
6
43226-73H00-000 WEIGHT,WHEEL BALANCE 30GW/STEEL WHEEL |
43226-73H00-000 |
US $3.53 |
||
|
6
|
6
43228-73H00-000 WEIGHT,WHEEL BALANCE 40GW/STEEL WHEEL |
43228-73H00-000 |
US $3.97 |
||
|
7
|
7
43232-60A30-000 WEIGHT,WHEEL BALANCE 10GW/ALUMI WHEEL |
43232-60A30-000 |
US $4.45 |
||
|
7
|
7
43234-60A30-000 WEIGHT,WHEEL BALANCE 20GW/ALUMI WHEEL |
43234-60A30-000 |
US $5.81 |
||
|
7
|
7
43221-60E50-000 WEIGHT,WHEEL BALANCE 30GW/ALUMI WHEEL |
43221-60E50-000 |
US $6.15 |
||
|
7
|
7
43238-60A30-000 WEIGHT,WHEEL BALANCE 40GW/ALUMI WHEEL |
43238-60A30-000 |
US $5.63 |
||
|
8
|
8
43252-67D10-5PK
Cap, wheel center
|
43252-67D10-5PK |
— | ||
|
9
|
9
79161-67D50-000
Placard, tire information
Canada |
79161-67D50-000 |
— | ||
|
10
|
10
79161-51J40-000
Placard, tire information
California |
79161-51J40-000 |
— | ||
