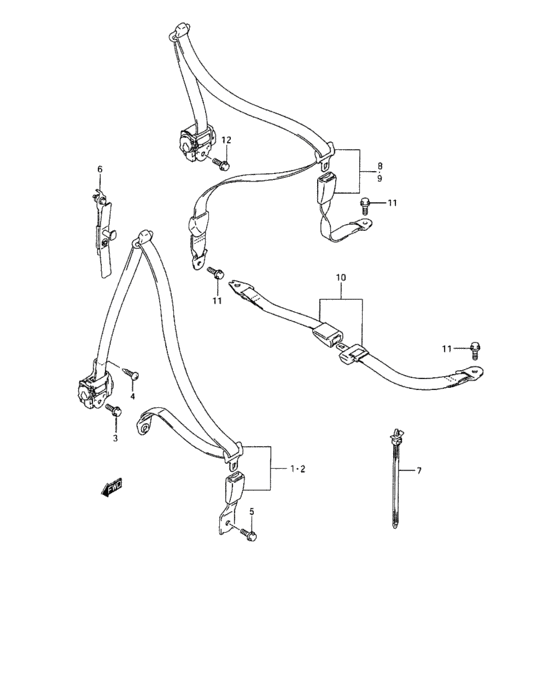

Seat belt (SEAT BELT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- 4WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84901-67D50-L8Z
Belt assy, front rh
Canada |
84901-67D50-L8Z |
— | ||
|
1
|
1
84901-67870-L8Z
Belt assy, front rh
California |
84901-67870-L8Z |
— | ||
|
2
|
2
84902-67D00-L8Z
Belt assy, front lh
Canada |
84902-67D00-L8Z |
— | ||
|
2
|
2
84902-67860-L8Z
Belt assy, front lh
California |
84902-67860-L8Z |
— | ||
|
3
|
3
09103-11001-000 BOLT(7/16X22)Bolt, fr belt buckle |
09103-11001-000 |
US $18 |
||
|
4
|
4
03141-06103-000
Screw
|
03141-06103-000 |
— | ||
| replacement | |||||
|
4
|
4
03141-0610A-000 SCREW |
03141-0610A-000 |
US $0.80 |
||
|
5
|
5
09117-11001-000
Bolt (11x20)
|
09117-11001-000 |
— | ||
| replacement | |||||
|
5
|
5
09117-11002-000 BOLT(11X20) |
09117-11002-000 |
US $20.20 |
||
|
6
|
6
84990-65DA0-6GS ADJUSTER ASSY,FR SHLDR |
84990-65DA0-6GS |
US $71.76 |
||
|
7
|
7
09403-08406-000 CLAMP |
09403-08406-000 |
from US $1.44 |
||
|
8
|
8
84904-67D10-L8Z
Belt assy, rear seat rh (gray
Canada |
84904-67D10-L8Z |
— | ||
|
8
|
8
84904-67820-L8Z
Belt assy, rear seat rh (gray
California |
84904-67820-L8Z |
— | ||
|
9
|
9
84905-67D10-L8Z
Belt assy, rear seat lh (gray
Canada |
84905-67D10-L8Z |
— | ||
|
9
|
9
84905-67820-L8Z
Belt assy, rear seat lh (gray
California |
84905-67820-L8Z |
— | ||
|
10
|
10
84906-67D10-GC5
Belt assy, rear seat center
(GRAY),Canada |
84906-67D10-GC5 |
— | ||
|
10
|
10
84906-67821-GC5
Belt assy, rear seat center
(GRAY),California |
84906-67821-GC5 |
— | ||
|
11
|
11
09103-11001-000 BOLT(7/16X22)Bolt, fr belt buckle |
09103-11001-000 |
US $18 |
||
|
12
|
12
87471-67DA0-000
Bolt
|
87471-67DA0-000 |
— | ||
|
13
|
13
84900-67810-000
Seat belt extender 9 inch
(L:230),NOT ILLUSTRATED,SEE NOTE |
84900-67810-000 |
— | ||
| replacement | |||||
|
13
|
13
84900-67870-000 BELT ASSY,RR EXTENDER 230(L:230),NOT ILLUSTRATED,SEE NOTE |
84900-67870-000 |
US $68.08 |
||
|
13
|
13
84900-67820-000
Seat belt extender 15 inch
(L:380),NOT ILLUSTRATED,SEE NOTE |
84900-67820-000 |
— | ||
| replacement | |||||
|
13
|
13
84900-67880-000 BELT ASSY,RR EXTENDER 380(L:380),NOT ILLUSTRATED,SEE NOTE |
84900-67880-000 |
US $75.07 |
||
