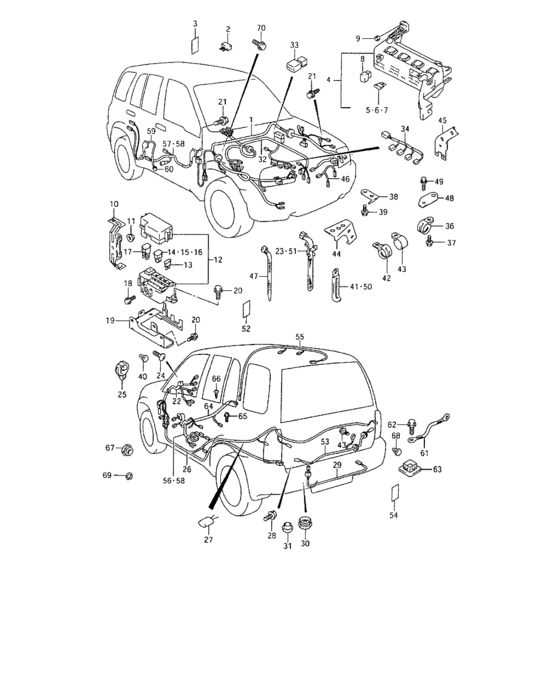

Wiring harness (WIRING HARNESS) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- 4WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36907-67D70-000
Harness assy, wiring main
AT:Canada |
36907-67D70-000 |
— | ||
|
1
|
1
36907-67DE0-000
Harness assy, wiring main
AT:California |
36907-67DE0-000 |
— | ||
|
2
|
2
33459-61B10-000 DIODE |
33459-61B10-000 |
US $15.57 |
||
|
3
|
3
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
4
|
4
36710-67D00-000
BOX ASSY,JUNCTION
|
36710-67D00-000 |
— | ||
|
5
|
5
09481-10501-000 FUSE(10A) |
09481-10501-000 |
from US $1.06 |
||
|
6
|
6
09481-15501-000 FUSE(15A) |
09481-15501-000 |
from US $3.25 |
||
|
7
|
7
09481-20501-000 FUSE(20A) |
09481-20501-000 |
from US $2.28 |
||
|
8
|
8
09481-30401-000 FUSE(30A) |
09481-30401-000 |
from US $5.96 |
||
|
9
|
9
09159-06076-000 NUT |
09159-06076-000 |
from US $1.28 |
||
|
10
|
10
36614-67D00-000
Bracket,main harness connector
|
36614-67D00-000 |
— | ||
|
11
|
11
09159-06076-000 NUT |
09159-06076-000 |
from US $1.28 |
||
|
12
|
12
36740-65D00-000 BOX ASSY,MAIN FUSE |
36740-65D00-000 |
US $138.40 |
||
|
13
|
13
09481-15101-000 FUSE(15A)Fuse (15a) |
09481-15101-000 |
from US $1.28 |
||
|
14
|
14
09481-30203-000 FUSE(30A) |
09481-30203-000 |
US $13.92 |
||
|
15
|
15
09481-50203-000 FUSE(50A) |
09481-50203-000 |
US $15.36 |
||
|
16
|
16
09481-60202-000 FUSE(60A) |
09481-60202-000 |
from US $5.47 |
||
|
17
|
17
09481-80301-000 FUSE(80A) |
09481-80301-000 |
from US $5.74 |
||
|
18
|
18
09138-06040-000 BOLT(6X10) |
09138-06040-000 |
US $1.52 |
||
|
19
|
19
36737-67D00-000
Bracket, main fuse
|
36737-67D00-000 |
— | ||
| replacement | |||||
|
19
|
19
36737-65D00-000 BRACKET,MAIN FUSE |
36737-65D00-000 |
US $11.85 |
||
|
20
|
20
02162-06103-000
Bolt
|
02162-06103-000 |
— | ||
| replacement | |||||
|
20
|
20
02162-0610A-000 SCREW |
02162-0610A-000 |
from US $0.64 |
||
|
21
|
21
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
21
|
21
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
21
|
21
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
22
|
22
36602-67D70-000
Harness assy, instrument pane
Canada |
36602-67D70-000 |
— | ||
|
22
|
22
36602-67D00-000
Harness assy, instrument pane
California |
36602-67D00-000 |
— | ||
|
23
|
23
09407-12404-000 CLAMP(L:140) |
09407-12404-000 |
US $2.08 |
||
|
24
|
24
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
24
|
24
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
25
|
25
09403-35301-000 CLAMP |
09403-35301-000 |
US $14 |
||
|
26
|
26
36603-67DK0-000
Harness assy, wiring floor
Canada |
36603-67DK0-000 |
— | ||
|
26
|
26
36603-67DH0-000
Harness assy, wiring floor
California |
36603-67DH0-000 |
— | ||
|
27
|
27
36639-74F00-000 DIODE |
36639-74F00-000 |
US $20.98 |
||
|
28
|
28
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
28
|
28
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
29
|
29
36840-67D40-000
Wire, fuel
|
36840-67D40-000 |
— | ||
|
30
|
30
09250-30010-000
Grommet
|
09250-30010-000 |
— | ||
| replacement | |||||
|
30
|
30
72999-67H00-000 CAP,OD:40 |
72999-67H00-000 |
from US $4.32 |
||
|
31
|
31
09250-35003-000 CAP(OD:45)Cap, frame bridge |
09250-35003-000 |
from US $5.41 |
||
|
32
|
32
36605-67DA1-000
Harness assy, wiring engine
4WD:AT |
36605-67DA1-000 |
— | ||
|
33
|
33
33553-52E00-000 FILTER,NOISE SUPPR |
33553-52E00-000 |
US $57.76 |
||
|
34
|
34
36670-67D01-000 HARNESS ASSY,INJ |
36670-67D01-000 |
US $159.71 |
||
|
35
|
35
09404-06431-000
CLAMP(L:65)
|
09404-06431-000 |
— | ||
| replacements | |||||
|
35
|
35
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
35
|
35
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
35
|
35
09404-06038-000 Clamp(L:65) |
09404-06038-000 |
from US $2.40 |
||
|
36
|
36
36649-50F60-000 CLAMP,HARN |
36649-50F60-000 |
US $4.34 |
||
|
37
|
37
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
37
|
37
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
37
|
37
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
38
|
38
36995-77E21-000 BRACKET,ENG HARN |
36995-77E21-000 |
US $1.69 |
||
|
39
|
39
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
39
|
39
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
39
|
39
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
40
|
40
09409-07320-000 CAP |
09409-07320-000 |
US $1.28 |
||
|
41
|
41
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
|
42
|
42
36649-70E00-000
CLAMP,MAIN HARNESS
|
36649-70E00-000 |
— | ||
|
43
|
43
09403-23402-000 CLAMP |
09403-23402-000 |
US $23.90 |
||
|
44
|
44
36995-77E00-000 BRACKET,ENG HARN |
36995-77E00-000 |
US $5.74 |
||
|
45
|
45
36995-67D20-000
BRACKET,ENG HARN
|
36995-67D20-000 |
— | ||
|
46
|
46
36895-67D00-000 WIRE,OIL PRESS SW |
36895-67D00-000 |
US $23.18 |
||
|
47
|
47
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
48
|
48
36995-77E90-000 BRACKET,ENG HARN |
36995-77E90-000 |
US $2.83 |
||
|
49
|
49
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
49
|
49
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
49
|
49
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
50
|
50
09404-06433-000
CLAMP(L:80)
|
09404-06433-000 |
— | ||
| replacements | |||||
|
50
|
50
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
|
50
|
50
09404-06436-000 Clamp(L:80) |
09404-06436-000 |
from US $2.13 |
||
|
50
|
50
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
51
|
51
09407-12404-000 CLAMP(L:140) |
09407-12404-000 |
US $2.08 |
||
|
52
|
52
71881-65D01-000 PAD |
71881-65D01-000 |
US $4.05 |
||
|
53
|
53
36845-67D21-000
Wire, back door
Canada |
36845-67D21-000 |
— | ||
|
53
|
53
36845-67D01-000
Wire, back door
California |
36845-67D01-000 |
— | ||
|
54
|
54
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
55
|
55
36820-67D20-000
Wire, room lamp
|
36820-67D20-000 |
— | ||
|
56
|
56
36756-67D61-000
Wire, front door lh
California |
36756-67D61-000 |
— | ||
|
57
|
57
36757-67D00-000
Wire, front door rh
California |
36757-67D00-000 |
— | ||
|
58
|
58
36756-67D80-000
Wire, mirror door
Canada |
36756-67D80-000 |
— | ||
|
59
|
59
36751-67D00-000
Wire, rear door
California |
36751-67D00-000 |
— | ||
|
60
|
60
36754-67D00-000
Wire, rear door joint
California |
36754-67D00-000 |
— | ||
|
61
|
61
39312-77E10-000 WIRE,HORN GND |
39312-77E10-000 |
US $6.92 |
||
|
62
|
62
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
62
|
62
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
63
|
63
75411-60A00-000 CAP,TAIL MEMBER LOWER |
75411-60A00-000 |
US $2.56 |
||
|
64
|
64
36690-67D21-000
Harness assy, wiring air bag
Canada |
36690-67D21-000 |
— | ||
|
64
|
64
36690-67D11-000
Harness assy, wiring air bag
California |
36690-67D11-000 |
— | ||
|
65
|
65
09115-06003-000 BOLT(6X16) |
09115-06003-000 |
US $10.70 |
||
|
66
|
66
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
66
|
66
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
67
|
67
09250-20014-000 CAP(OD:30)Canada |
09250-20014-000 |
US $16.20 |
||
|
68
|
68
09409-07320-000 CAPCanada |
09409-07320-000 |
US $1.28 |
||
|
69
|
69
36757-65D90-000 CAP,DRCanada |
36757-65D90-000 |
US $1.55 |
||
|
70
|
70
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
70
|
70
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
70
|
70
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
