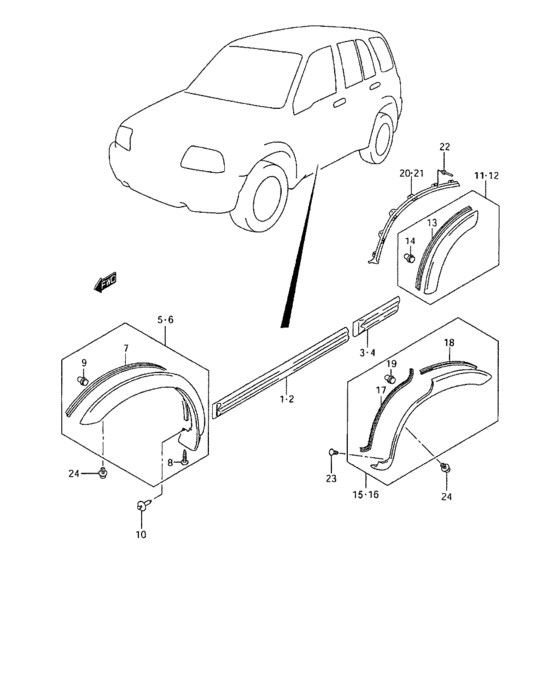

Flare (FLARE) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77521-67D00-P14
Molding, side ctr rh
|
77521-67D00-P14 |
— | ||
|
2
|
2
77621-67D00-P14
Molding, side ctr lh
|
77621-67D00-P14 |
— | ||
|
3
|
3
77531-67DA0-P14
Molding, side rr rh
|
77531-67DA0-P14 |
— | ||
|
4
|
4
77631-67DA0-P14
Molding, side rr lh
|
77631-67DA0-P14 |
— | ||
|
5
|
5
77550-67DA0-P14
Flare, fr fender rh
|
77550-67DA0-P14 |
— | ||
|
6
|
6
77650-67DA0-P14
Flare, fr fender lh
|
77650-67DA0-P14 |
— | ||
|
7
|
7
77552-67DA0-000
Protector, guard edge
|
77552-67DA0-000 |
— | ||
|
8
|
8
71854-67DA0-000
Screw
|
71854-67DA0-000 |
— | ||
|
9
|
9
77553-67DA0-000
Clip, rear quarter flare
|
77553-67DA0-000 |
— | ||
|
10
|
10
77554-67DA0-000
Clip, fender flare lower
|
77554-67DA0-000 |
— | ||
|
11
|
11
77560-67DB0-P14
Flare, rear door rh
|
77560-67DB0-P14 |
— | ||
|
12
|
12
77660-67DB0-P14
Flare, rear door lh
|
77660-67DB0-P14 |
— | ||
|
13
|
13
77562-67DB0-000
Protector, guard edge
|
77562-67DB0-000 |
— | ||
|
14
|
14
77553-67DA0-000
Clip, rear quarter flare
|
77553-67DA0-000 |
— | ||
|
15
|
15
77570-67DB0-P14
Flare, rr qtr rh
|
77570-67DB0-P14 |
— | ||
|
16
|
16
77670-67DB0-P14
Flare, rr qtr lh
|
77670-67DB0-P14 |
— | ||
|
17
|
17
77572-67DB0-000
Protector, guard edge front
|
77572-67DB0-000 |
— | ||
|
18
|
18
77574-67DB0-000
Protector, guard edge rear
|
77574-67DB0-000 |
— | ||
|
19
|
19
77553-67DA0-000
Clip, rear quarter flare
|
77553-67DA0-000 |
— | ||
|
20
|
20
77581-67DA0-000
Holder, rear quarter rh
|
77581-67DA0-000 |
— | ||
|
21
|
21
77681-67DA0-000
Holder, rear quarter lh
|
77681-67DA0-000 |
— | ||
|
22
|
22
77582-67DA0-000
Rivet, holder
|
77582-67DA0-000 |
— | ||
|
23
|
23
77573-67DB0-P14
Clip, quarter flare upper
(GRAY) |
77573-67DB0-P14 |
— | ||
|
24
|
24
09409-07334-000
Clip, quarter flare lower
|
09409-07334-000 |
— | ||
| replacement | |||||
|
24
|
24
09409-07332-000 CLIP |
09409-07332-000 |
from US $1.26 |
||
