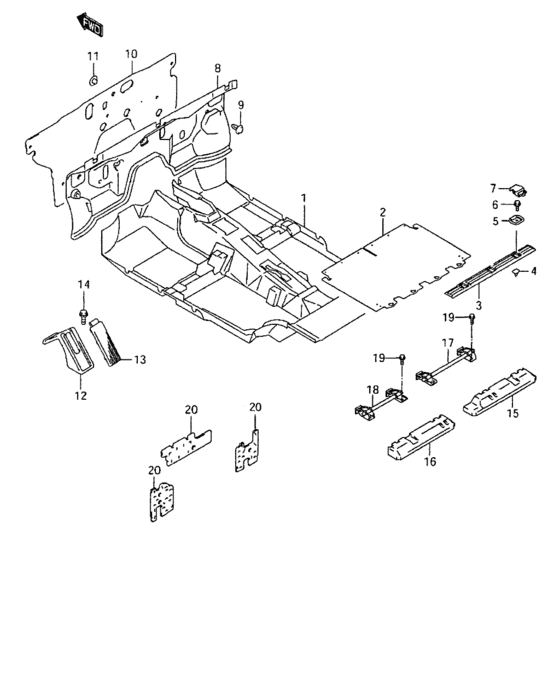

Floor carpet (FLOOR CARPET) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75160-67D00-T19
Carpet, fr floor
|
75160-67D00-T19 |
— | ||
|
2
|
2
75180-67D11-T19
Carpet, rr floor
|
75180-67D11-T19 |
— | ||
|
3
|
3
75191-65D10-T01
GARNISH,LUGGAGE MAT END
|
75191-65D10-T01 |
— | ||
|
4
|
4
77259-71B00-000 CLIP |
77259-71B00-000 |
US $2.08 |
||
|
5
|
5
75480-65D30-000 HOOK,TETHER ANCHORAGE |
75480-65D30-000 |
US $12.84 |
||
|
6
|
6
09103-08242-000 BOLT(8X20) |
09103-08242-000 |
US $17.70 |
||
|
7
|
7
75192-65D10-T01 CAP,MAT END GARNISH |
75192-65D10-T01 |
US $4.97 |
||
|
8
|
8
75210-67D01-000
SILENCER,DASH PANEL
|
75210-67D01-000 |
— | ||
|
9
|
9
09148-05042-000 CLIP |
09148-05042-000 |
US $1.12 |
||
|
10
|
10
75280-67D00-000
SILENCER,DASH OUTER
|
75280-67D00-000 |
— | ||
|
11
|
11
09148-05037-000 CLIP |
09148-05037-000 |
from US $1.24 |
||
|
12
|
12
75551-65D00-5PK PEDAL,FOOTREST |
75551-65D00-5PK |
US $29.26 |
||
|
13
|
13
75552-65D00-5PK
CAP,FOOT REST
|
75552-65D00-5PK |
— | ||
|
14
|
14
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
14
|
14
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.80 |
||
|
15
|
15
75185-65D00-000
PAD,LOWER ANCHOR,R
|
75185-65D00-000 |
— | ||
|
16
|
16
75186-65D00-000
PAD,LOWER ANCHOR,L
|
75186-65D00-000 |
— | ||
|
17
|
17
76610-65D20-000
STRIKER,LOWER ANCHOR,R
|
76610-65D20-000 |
— | ||
|
18
|
18
76620-65D20-000
STRIKER,LOWER ANCHOR,L
|
76620-65D20-000 |
— | ||
|
19
|
19
01551-10203-000
Bolt, 3rd striker
|
01551-10203-000 |
— | ||
| replacement | |||||
|
19
|
19
01551-1020A-000 Bolt |
01551-1020A-000 |
US $17.30 |
||
|
20
|
20
99611-60A01-000 SHEET,SILENCER 800X1000X3CUT AS REQUIRED |
99611-60A01-000 |
US $62.40 |
||
