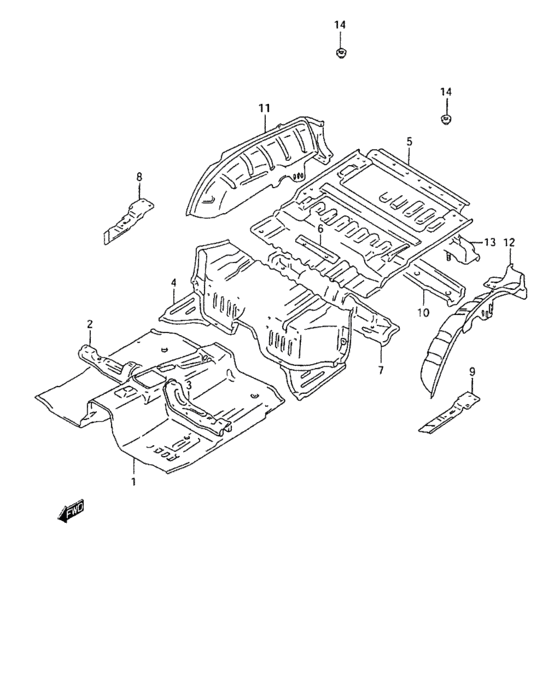

Floor panel (FLOOR PANEL) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61400-67D61-000
Panel,front floor,r
|
61400-67D61-000 |
— | ||
|
2
|
2
61441-65D00-000
Member, fr seat rh
|
61441-65D00-000 |
— | ||
| replacement | |||||
|
2
|
2
61441-65D20-000
MEMBER,FR SEAT,R
|
61441-65D20-000 |
— | ||
|
3
|
3
61541-65D00-000
Member, fr seat lh
|
61541-65D00-000 |
— | ||
| replacement | |||||
|
3
|
3
61541-65D20-000
MEMBER,FR SEAT,L
|
61541-65D20-000 |
— | ||
|
4
|
4
61700-67D01-000
Panel assy, center floor
|
61700-67D01-000 |
— | ||
|
5
|
5
62111-67D20-000
Panel, rr floor
|
62111-67D20-000 |
— | ||
|
6
|
6
62112-65D00-000 BRACKET,RR SEAT LOCK |
62112-65D00-000 |
US $6.99 |
||
|
7
|
7
62120-68D00-000
Member, rr floor,no.1
|
62120-68D00-000 |
— | ||
|
8
|
8
62131-67D00-000
Reinf, rr seat belt side rh
|
62131-67D00-000 |
— | ||
|
9
|
9
62132-67D00-000
Reinf, rr seat belt side lh
|
62132-67D00-000 |
— | ||
|
10
|
10
62141-65D00-000
Member, rr floor no.2
|
62141-65D00-000 |
— | ||
|
11
|
11
62210-65D00-000 PANEL,RR WHEEL HSG INR,R |
62210-65D00-000 |
US $182.16 |
||
|
12
|
12
62310-65D00-000 PANEL,RR WHEEL HSG INR,L |
62310-65D00-000 |
US $182.16 |
||
|
13
|
13
62510-67D10-000
Member comp,rr floor tail
|
62510-67D10-000 |
— | ||
|
14
|
14
65971-77E10-000 CAP,OD:30 |
65971-77E10-000 |
US $2.24 |
||
