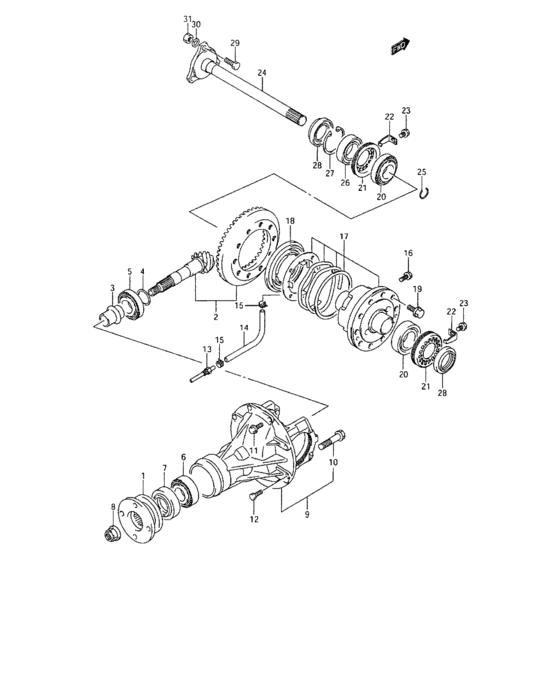

Front diff gear (AT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27110-56B01-000 FLANGE,UNIVERSAL JOINT |
27110-56B01-000 |
US $131.20 |
||
|
2
|
2
27300-86831-000 BEVEL PINION&GEAR SET |
27300-86831-000 |
US $651.20 |
||
|
3
|
3
27315-60A01-000 SPACER,DRIVE BEVEL PINION |
27315-60A01-000 |
US $28 |
||
|
4
|
4
09181-35101-000 SHIM(35X42X0.5)Shim (t:0.5) |
09181-35101-000 |
from US $2.24 |
||
|
4
|
4
09181-35111-000 SHIM(35X42X1) |
09181-35111-000 |
US $21.70 |
||
|
4
|
4
09181-35112-000 SHIM(35X42X1.03) |
09181-35112-000 |
US $21.70 |
||
|
4
|
4
09181-35114-000 SHIM(35X42X1.06) |
09181-35114-000 |
US $21.70 |
||
|
4
|
4
09181-35115-000 SHIM(35X42X1.09) |
09181-35115-000 |
US $21.70 |
||
|
4
|
4
09181-35117-000 SHIM(35X42X1.12) |
09181-35117-000 |
US $21.70 |
||
|
4
|
4
09181-35118-000 SHIM(35X42X1.15) |
09181-35118-000 |
US $21.70 |
||
|
4
|
4
09181-35119-000 SHIM(35X42X1.18) |
09181-35119-000 |
US $2.24 |
||
|
4
|
4
09181-35121-000 SHIM(35X42X1.21) |
09181-35121-000 |
US $21.70 |
||
|
4
|
4
09181-35122-000 SHIM(35X42X1.24) |
09181-35122-000 |
US $21.70 |
||
|
4
|
4
09181-35124-000 SHIM(35X42X1.27) |
09181-35124-000 |
US $21.70 |
||
|
4
|
4
09181-35125-000 SHIM(35X42X1.3) |
09181-35125-000 |
US $21.70 |
||
|
5
|
5
09265-35011-000 BEARING(35X80X22.75) |
09265-35011-000 |
US $40 |
||
|
6
|
6
09265-30018-000 BEARING(30X72X20.75) |
09265-30018-000 |
US $38.40 |
||
|
7
|
7
09283-40027-000 SEAL,OIL(40x72x11x18) |
09283-40027-000 |
US $14.88 |
||
|
8
|
8
27375-60A00-000 NUT,UNIVERSAL JOINT |
27375-60A00-000 |
US $7.84 |
||
|
9
|
9
27450-68D21-000 CARRIER ASSY,DIFF,FR |
27450-68D21-000 |
US $336.72 |
||
|
10
|
10
09111-12010-000 BOLT(12X58) |
09111-12010-000 |
US $2.43 |
||
|
11
|
11
01550-08303-000
Bolt
|
01550-08303-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0830B-000 Bolt |
01550-0830B-000 |
from US $1.06 |
||
|
11
|
11
01550-0830A-000 BOLTBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.12 |
||
|
12
|
12
09111-08076-000
BOLT(8X36)
|
09111-08076-000 |
— | ||
|
13
|
13
27961-85F40-000 UNION,AIR INLET |
27961-85F40-000 |
US $17.63 |
||
|
14
|
14
27962-85F40-000 HOSE,DIFF INR |
27962-85F40-000 |
US $15.04 |
||
|
15
|
15
09401-10411-000 CLIPClip, cap |
09401-10411-000 |
from US $3.83 |
||
|
16
|
16
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
16
|
16
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
17
|
17
27410-85F44-000 CASE,F/A |
27410-85F44-000 |
US $837.76 |
||
|
18
|
18
27750-67D01-000 ACTUATOR ASSY,F/A |
27750-67D01-000 |
US $299.20 |
||
|
19
|
19
09103-10184-000 BOLT(10X25) |
09103-10184-000 |
US $30.20 |
||
| replacement | |||||
|
19
|
19
09103-10253-000
Bolt,10x28
|
09103-10253-000 |
— | ||
|
20
|
20
09265-45002-000 BEARING(45.2X80X19.84) |
09265-45002-000 |
US $45.60 |
||
|
21
|
21
27461-83000-000 ADJUSTER,DIFF SIDE BEARING |
27461-83000-000 |
US $7.52 |
||
|
22
|
22
27462-63202-000 PLATE,BEARING LOCK |
27462-63202-000 |
US $2.74 |
||
|
23
|
23
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
23
|
23
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
23
|
23
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
|
24
|
24
27471-85F40-000 SHAFT,FRONT DRIVE |
27471-85F40-000 |
US $198.72 |
||
|
25
|
25
44111-65D00-000 RING,SNAP |
44111-65D00-000 |
US $1.60 |
||
|
26
|
26
08133-62067-000 BEARING |
08133-62067-000 |
US $24 |
||
|
27
|
27
08331-41626-000
Ring 62mm
|
08331-41626-000 |
— | ||
| replacement | |||||
|
27
|
27
08331-4162A-000 CIRCLIP |
08331-4162A-000 |
from US $4.26 |
||
|
28
|
28
09283-35008-000
Seal, oil (35x62x10)
|
09283-35008-000 |
— | ||
| replacement | |||||
|
28
|
28
09283-35052-000 SEAL,OIL(35X62X14.8) |
09283-35052-000 |
from US $10.34 |
||
|
29
|
29
09100-10262-000 BOLT(10X29)Bolt, arm knuckle tie-rod end |
09100-10262-000 |
from US $1.60 |
||
|
30
|
30
08321-01103-000
Washer
|
08321-01103-000 |
— | ||
| replacements | |||||
|
30
|
30
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
30
|
30
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
31
|
31
08310-00103-000
Nut
|
08310-00103-000 |
— | ||
| replacements | |||||
|
31
|
31
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
31
|
31
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
