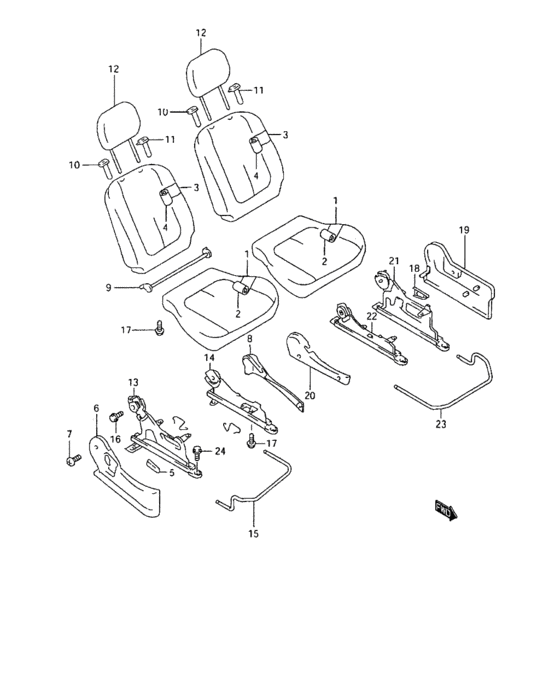

Front seat (FRONT SEAT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85105-67DA0-000
CUSHION SUB ASSY,FR
|
85105-67DA0-000 |
— | ||
|
2
|
2
85180-67DA1-DG7
Cover, cushion
|
85180-67DA1-DG7 |
— | ||
|
3
|
3
85305-67DA0-000
BACK S/ASSY,FR
|
85305-67DA0-000 |
— | ||
|
4
|
4
85380-67DA0-DG7
Cover, back
|
85380-67DA0-DG7 |
— | ||
|
5
|
5
85211-67DA0-T01
KNOB,RECL,R
|
85211-67DA0-T01 |
— | ||
|
6
|
6
85221-67DA0-T01
COVER,RECL,OUTSIDE,R
(GRAY) |
85221-67DA0-T01 |
— | ||
|
7
|
7
03242-05123-000
Screw, inner cover
|
03242-05123-000 |
— | ||
| replacement | |||||
|
7
|
7
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
8
|
8
85241-67DA0-T01
Cover, reclining inside rh
(GRAY) |
85241-67DA0-T01 |
— | ||
|
9
|
9
85250-67DA0-000
ROD,FR SEAT ADJUSTER
|
85250-67DA0-000 |
— | ||
|
10
|
10
85341-67DA0-T01
GUIDE,HEADRESTRAINT
|
85341-67DA0-T01 |
— | ||
|
11
|
11
85840-67DA0-T01
GUIDE,HEADRESTRAINT
|
85840-67DA0-T01 |
— | ||
|
12
|
12
86401-67DE0-DG6
Headrestraint assy
|
86401-67DE0-DG6 |
— | ||
|
13
|
13
86603-67DA0-000
Adjuster, outside rh
|
86603-67DA0-000 |
— | ||
|
14
|
14
86601-67DA0-000
Adjuster, inside rh
|
86601-67DA0-000 |
— | ||
|
15
|
15
86691-67DA0-000
Handle, adjuster
|
86691-67DA0-000 |
— | ||
|
16
|
16
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
16
|
16
01550-1020A-000 BOLTBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
17
|
17
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
17
|
17
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
|
18
|
18
85711-67DA0-T01
KNOB,RECL,L
|
85711-67DA0-T01 |
— | ||
|
19
|
19
85721-67DA0-T01
COVER,RECL,OUTSIDE,L
(GRAY) |
85721-67DA0-T01 |
— | ||
|
20
|
20
85741-67DA0-T01
COVER,RECL,INSIDE,L
(GRAY) |
85741-67DA0-T01 |
— | ||
|
21
|
21
86604-67DA0-000
Adjuster, outside lh
|
86604-67DA0-000 |
— | ||
|
22
|
22
86602-67DA0-000
Adjuster, inside lh
|
86602-67DA0-000 |
— | ||
|
23
|
23
86891-67DA0-000
HANDLE,FR SEAT ADJUSTER
|
86891-67DA0-000 |
— | ||
|
24
|
24
01551-10253-000
Bolt
|
01551-10253-000 |
— | ||
| replacement | |||||
|
24
|
24
01551-1025A-000 Bolt |
01551-1025A-000 |
US $1.12 |
||
