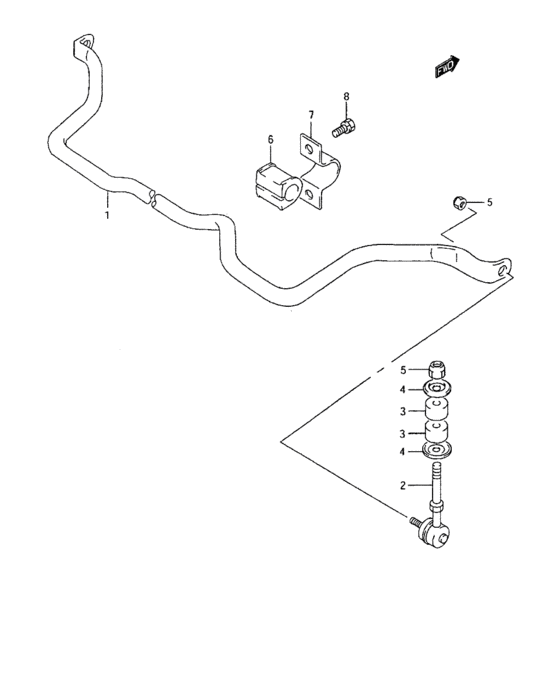

Front stabilizer (FRONT STABILIZER) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42311-67D00-000
Bar, front stabilizer
|
42311-67D00-000 |
— | ||
|
2
|
2
42420-67D00-000
Joint, stabilizer ball
|
42420-67D00-000 |
— | ||
|
3
|
3
09320-10024-000 CUSHION |
09320-10024-000 |
US $5.92 |
||
|
4
|
4
09165-10002-000 WASHER |
09165-10002-000 |
US $2.08 |
||
|
5
|
5
09159-10056-000 NUT |
09159-10056-000 |
US $1.12 |
||
|
6
|
6
42412-67D00-000
Bushing, bar mount
|
42412-67D00-000 |
— | ||
|
7
|
7
42415-65D00-000
ブラケット,スタビライザバーマウント
|
42415-65D00-000 |
— | ||
| replacement | |||||
|
7
|
7
42415-66D00-000 BRACKET,STABILIZER BAR MOUNT |
42415-66D00-000 |
from US $7.52 |
||
|
8
|
8
09112-08002-000 BOLT(8X25) |
09112-08002-000 |
US $1.28 |
||
