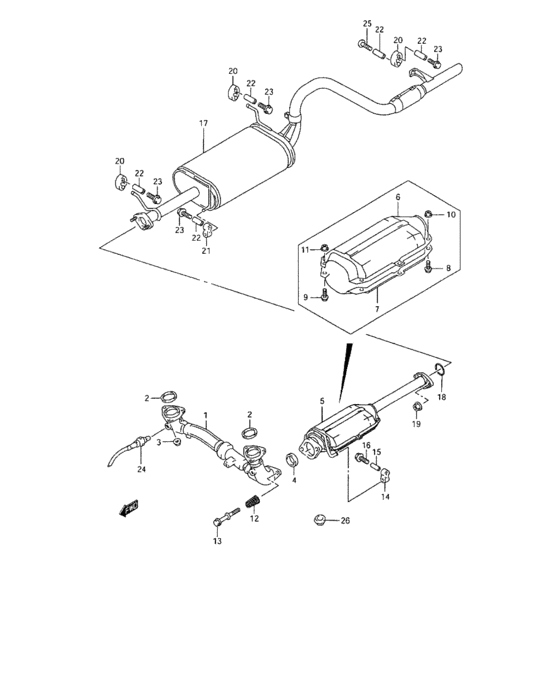

Muffler (MUFFLER) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14190-67D23-000
Pipe, exhaust no.1
|
14190-67D23-000 |
— | ||
|
2
|
2
14184-65D10-000
Gasket
|
14184-65D10-000 |
— | ||
| replacement | |||||
|
2
|
2
14184-65D00-000 GASKET,EXH PIPE |
14184-65D00-000 |
from US $8.93 |
||
|
3
|
3
09159-10098-000 NUT |
09159-10098-000 |
from US $1.28 |
||
|
4
|
4
14183-65D00-000 RING,SEAL EXH PIPE |
14183-65D00-000 |
US $20.80 |
||
|
5
|
5
14250-67D30-000
Pipe, exhaust no.2
|
14250-67D30-000 |
— | ||
|
6
|
6
14251-65D20-000
カバー,キャタリストケース,アッパ
|
14251-65D20-000 |
— | ||
| replacement | |||||
|
6
|
6
14251-65D2V-000 COVER,CATACASE UPPER |
14251-65D2V-000 |
from US $23.55 |
||
|
7
|
7
14252-65D20-000
カバー,キャタリストケース,ロア
|
14252-65D20-000 |
— | ||
| replacement | |||||
|
7
|
7
14252-65D2V-000 COVER,CATACASE LOWER 77E-C03 |
14252-65D2V-000 |
US $28.52 |
||
|
8
|
8
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
8
|
8
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
9
|
9
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
9
|
9
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
10
|
10
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
11
|
11
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
11
|
11
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
12
|
12
14492-82600-000
Spring
|
14492-82600-000 |
— | ||
| replacement | |||||
|
12
|
12
14492-67D00-000 SPRING,EXH PIPE |
14492-67D00-000 |
from US $5.69 |
||
|
13
|
13
09119-10042-000
ボルト,10X65
|
09119-10042-000 |
— | ||
| replacement | |||||
|
13
|
13
09119-10041-000 BOLT(10X65) |
09119-10041-000 |
from US $5.92 |
||
|
14
|
14
14281-71C01-000 MOUNTING,MUF |
14281-71C01-000 |
from US $7.49 |
||
|
15
|
15
09180-08057-000
Spacer
|
09180-08057-000 |
— | ||
| replacement | |||||
|
15
|
15
09180-08227-000 SPACER(8.2X12.5X23.5) |
09180-08227-000 |
from US $1.92 |
||
|
16
|
16
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
16
|
16
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
17
|
17
14300-67D30-000
Muffler, exhaust
|
14300-67D30-000 |
— | ||
|
18
|
18
14182-58B10-000 GASKET,MUFFLER |
14182-58B10-000 |
from US $4.79 |
||
|
19
|
19
09159-10049-000
Nut
|
09159-10049-000 |
— | ||
| replacement | |||||
|
19
|
19
09159-10102-000 NUT |
09159-10102-000 |
from US $0.97 |
||
|
20
|
20
14281-58B01-000 MOUNTING,MUF |
14281-58B01-000 |
US $22.40 |
||
|
21
|
21
14281-71C01-000 MOUNTING,MUF |
14281-71C01-000 |
from US $7.49 |
||
|
22
|
22
09180-08057-000
Spacer
|
09180-08057-000 |
— | ||
| replacement | |||||
|
22
|
22
09180-08227-000 SPACER(8.2X12.5X23.5) |
09180-08227-000 |
from US $1.92 |
||
|
23
|
23
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
23
|
23
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
23
|
23
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
24
|
24
18213-67D50-000 SENSOR,OXYGEN RR |
18213-67D50-000 |
US $292.56 |
||
|
25
|
25
09139-08019-000 SCREW(8X35) |
09139-08019-000 |
US $23.60 |
||
|
26
|
26
09250-25007-000 CAP(OD:25.0) |
09250-25007-000 |
from US $0.97 |
||
