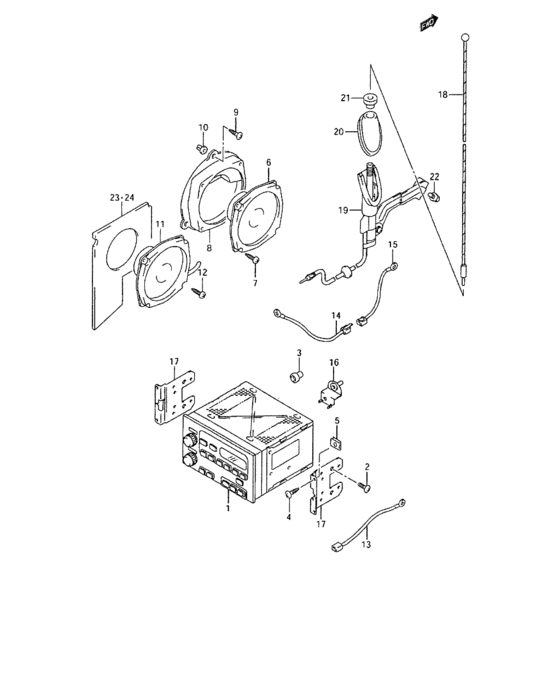

Radio (RADIO) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39101-67D20-000
Tuner assy
|
39101-67D20-000 |
— | ||
|
2
|
2
02142-05083-000
Screw
|
02142-05083-000 |
— | ||
| replacement | |||||
|
2
|
2
02142-0508A-000 SCREWScrew, cap |
02142-0508A-000 |
from US $0.76 |
||
|
3
|
3
34955-60E00-000 BUSH |
34955-60E00-000 |
US $2.40 |
||
|
4
|
4
03142-05163-000
Screw
|
03142-05163-000 |
— | ||
| replacement | |||||
|
4
|
4
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
5
|
5
73321-77E00-000
Nut, console box cap
|
73321-77E00-000 |
— | ||
| replacement | |||||
|
5
|
5
09148-05045-000 NUT |
09148-05045-000 |
from US $0.81 |
||
|
6
|
6
39102-67D00-000
SPEAKER ASSY
|
39102-67D00-000 |
— | ||
|
7
|
7
03512-05163-000
Screw
|
03512-05163-000 |
— | ||
| replacement | |||||
|
7
|
7
03511-0516A-000 SCREW |
03511-0516A-000 |
from US $0.76 |
||
|
8
|
8
39350-67D00-000 BRACKET,FR SPKR |
39350-67D00-000 |
US $23.74 |
||
| replacement | |||||
|
8
|
8
39350-60G00-000
BRACKET,FR SPKR
|
39350-60G00-000 |
— | ||
|
9
|
9
03242-06163-000
Screw
|
03242-06163-000 |
— | ||
| replacement | |||||
|
9
|
9
03241-0616C-000 SCREW |
03241-0616C-000 |
from US $0.76 |
||
|
10
|
10
09148-06007-000 NUT |
09148-06007-000 |
from US $0.86 |
||
|
11
|
11
39102-67D00-000
SPEAKER ASSY
|
39102-67D00-000 |
— | ||
|
12
|
12
03142-05163-000
Screw
|
03142-05163-000 |
— | ||
| replacement | |||||
|
12
|
12
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
13
|
13
39191-50F00-000 WIRE,TUNER GND |
39191-50F00-000 |
US $2.24 |
||
|
14
|
14
39312-67D00-000
Wire, noise suppressor no.1
|
39312-67D00-000 |
— | ||
| replacement | |||||
|
14
|
14
39312-65D00-000 WIRE,NOISE SUPPR |
39312-65D00-000 |
US $3.90 |
||
|
15
|
15
39312-60B11-000
ワイヤ,ノイズサプレッサ
|
39312-60B11-000 |
— | ||
| replacement | |||||
|
15
|
15
39312-60G00-000 WIRE,NOISE SUPPR |
39312-60G00-000 |
US $6.40 |
||
|
16
|
16
39321-67D00-000
Bracket, tuner rear
|
39321-67D00-000 |
— | ||
|
17
|
17
39321-67D10-000
Bracket, tuner side
|
39321-67D10-000 |
— | ||
|
18
|
18
39251-67D20-000
Rod,antenna
|
39251-67D20-000 |
— | ||
| replacement | |||||
|
18
|
18
39251-67D21-000 ROD,ANTENNA |
39251-67D21-000 |
US $46.74 |
||
|
19
|
19
39253-67D01-000 BODY,ANTENNA |
39253-67D01-000 |
US $95.31 |
||
|
20
|
20
39256-67D00-000 INSULATOR ASSY,ANT |
39256-67D00-000 |
US $12.36 |
||
|
21
|
21
39269-67D00-000 NUT,ANTENNA |
39269-67D00-000 |
US $20.06 |
||
|
22
|
22
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
22
|
22
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
22
|
22
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
23
|
23
39112-67D00-000
Gasket, rr speaker hole lh
|
39112-67D00-000 |
— | ||
|
24
|
24
39112-67D10-000
Gasket, rr speaker hole rh
|
39112-67D10-000 |
— | ||
