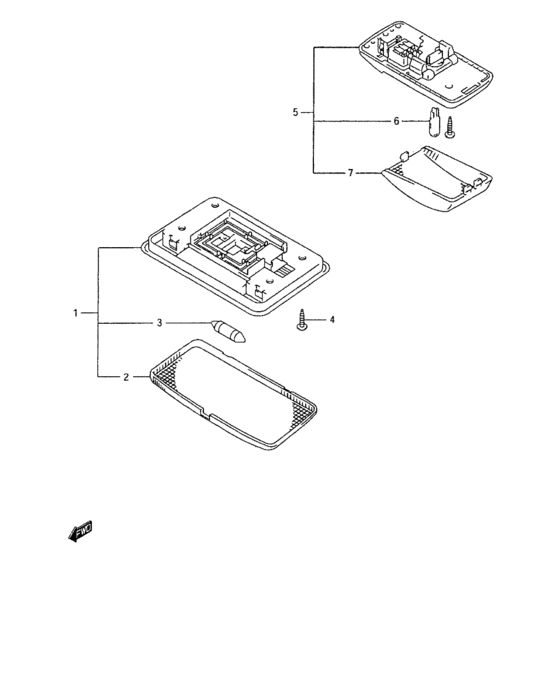

Room lamp (ROOM LAMP) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Canada
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36210-67D00-6GS
Lamp assy,room
|
36210-67D00-6GS |
— | ||
|
2
|
2
36212-67D00-000
LENS,ROOM LAMP
|
36212-67D00-000 |
— | ||
|
3
|
3
09471-12187-000 BULB(12V8W,TOKAI DENSO) |
09471-12187-000 |
from US $2.50 |
||
|
4
|
4
03142-05163-000
Screw
|
03142-05163-000 |
— | ||
| replacement | |||||
|
4
|
4
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
5
|
5
36220-67D00-6GS
Lamp assy, rr room
|
36220-67D00-6GS |
— | ||
|
6
|
6
09471-12081-000
Bulb (12v,5w)
|
09471-12081-000 |
— | ||
| replacement | |||||
|
6
|
6
09471-12216-000 BULB(12V5W)Bulb (12v5w) |
09471-12216-000 |
from US $2.84 |
||
|
7
|
7
36222-67D00-000
Lens, rr room lamp
|
36222-67D00-000 |
— | ||
