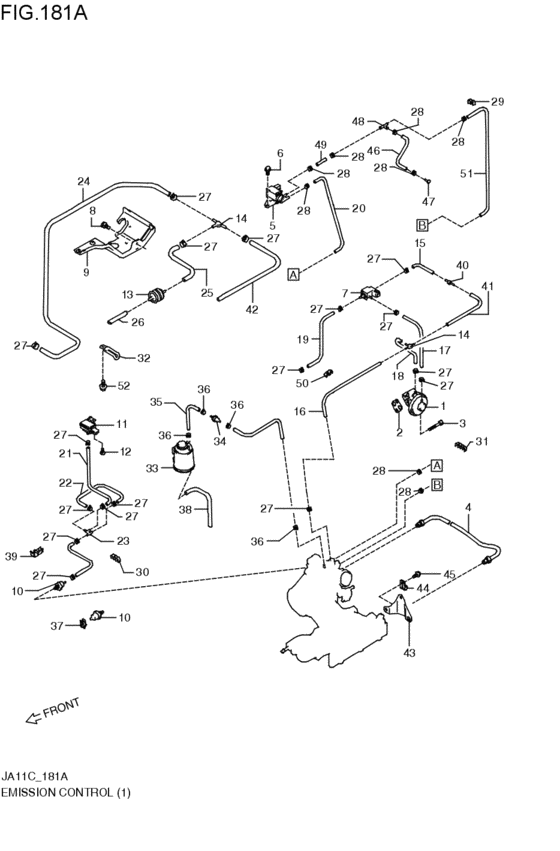

emission control (JA11-100001ヨリ150000マデ; TYPE1; 1990-02-01~1991-05-01) Diagram Suzuki JIMNY
- Year
- 1990 - 1991
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 4WD
- transmission
- 5MT
- grade
- CC
- type
- TYPE1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18111-80710-000
バルブ,EGR
TYPE1; 1990-02-01~1991-05-01 |
18111-80710-000 |
— | ||
|
2
|
2
18529-60A00-000 GASKET,EGR VALVETYPE1; 1990-02-01~1991-05-01 |
18529-60A00-000 |
US $1.60 |
||
|
3
|
3
01570-06453-000
Bolt
TYPE1; 1990-02-01~1991-05-01 |
01570-06453-000 |
— | ||
| replacement | |||||
|
3
|
3
01570-0645A-000 BoltTYPE1; 1990-02-01~1991-05-01 |
01570-0645A-000 |
from US $4.13 |
||
|
4
|
4
18530-80701-000
パイプ,EGR
TYPE1; 1990-02-01~1991-05-01 |
18530-80701-000 |
— | ||
|
5
|
5
18117-82C00-000
バルブ,ツーウェイソレノイド
TYPE1; 1990-02-01~1991-05-01 |
18117-82C00-000 |
— | ||
|
6
|
6
01550-08123-000
Bolt
TYPE1; 1990-02-01~1991-05-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0812B-000 BoltPlug, drain TYPE1; 1990-02-01~1991-05-01 |
01550-0812B-000 |
from US $0.96 |
||
|
6
|
6
01550-0812A-000 BOLTTYPE1; 1990-02-01~1991-05-01 |
01550-0812A-000 |
from US $0.91 |
||
|
7
|
7
18117-56F00-000
バルブ,3ウェイソレノイドレギュレータ
TYPE1; 1990-02-01~1991-05-01 |
18117-56F00-000 |
— | ||
|
8
|
8
02112-35083-000
Screw, cap steering lock
TYPE1; 1990-02-01~1991-05-01 |
02112-35083-000 |
— | ||
| replacement | |||||
|
8
|
8
02112-3508B-000 SCREWTYPE1; 1990-02-01~1991-05-01 |
02112-3508B-000 |
from US $1.87 |
||
|
9
|
9
18417-83C20-000
Bracket,vsv
TYPE1; 1990-02-01~1991-05-01 |
18417-83C20-000 |
— | ||
|
10
|
10
18133-60B00-000 FILTER,GASTYPE1; 1990-02-01~1991-05-01 |
18133-60B00-000 |
US $16.72 |
||
|
11
|
11
18590-82C01-000
センサ,マツプ
TYPE1; 1990-02-01~1991-05-01 |
18590-82C01-000 |
— | ||
| replacement | |||||
|
11
|
11
18590-82C02-000
New Genuine Part
TYPE1; 1990-02-01~1991-05-01 |
18590-82C02-000 |
— | ||
|
12
|
12
02142-05083-000
Screw
TYPE1; 1990-02-01~1991-05-01 |
02142-05083-000 |
— | ||
| replacement | |||||
|
12
|
12
02142-0508A-000 SCREWScrew, cap TYPE1; 1990-02-01~1991-05-01 |
02142-0508A-000 |
from US $0.76 |
||
|
13
|
13
18114-80020-000
VALVE,VACUUM TRANSMITTING
TYPE1; 1990-02-01~1991-05-01 |
18114-80020-000 |
— | ||
|
14
|
14
09367-04002-000 CONNECTORTYPE1; 1990-02-01~1991-05-01 |
09367-04002-000 |
US $4.80 |
||
|
15
|
15
09355-35754-600
ホース,3.5X7.5X600
L:600>220; TYPE1; 1990-02-01~1991-05-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
15
|
15
09355-35754-601
HOSE(3.5X7.5X601)
L:600>220; TYPE1; 1990-02-01~1991-05-01 |
09355-35754-601 |
— | ||
|
15
|
15
09355-35006-601 Hose(3.5X7.5X601)L:600>220; TYPE1; 1990-02-01~1991-05-01 |
09355-35006-601 |
from US $5.74 |
||
|
16
|
16
09355-35754-600
ホース,3.5X7.5X600
L:600>100; TYPE1; 1990-02-01~1991-05-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
16
|
16
09355-35754-601
HOSE(3.5X7.5X601)
L:600>100; TYPE1; 1990-02-01~1991-05-01 |
09355-35754-601 |
— | ||
|
16
|
16
09355-35006-601 Hose(3.5X7.5X601)L:600>100; TYPE1; 1990-02-01~1991-05-01 |
09355-35006-601 |
from US $5.74 |
||
|
17
|
17
09355-35754-600
ホース,3.5X7.5X600
L:600>200; TYPE1; 1990-02-01~1991-05-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
17
|
17
09355-35754-601
HOSE(3.5X7.5X601)
L:600>200; TYPE1; 1990-02-01~1991-05-01 |
09355-35754-601 |
— | ||
|
17
|
17
09355-35006-601 Hose(3.5X7.5X601)L:600>200; TYPE1; 1990-02-01~1991-05-01 |
09355-35006-601 |
from US $5.74 |
||
|
18
|
18
09355-35754-600
ホース,3.5X7.5X600
L:600>65; TYPE1; 1990-02-01~1991-05-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
18
|
18
09355-35754-601
HOSE(3.5X7.5X601)
L:600>65; TYPE1; 1990-02-01~1991-05-01 |
09355-35754-601 |
— | ||
|
18
|
18
09355-35006-601 Hose(3.5X7.5X601)L:600>65; TYPE1; 1990-02-01~1991-05-01 |
09355-35006-601 |
from US $5.74 |
||
|
19
|
19
09355-35754-600
ホース,3.5X7.5X600
L:600>240; TYPE1; 1990-02-01~1991-05-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
19
|
19
09355-35754-601
HOSE(3.5X7.5X601)
L:600>240; TYPE1; 1990-02-01~1991-05-01 |
09355-35754-601 |
— | ||
|
19
|
19
09355-35006-601 Hose(3.5X7.5X601)L:600>240; TYPE1; 1990-02-01~1991-05-01 |
09355-35006-601 |
from US $5.74 |
||
|
20
|
20
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) L:600>150; TYPE1; 1990-02-01~1991-05-01 |
09355-70125-600 |
from US $6.17 |
||
| replacement | |||||
|
20
|
20
44421-12FR0-000 HOSEL:600>150; TYPE1; 1990-02-01~1991-05-01 |
44421-12FR0-000 |
from US $16.64 |
||
|
21
|
21
09355-35754-600
ホース,3.5X7.5X600
L:600>50; TYPE1; 1990-02-01~1991-05-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
21
|
21
09355-35754-601
HOSE(3.5X7.5X601)
L:600>50; TYPE1; 1990-02-01~1991-05-01 |
09355-35754-601 |
— | ||
|
21
|
21
09355-35006-601 Hose(3.5X7.5X601)L:600>50; TYPE1; 1990-02-01~1991-05-01 |
09355-35006-601 |
from US $5.74 |
||
|
22
|
22
09355-35754-600
ホース,3.5X7.5X600
L:600>120; TYPE1; 1990-02-01~1991-05-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
22
|
22
09355-35754-601
HOSE(3.5X7.5X601)
L:600>120; TYPE1; 1990-02-01~1991-05-01 |
09355-35754-601 |
— | ||
|
22
|
22
09355-35006-601 Hose(3.5X7.5X601)L:600>120; TYPE1; 1990-02-01~1991-05-01 |
09355-35006-601 |
from US $5.74 |
||
|
23
|
23
09367-04003-000 JOINT,4 WAYTYPE1; 1990-02-01~1991-05-01 |
09367-04003-000 |
US $2.24 |
||
|
24
|
24
09355-35754-00B
HOSE(3.5X7.5X2000)
L:2000>740; TYPE1; 1990-02-01~1991-05-01 |
09355-35754-00B |
— | ||
| replacement | |||||
|
24
|
24
09355-35006-00B Hose(3.5X7.5X2000)L:2000>740; TYPE1; 1990-02-01~1991-05-01 |
09355-35006-00B |
US $28.80 |
||
|
25
|
25
09355-35754-600
ホース,3.5X7.5X600
L:600>220; TYPE1; 1990-02-01~1991-05-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
25
|
25
09355-35754-601
HOSE(3.5X7.5X601)
L:600>220; TYPE1; 1990-02-01~1991-05-01 |
09355-35754-601 |
— | ||
|
25
|
25
09355-35006-601 Hose(3.5X7.5X601)L:600>220; TYPE1; 1990-02-01~1991-05-01 |
09355-35006-601 |
from US $5.74 |
||
|
26
|
26
09355-35754-600
ホース,3.5X7.5X600
L:600>120; TYPE1; 1990-02-01~1991-05-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
26
|
26
09355-35754-601
HOSE(3.5X7.5X601)
L:600>120; TYPE1; 1990-02-01~1991-05-01 |
09355-35754-601 |
— | ||
|
26
|
26
09355-35006-601 Hose(3.5X7.5X601)L:600>120; TYPE1; 1990-02-01~1991-05-01 |
09355-35006-601 |
from US $5.74 |
||
|
27
|
27
09401-06405-000 CLIPTYPE1; 1990-02-01~1991-05-01 |
09401-06405-000 |
from US $1.12 |
||
|
28
|
28
09401-11407-000
CLIP
TYPE1; 1990-02-01~1991-05-01 |
09401-11407-000 |
— | ||
| replacement | |||||
|
28
|
28
09401-11415-000 CLIPTYPE1; 1990-02-01~1991-05-01 |
09401-11415-000 |
from US $1.06 |
||
|
29
|
29
09408-00033-000 CLAMPClamp TYPE1; 1990-02-01~1991-05-01 |
09408-00033-000 |
from US $1.60 |
||
|
30
|
30
09408-00035-000 CLIPClamp TYPE1; 1990-02-01~1991-05-01 |
09408-00035-000 |
US $17.70 |
||
|
31
|
31
09408-00035-000 CLIPClamp TYPE1; 1990-02-01~1991-05-01 |
09408-00035-000 |
US $17.70 |
||
|
32
|
32
09404-06432-000
CLAMP(L:65)
TYPE1; 1990-02-01~1991-05-01 |
09404-06432-000 |
— | ||
| replacement | |||||
|
32
|
32
09404-06039-000 Clamp(L:65)TYPE1; 1990-02-01~1991-05-01 |
09404-06039-000 |
from US $1.82 |
||
|
33
|
33
18560-82C00-000
キャニスタ
TYPE1; 1990-02-01~1991-05-01 |
18560-82C00-000 |
— | ||
|
34
|
34
18565-84150-000
バルブ,キャニスタパージ
TYPE1; 1990-02-01~1991-05-01 |
18565-84150-000 |
— | ||
| replacement | |||||
|
34
|
34
18565-84151-000 VALVE,CANISTER PURGETYPE1; 1990-02-01~1991-05-01 |
18565-84151-000 |
US $21.60 |
||
|
35
|
35
09355-35754-600
ホース,3.5X7.5X600
L:600>200; TYPE1; 1990-02-01~1991-05-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
35
|
35
09355-35754-601
HOSE(3.5X7.5X601)
L:600>200; TYPE1; 1990-02-01~1991-05-01 |
09355-35754-601 |
— | ||
|
35
|
35
09355-35006-601 Hose(3.5X7.5X601)L:600>200; TYPE1; 1990-02-01~1991-05-01 |
09355-35006-601 |
from US $5.74 |
||
|
36
|
36
09401-06405-000 CLIPTYPE1; 1990-02-01~1991-05-01 |
09401-06405-000 |
from US $1.12 |
||
|
37
|
37
09403-08315-000 CLAMPTYPE1; 1990-02-01~1991-05-01 |
09403-08315-000 |
US $1.67 |
||
|
38
|
38
09351-70113-600 HOSE(7X11X600)L:600>380; TYPE1; 1990-02-01~1991-05-01 |
09351-70113-600 |
US $3.52 |
||
|
39
|
39
09408-00111-000 CLAMPTYPE1; 1990-02-01~1991-05-01 |
09408-00111-000 |
US $2.08 |
||
|
40
|
40
09367-04008-000 2 WAYTYPE1; 1990-02-01~1991-05-01 |
09367-04008-000 |
US $32 |
||
|
41
|
41
09355-35754-600
ホース,3.5X7.5X600
L:600>65; TYPE1; 1990-02-01~1991-05-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
41
|
41
09355-35754-601
HOSE(3.5X7.5X601)
L:600>65; TYPE1; 1990-02-01~1991-05-01 |
09355-35754-601 |
— | ||
|
41
|
41
09355-35006-601 Hose(3.5X7.5X601)L:600>65; TYPE1; 1990-02-01~1991-05-01 |
09355-35006-601 |
from US $5.74 |
||
|
42
|
42
09355-35754-600
ホース,3.5X7.5X600
L:600>380; TYPE1; 1990-02-01~1991-05-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
42
|
42
09355-35754-601
HOSE(3.5X7.5X601)
L:600>380; TYPE1; 1990-02-01~1991-05-01 |
09355-35754-601 |
— | ||
|
42
|
42
09355-35006-601 Hose(3.5X7.5X601)L:600>380; TYPE1; 1990-02-01~1991-05-01 |
09355-35006-601 |
from US $5.74 |
||
|
43
|
43
18535-82C00-000
ブラケット,EGRパイプクランプ
TYPE1; 1990-02-01~1991-05-01 |
18535-82C00-000 |
— | ||
|
44
|
44
18536-85300-000 CLAMP,EGR PIPETYPE1; 1990-02-01~1991-05-01 |
18536-85300-000 |
US $3.64 |
||
|
45
|
45
01550-06103-000
Bolt, front
TYPE1; 1990-02-01~1991-05-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
45
|
45
01550-0610B-000 BoltBolt TYPE1; 1990-02-01~1991-05-01 |
01550-0610B-000 |
from US $0.80 |
||
|
45
|
45
01550-0610A-000 BOLTTYPE1; 1990-02-01~1991-05-01 |
01550-0610A-000 |
from US $0.80 |
||
|
46
|
46
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) L:600>260; TYPE1; 1990-02-01~1991-05-01 |
09355-70125-600 |
from US $6.17 |
||
| replacement | |||||
|
46
|
46
44421-12FR0-000 HOSEL:600>260; TYPE1; 1990-02-01~1991-05-01 |
44421-12FR0-000 |
from US $16.64 |
||
|
47
|
47
09200-08049-000 PINTYPE1; 1990-02-01~1991-05-01 |
09200-08049-000 |
US $11.40 |
||
|
48
|
48
09367-08004-000 3 WAY3 way (m8) TYPE1; 1990-02-01~1991-05-01 |
09367-08004-000 |
from US $2.24 |
||
|
49
|
49
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) L:600>45; TYPE1; 1990-02-01~1991-05-01 |
09355-70125-600 |
from US $6.17 |
||
| replacement | |||||
|
49
|
49
44421-12FR0-000 HOSEL:600>45; TYPE1; 1990-02-01~1991-05-01 |
44421-12FR0-000 |
from US $16.64 |
||
|
50
|
50
09408-00043-000 CLAMPHolder, fuse case TYPE1; 1990-02-01~1991-05-01 |
09408-00043-000 |
US $9.60 |
||
|
51
|
51
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) L:600>150; TYPE1; 1990-02-01~1991-05-01 |
09355-70125-600 |
from US $6.17 |
||
| replacement | |||||
|
51
|
51
44421-12FR0-000 HOSEL:600>150; TYPE1; 1990-02-01~1991-05-01 |
44421-12FR0-000 |
from US $16.64 |
||
|
52
|
52
02142-05083-000
Screw
TYPE1; 1990-02-01~1991-05-01 |
02142-05083-000 |
— | ||
| replacement | |||||
|
52
|
52
02142-0508A-000 SCREWScrew, cap TYPE1; 1990-02-01~1991-05-01 |
02142-0508A-000 |
from US $0.76 |
||
