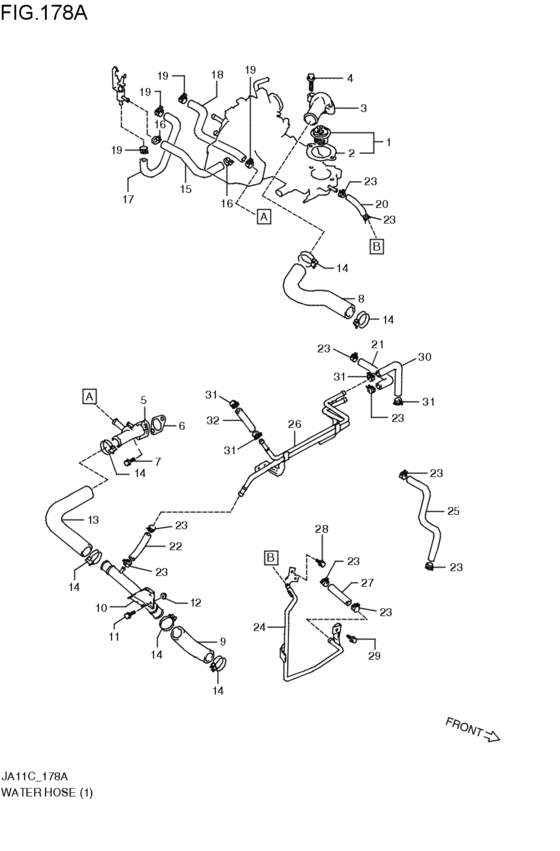

water hose (TYPE1; 1990-02-01~1991-05-01) Diagram Suzuki JIMNY
- Year
- 1990 - 1991
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 4WD
- transmission
- 5MT
- grade
- CC
- type
- TYPE1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17600-85811-000 THERMOSTAT SET,WATER 82 DEGイッパンシヨウ,カンレイチシヨウ; TYPE1; 1990-02-01~1991-05-01 |
17600-85811-000 |
from US $19.53 |
||
|
1
|
1
17600-85821-000 THERMOSTAT SET,WATER 88 DEGゴクカンレイチシヨウ; TYPE1; 1990-02-01~1991-05-01 |
17600-85821-000 |
US $20.22 |
||
|
2
|
2
17569-82001-H17 GASKET,WTR THERMO CAPTYPE1; 1990-02-01~1991-05-01 |
17569-82001-H17 |
US $2.24 |
||
|
3
|
3
17561-79110-000
キャップ,サーモスタット
TYPE1; 1990-02-01~1991-05-01 |
17561-79110-000 |
— | ||
|
4
|
4
01550-08303-000
Bolt
TYPE1; 1990-02-01~1991-05-01 |
01550-08303-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0830B-000 BoltTYPE1; 1990-02-01~1991-05-01 |
01550-0830B-000 |
from US $1.06 |
||
|
4
|
4
01550-0830A-000 BOLTBolt, mount oil seal cover TYPE1; 1990-02-01~1991-05-01 |
01550-0830A-000 |
from US $1.12 |
||
|
5
|
5
17550-80701-000 PIPE,WATER INLETTYPE1; 1990-02-01~1991-05-01 |
17550-80701-000 |
US $163.20 |
||
|
6
|
6
17559-73000-H17
ガスケット,ウォータ,インレット
TYPE1; 1990-02-01~1991-05-01 |
17559-73000-H17 |
— | ||
| replacement | |||||
|
6
|
6
17559-73010-000 GASKET,WATER INLET PIPETYPE1; 1990-02-01~1991-05-01 |
17559-73010-000 |
from US $1.52 |
||
|
7
|
7
01550-06203-000
Bolt
TYPE1; 1990-02-01~1991-05-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
7
|
7
01550-0620B-000 BOLTBolt, inspection cap TYPE1; 1990-02-01~1991-05-01 |
01550-0620B-000 |
from US $0.76 |
||
|
8
|
8
17841-80000-000 HOSE,RADIATOR INLETTYPE1; 1990-02-01~1991-05-01 |
17841-80000-000 |
US $52.80 |
||
|
9
|
9
17851-60A00-000 HOSE,RADIATOR OUTLET NO.1TYPE1; 1990-02-01~1991-05-01 |
17851-60A00-000 |
from US $14.90 |
||
|
10
|
10
17860-83C00-000
パイプ,ラジエータ,アウトレット
TYPE1; 1990-02-01~1991-05-01 |
17860-83C00-000 |
— | ||
| replacement | |||||
|
10
|
10
17860-83C0V-000
パイプ,ラジエータ,アウトレット
TYPE1; 1990-02-01~1991-05-01 |
17860-83C0V-000 |
— | ||
|
11
|
11
01550-06123-000
Bolt
TYPE1; 1990-02-01~1991-05-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0612B-000 BOLTBolt, clamp TYPE1; 1990-02-01~1991-05-01 |
01550-0612B-000 |
from US $0.76 |
||
|
11
|
11
01550-0612A-000 BOLTTYPE1; 1990-02-01~1991-05-01 |
01550-0612A-000 |
from US $0.76 |
||
|
12
|
12
08316-10063-000
Nut
TYPE1; 1990-02-01~1991-05-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
12
|
12
08316-1006B-000 NUTTYPE1; 1990-02-01~1991-05-01 |
08316-1006B-000 |
from US $0.76 |
||
|
13
|
13
17852-83000-000 HOSE,RADIATOR OUTLET NO.2TYPE1; 1990-02-01~1991-05-01 |
17852-83000-000 |
US $35.72 |
||
|
14
|
14
09400-36311-000
クランプ
TYPE1; 1990-02-01~1991-05-01 |
09400-36311-000 |
— | ||
| replacement | |||||
|
14
|
14
09400-36312-000 CLAMPTYPE1; 1990-02-01~1991-05-01 |
09400-36312-000 |
from US $1.53 |
||
|
15
|
15
17871-80700-000
ホース,インテークツーバルブ
TYPE1; 1990-02-01~1991-05-01 |
17871-80700-000 |
— | ||
| replacements | |||||
|
15
|
15
09401-18404-000 CLIPTYPE1; 1990-02-01~1991-05-01 |
09401-18404-000 |
from US $1.26 |
||
|
15
|
15
17800-71810-000
HOSE SET,HEATER
TYPE1; 1990-02-01~1991-05-01 |
17800-71810-000 |
— | ||
|
16
|
16
09400-22312-000 CLAMPTYPE1; 1990-02-01~1991-05-01 |
09400-22312-000 |
from US $1.82 |
||
|
17
|
17
17872-83000-000
ホース,バルブツーヒータ
TYPE1; 1990-02-01~1991-05-01 |
17872-83000-000 |
— | ||
| replacements | |||||
|
17
|
17
09401-18404-000 CLIPTYPE1; 1990-02-01~1991-05-01 |
09401-18404-000 |
from US $1.26 |
||
|
17
|
17
17800-71810-000
HOSE SET,HEATER
TYPE1; 1990-02-01~1991-05-01 |
17800-71810-000 |
— | ||
|
18
|
18
17873-80700-000
ホース,ヒータツーインレット
TYPE1; 1990-02-01~1991-05-01 |
17873-80700-000 |
— | ||
| replacements | |||||
|
18
|
18
09401-18404-000 CLIPTYPE1; 1990-02-01~1991-05-01 |
09401-18404-000 |
from US $1.26 |
||
|
18
|
18
17873-80701-000
ホース,ヒータ(ヒータツーインレット)
TYPE1; 1990-02-01~1991-05-01 |
17873-80701-000 |
— | ||
|
19
|
19
09401-20402-000
Clip, air hose no.3
TYPE1; 1990-02-01~1991-05-01 |
09401-20402-000 |
— | ||
| replacement | |||||
|
19
|
19
09401-20406-000 CLIPTYPE1; 1990-02-01~1991-05-01 |
09401-20406-000 |
US $1.98 |
||
|
20
|
20
17859-80701-000 HOSE,WATER BYPASSTYPE1; 1990-02-01~1991-05-01 |
17859-80701-000 |
US $2.74 |
||
|
21
|
21
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) L:600>162; TYPE1; 1990-02-01~1991-05-01 |
09352-70121-600 |
from US $5.51 |
||
|
22
|
22
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) L:600>190; TYPE1; 1990-02-01~1991-05-01 |
09352-70121-600 |
from US $5.51 |
||
|
23
|
23
09401-11407-000
CLIP
TYPE1; 1990-02-01~1991-05-01 |
09401-11407-000 |
— | ||
| replacement | |||||
|
23
|
23
09401-11415-000 CLIPTYPE1; 1990-02-01~1991-05-01 |
09401-11415-000 |
from US $1.06 |
||
|
24
|
24
17950-82C00-000
パイプ,オイルクーラウォータ,インレット
TYPE1; 1990-02-01~1991-05-01 |
17950-82C00-000 |
— | ||
|
25
|
25
17955-82C00-000
ホース,オイルクーラツーターボ
TYPE1; 1990-02-01~1991-02-01 |
17955-82C00-000 |
— | ||
|
25
|
25
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) L:600>220; TYPE1; 1991-02-01~1991-05-01 |
09352-70121-600 |
from US $5.51 |
||
|
26
|
26
17960-82C00-000
パイプ,ターボウォータ,アウトレット
TYPE1; 1990-02-01~1991-05-01 |
17960-82C00-000 |
— | ||
| replacement | |||||
|
26
|
26
17960-82C0V-000
パイプ,ターボウォータ,アウトレット
TYPE1; 1990-02-01~1991-05-01 |
17960-82C0V-000 |
— | ||
|
27
|
27
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) L:600>85; TYPE1; 1990-02-01~1991-05-01 |
09352-70121-600 |
from US $5.51 |
||
|
28
|
28
01550-06103-000
Bolt, front
TYPE1; 1990-02-01~1991-05-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
28
|
28
01550-0610B-000 BoltBolt TYPE1; 1990-02-01~1991-05-01 |
01550-0610B-000 |
from US $0.80 |
||
|
28
|
28
01550-0610A-000 BOLTTYPE1; 1990-02-01~1991-05-01 |
01550-0610A-000 |
from US $0.80 |
||
|
29
|
29
01550-08123-000
Bolt
TYPE1; 1990-02-01~1991-05-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
29
|
29
01550-0812B-000 BoltPlug, drain TYPE1; 1990-02-01~1991-05-01 |
01550-0812B-000 |
from US $0.96 |
||
|
29
|
29
01550-0812A-000 BOLTTYPE1; 1990-02-01~1991-05-01 |
01550-0812A-000 |
from US $0.91 |
||
|
30
|
30
09356-58127-600 HOSE(5.8X12.2X600)Hose (p/r to v/s) L:600>180; TYPE1; 1990-02-01~1991-05-01 |
09356-58127-600 |
from US $15.84 |
||
|
31
|
31
09401-11409-000
クリップ
TYPE1; 1990-02-01~1991-05-01 |
09401-11409-000 |
— | ||
| replacements | |||||
|
31
|
31
09401-11413-000 CLIPTYPE1; 1990-02-01~1991-05-01 |
09401-11413-000 |
from US $0.96 |
||
|
31
|
31
09401-10409-000 CLIPTYPE1; 1990-02-01~1991-05-01 |
09401-10409-000 |
from US $1.12 |
||
|
32
|
32
09356-58127-600 HOSE(5.8X12.2X600)Hose (p/r to v/s) L:600>290; TYPE1; 1990-02-01~1991-05-01 |
09356-58127-600 |
from US $15.84 |
||
