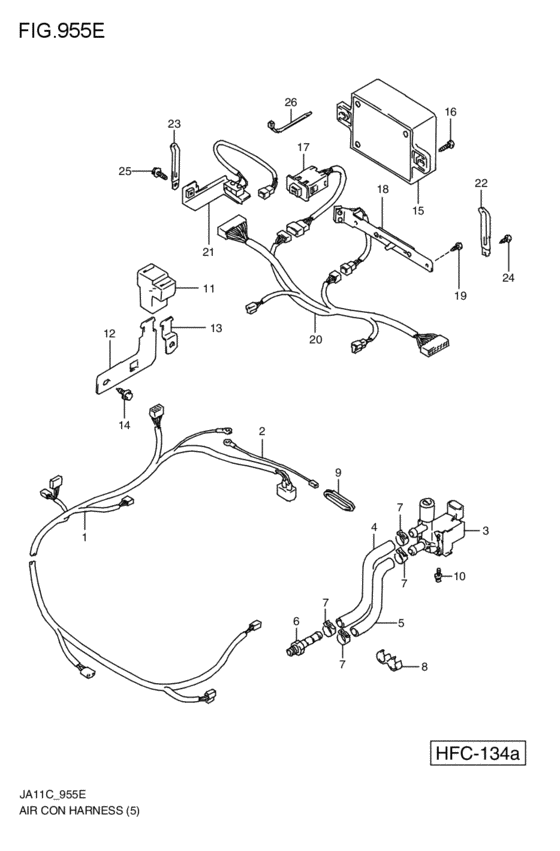

air-conditioner harness (オプション HFC-134A; AA,CC; 1990-02-01~1995-10-01) Diagram Suzuki JIMNY
- Year
- 1992 - 1994
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 4WD
- transmission
- 5MT
- grade
- CC
- type
- TYPE3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95581-82C60-000
ハーネス,エンジンルーム
AA,CC; 1990-02-01~1995-10-01 |
95581-82C60-000 |
— | ||
|
2
|
2
95585-86400-000 LINK,FUSIBLEAA,CC; 1990-02-01~1995-10-01 |
95585-86400-000 |
US $10.30 |
||
|
3
|
3
95161-60D00-000 VSV,IDLE UPAA,CC; 1990-02-01~1995-10-01 |
95161-60D00-000 |
US $68.40 |
||
|
4
|
4
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) L:600>200; AA,CC; 1990-02-01~1995-10-01 |
09355-70125-600 |
from US $6.17 |
||
| replacement | |||||
|
4
|
4
44421-12FR0-000 HOSEL:600>200; AA,CC; 1990-02-01~1995-10-01 |
44421-12FR0-000 |
from US $16.64 |
||
|
5
|
5
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) L:600>220; AA,CC; 1990-02-01~1995-10-01 |
09355-70125-600 |
from US $6.17 |
||
| replacement | |||||
|
5
|
5
44421-12FR0-000 HOSEL:600>220; AA,CC; 1990-02-01~1995-10-01 |
44421-12FR0-000 |
from US $16.64 |
||
|
6
|
6
09362-09010-000
UNION
AA,CC; 1990-02-01~1995-10-01 |
09362-09010-000 |
— | ||
|
7
|
7
09401-12404-000 CLIPClip AA,CC; 1990-02-01~1995-10-01 |
09401-12404-000 |
from US $1.52 |
||
|
8
|
8
09408-00043-000 CLAMPHolder, fuse case AA,CC; 1990-02-01~1995-10-01 |
09408-00043-000 |
US $9.60 |
||
|
9
|
9
09308-19001-000 GROMMETAA,CC; 1990-02-01~1995-10-01 |
09308-19001-000 |
US $23.20 |
||
|
10
|
10
02112-06083-000
Screw
AA,CC; 1990-02-01~1995-10-01 |
02112-06083-000 |
— | ||
| replacement | |||||
|
10
|
10
02112-0608A-000 SCREWAA,CC; 1990-02-01~1995-10-01 |
02112-0608A-000 |
from US $0.76 |
||
|
11
|
11
95576-73A00-000 RELAY ASSY,CLG FANAA,CC; 1990-02-01~1995-10-01 |
95576-73A00-000 |
US $29.62 |
||
|
12
|
12
95573-73A00-000
ブラケット,ファンリレー
AA,CC; 1990-02-01~1995-10-01 |
95573-73A00-000 |
— | ||
|
13
|
13
95981-73A00-000 BRACKET,FUSEAA,CC; 1990-02-01~1995-10-01 |
95981-73A00-000 |
US $6.15 |
||
|
14
|
14
09132-06010-000 SCREW(6X16)AA,CC; 1990-02-01~1995-10-01 |
09132-06010-000 |
from US $1.04 |
||
|
15
|
15
95575-73A02-000
コントローラアッシ
AA,CC; 1990-02-01~1995-10-01 |
95575-73A02-000 |
— | ||
|
16
|
16
03541-05163-000
Screw
AA,CC; 1990-02-01~1995-10-01 |
03541-05163-000 |
— | ||
| replacement | |||||
|
16
|
16
03541-0516A-000 SCREWAA,CC; 1990-02-01~1995-10-01 |
03541-0516A-000 |
from US $0.68 |
||
|
17
|
17
95571-73A00-000
スイッチ,エアコン
AA,CC; 1990-02-01~1995-10-01 |
95571-73A00-000 |
— | ||
|
18
|
18
95579-73A02-000
ボリュームアッシ
AA,CC; 1990-02-01~1995-10-01 |
95579-73A02-000 |
— | ||
|
19
|
19
03141-04123-000
Screw
AA,CC; 1990-02-01~1995-10-01 |
03141-04123-000 |
— | ||
| replacement | |||||
|
19
|
19
03142-0412B-000 SCREWAA,CC; 1990-02-01~1995-10-01 |
03142-0412B-000 |
from US $0.80 |
||
|
20
|
20
95582-73A01-000
ハーネス,インナ
AA,CC; 1990-02-01~1995-10-01 |
95582-73A01-000 |
— | ||
|
21
|
21
95572-55C00-000
スイッチアッシ,アクセルオフ
AA,CC; 1990-02-01~1995-10-01 |
95572-55C00-000 |
— | ||
|
22
|
22
09404-06206-000
CLAMP(L:45)
AA,CC; 1990-02-01~1995-10-01 |
09404-06206-000 |
— | ||
| replacements | |||||
|
22
|
22
09404-06432-000
CLAMP(L:65)
AA,CC; 1990-02-01~1995-10-01 |
09404-06432-000 |
— | ||
|
22
|
22
09404-06039-000 Clamp(L:65)AA,CC; 1990-02-01~1995-10-01 |
09404-06039-000 |
from US $1.82 |
||
|
22
|
22
09404-06031-000 Clamp,rsvr Tank Ovfl HoseAA,CC; 1990-02-01~1995-10-01 |
09404-06031-000 |
from US $1.37 |
||
|
23
|
23
09404-06208-000
Clamp
AA,CC; 1990-02-01~1995-10-01 |
09404-06208-000 |
— | ||
| replacements | |||||
|
23
|
23
09404-06434-000
CLAMP(L:80 T:1.0)
AA,CC; 1990-02-01~1995-10-01 |
09404-06434-000 |
— | ||
|
23
|
23
09404-06033-000 ClampAA,CC; 1990-02-01~1995-10-01 |
09404-06033-000 |
from US $1.43 |
||
|
23
|
23
09404-06036-000 Clamp(L:80)AA,CC; 1990-02-01~1995-10-01 |
09404-06036-000 |
from US $1.82 |
||
|
24
|
24
03141-06123-000
Screw 6x12
AA,CC; 1990-02-01~1995-10-01 |
03141-06123-000 |
— | ||
| replacement | |||||
|
24
|
24
03141-0612A-000 SCREWAA,CC; 1990-02-01~1995-10-01 |
03141-0612A-000 |
US $0.76 |
||
|
25
|
25
01550-06123-000
Bolt
AA,CC; 1990-02-01~1995-10-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-0612B-000 BOLTBolt, clamp AA,CC; 1990-02-01~1995-10-01 |
01550-0612B-000 |
from US $0.76 |
||
|
25
|
25
01550-0612A-000 BOLTAA,CC; 1990-02-01~1995-10-01 |
01550-0612A-000 |
from US $0.76 |
||
|
26
|
26
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap AA,CC; 1990-02-01~1995-10-01 |
09407-14403-000 |
from US $2.08 |
||
