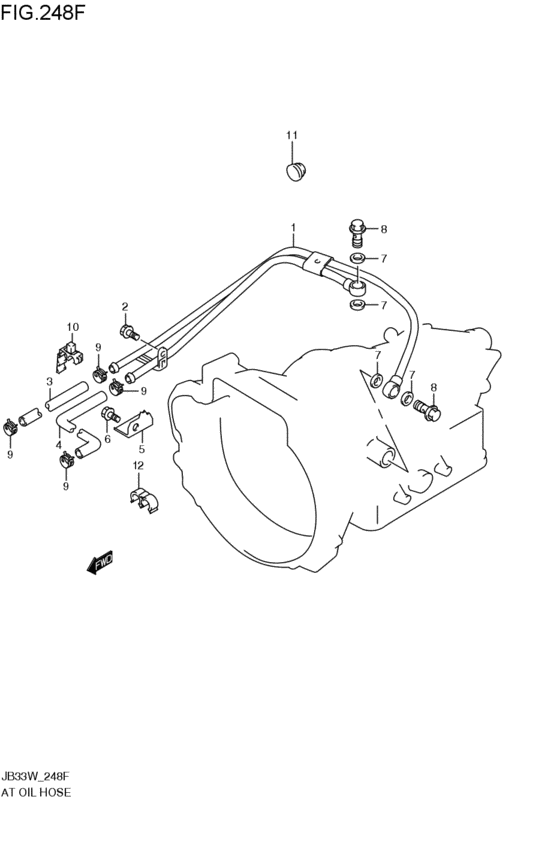

at - oil hose (AT; 1997-12-01~) Diagram Suzuki JIMNY
- Year
- 1997 - 2011
- Sales region
- Japan
- transmission
- AT
- grade
- JZ
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22910-81A11-000 PIPE,OILAT; 1997-12-01~ |
22910-81A11-000 |
US $54.46 |
||
|
2
|
2
02162-06103-000
Bolt
AT; 1997-12-01~ |
02162-06103-000 |
— | ||
| replacement | |||||
|
2
|
2
02162-0610A-000 SCREWAT; 1997-12-01~ |
02162-0610A-000 |
from US $0.64 |
||
|
3
|
3
22931-81A50-000
ホース,オイル,NO.1
AT; 1997-12-01~ |
22931-81A50-000 |
— | ||
| replacement | |||||
|
3
|
3
22931-81A30-000 HOSE,OIL NO.1AT; 1997-12-01~ |
22931-81A30-000 |
US $33.30 |
||
|
4
|
4
22932-81A50-000 HOSE,OIL NO.2AT; 1997-12-01~ |
22932-81A50-000 |
US $42.69 |
||
|
5
|
5
22934-61A00-000
Bracket,oil hose clamp,no.1
AT; 1997-12-01~ |
22934-61A00-000 |
— | ||
|
6
|
6
01550-10163-000
Bolt
AT; 1997-12-01~ |
01550-10163-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-1016B-000 BoltPlug, oil gallery AT; 1997-12-01~ |
01550-1016B-000 |
from US $0.96 |
||
|
6
|
6
01550-1016A-000 BoltPlug, oil gallery AT; 1997-12-01~ |
01550-1016A-000 |
from US $4.96 |
||
|
7
|
7
22913-65D10-000
ガスケット,オイルパイプ
AT; 1997-12-01~ |
22913-65D10-000 |
— | ||
| replacements | |||||
|
7
|
7
22913-59J10-000 GASKET,14X20X0.9AT; 1997-12-01~ |
22913-59J10-000 |
from US $1.51 |
||
|
7
|
7
22910-65810-000 BOLT&GASKET SETAT; 1997-12-01~ |
22910-65810-000 |
from US $9.38 |
||
|
8
|
8
09360-14012-000 BOLT,14X27Bolt, union (14x27) AT; 1997-12-01~ |
09360-14012-000 |
from US $6.88 |
||
|
9
|
9
09401-15408-000 CLIPClip, 2nd air cleaner hose no.2 AT; 1997-12-01~ |
09401-15408-000 |
from US $3.26 |
||
|
10
|
10
09403-14313-000 CLAMPAT; 1997-12-01~ |
09403-14313-000 |
US $2.40 |
||
|
11
|
11
09250-35005-000 CAP(OD:43.5)AT; 1997-12-01~ |
09250-35005-000 |
US $18 |
||
|
12
|
12
22938-81A10-000
クランプ,オイルホース
AT; 1997-12-01~1998-01-01 |
22938-81A10-000 |
— | ||
|
12
|
12
22938-81A30-000 CLAMP,OIL HOSE,NO.2AT; 1998-01-01~ |
22938-81A30-000 |
US $1.69 |
||
