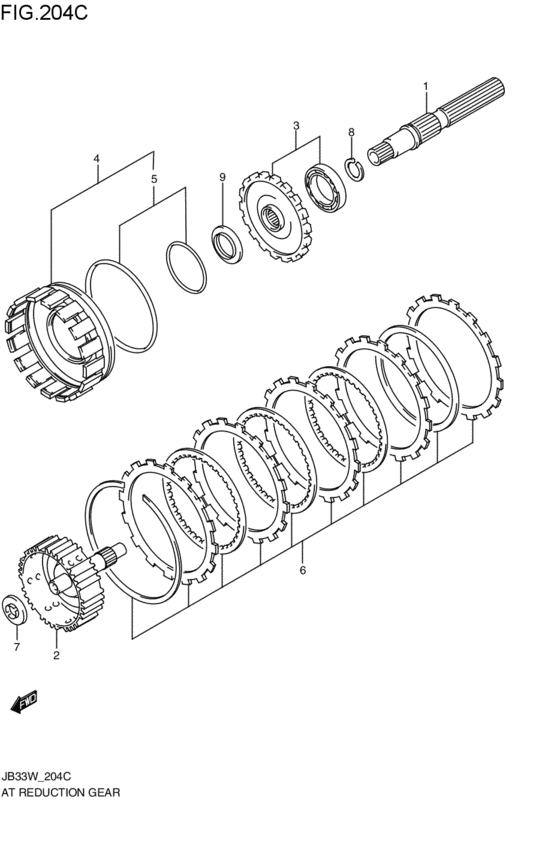

at - reduction gear (AT; 1997-12-01~) Diagram Suzuki JIMNY
- Year
- 1997 - 2011
- Sales region
- Japan
- transmission
- AT
- grade
- JZ
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24120-63H30-000
シャフトアッシ,アウトプツト
AT; 1997-12-01~ |
24120-63H30-000 |
— | ||
| replacement | |||||
|
1
|
1
24120-63H31-000
SHAFT,OUTPUT
AT; 1997-12-01~ |
24120-63H31-000 |
— | ||
|
2
|
2
24145-81A10-000 SHAFT ASSY,INTERMEDIATEAT; 1997-12-01~ |
24145-81A10-000 |
US $235.52 |
||
|
3
|
3
24180-81A10-000
GEAR ASSY,PARKING LOCK
AT; 1997-12-01~ |
24180-81A10-000 |
— | ||
|
4
|
4
26841-81AT0-000 PISTON SET,REV BKAT; 1997-12-01~ |
26841-81AT0-000 |
US $159.71 |
||
|
5
|
5
26843-81AT0-000 O-RING SET,REV BK PISTONAT; 1997-12-01~ |
26843-81AT0-000 |
US $12.95 |
||
|
6
|
6
26811-81AT0-000
ディスクセット,リバースブレーキ
AT; 1997-12-01~ |
26811-81AT0-000 |
— | ||
| replacement | |||||
|
6
|
6
26811-64HT0-000 DISC SET,REV BKAT; 1997-12-01~ |
26811-64HT0-000 |
US $327.52 |
||
|
7
|
7
24147-81A10-000
BEARING,INTERMEDIATE
AT; 1997-12-01~ |
24147-81A10-000 |
— | ||
|
8
|
8
24124-81C00-000 RING,PARKING LOCK SNAPAT; 1997-12-01~ |
24124-81C00-000 |
US $2.58 |
||
|
9
|
9
24943-75F10-000
BEARING,RR PLNTY THRUST
AT; 1997-12-01~ |
24943-75F10-000 |
— | ||
