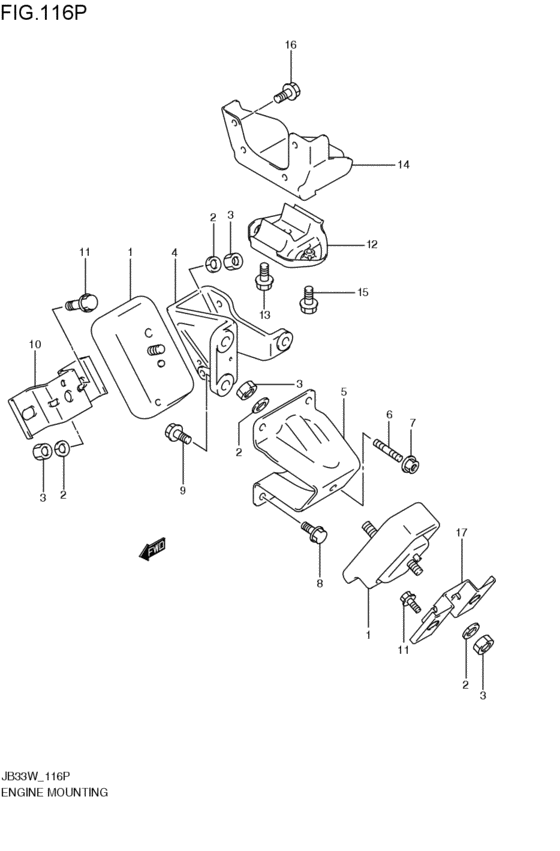

engine mounting (1997-12-01~) Diagram Suzuki JIMNY
- Year
- 1997 - 2011
- Sales region
- Japan
- transmission
- AT
- grade
- JZ
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-81A00-000 MOUNTING,ENG FR1997-12-01~ |
11610-81A00-000 |
from US $71.12 |
||
|
2
|
2
08321-01103-000
Washer
1997-12-01~ |
08321-01103-000 |
— | ||
| replacements | |||||
|
2
|
2
08321-0110B-000 WASHER,LOCKWasher, knuckle end 1997-12-01~ |
08321-0110B-000 |
from US $0.80 |
||
|
2
|
2
08321-0110A-000 WASHER,LOCK1997-12-01~ |
08321-0110A-000 |
from US $0.80 |
||
|
3
|
3
08310-00103-000
Nut
1997-12-01~ |
08310-00103-000 |
— | ||
| replacements | |||||
|
3
|
3
08310-0010B-000 NUT1997-12-01~ |
08310-0010B-000 |
from US $0.80 |
||
|
3
|
3
08310-0010A-000 NUT1997-12-01~ |
08310-0010A-000 |
from US $0.80 |
||
|
4
|
4
11641-81A00-000 BRACKET,ENG FR MTG,R1997-12-01~ |
11641-81A00-000 |
US $50.42 |
||
|
5
|
5
11651-81A00-000 BRACKET,ENG FR MTG,L1997-12-01~ |
11651-81A00-000 |
US $18.95 |
||
|
6
|
6
01421-10203-000
Bolt,stud
1997-12-01~ |
01421-10203-000 |
— | ||
| replacement | |||||
|
6
|
6
01421-1020A-000 BOLT,STUD1997-12-01~ |
01421-1020A-000 |
from US $3.96 |
||
|
7
|
7
08316-10103-000
Nut
1997-12-01~ |
08316-10103-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1010B-000 NUT1997-12-01~ |
08316-1010B-000 |
from US $0.80 |
||
|
8
|
8
01550-10203-000
Bolt
1997-12-01~ |
01550-10203-000 |
— | ||
| replacement | |||||
|
8
|
8
01550-1020A-000 BOLTBolt, bal sprocket 1997-12-01~ |
01550-1020A-000 |
from US $0.96 |
||
|
9
|
9
01570-10303-000
Bolt
1997-12-01~ |
01570-10303-000 |
— | ||
| replacement | |||||
|
9
|
9
01570-1030A-000 Bolt1997-12-01~ |
01570-1030A-000 |
from US $1.12 |
||
|
10
|
10
11661-81A00-000
BRACKET,FR MTG,FRM SIDE,R
1998-05-01~ |
11661-81A00-000 |
— | ||
|
10
|
10
11661-83000-000 BRACKET,ENG FR MTG FRAME SIDE1997-12-01~1998-05-01 |
11661-83000-000 |
US $8.06 |
||
|
11
|
11
09118-10070-000
Bolt,10x30
1997-12-01~ |
09118-10070-000 |
— | ||
| replacement | |||||
|
11
|
11
09118-10070-XC0 BOLT(10X30)1997-12-01~ |
09118-10070-XC0 |
US $23.60 |
||
|
12
|
12
11710-81A00-000
マウンチング,エンジン,リヤ
1997-12-01~ |
11710-81A00-000 |
— | ||
| replacement | |||||
|
12
|
12
11710-81A01-000 MOUNTING,ENG RR1997-12-01~ |
11710-81A01-000 |
from US $35.51 |
||
|
13
|
13
01550-08163-000
Bolt, holder
1997-12-01~ |
01550-08163-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0816B-000 BOLT1997-12-01~ |
01550-0816B-000 |
from US $0.91 |
||
|
13
|
13
01550-0816A-000 BOLTBolt, rear 1997-12-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
14
|
14
11740-81A00-000
ブラケット,リヤマウンチング
AT; 1997-12-01~ |
11740-81A00-000 |
— | ||
| replacement | |||||
|
14
|
14
11740-81A01-000
BRACKET,RR MTG
AT; 1997-12-01~ |
11740-81A01-000 |
— | ||
|
15
|
15
01550-08163-000
Bolt, holder
1997-12-01~ |
01550-08163-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0816B-000 BOLT1997-12-01~ |
01550-0816B-000 |
from US $0.91 |
||
|
15
|
15
01550-0816A-000 BOLTBolt, rear 1997-12-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
16
|
16
01550-08203-000
Bolt
1997-12-01~ |
01550-08203-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0820B-000 Bolt1997-12-01~ |
01550-0820B-000 |
from US $0.91 |
||
|
16
|
16
01550-0820A-000 BOLTBolt, funnel bracket 1997-12-01~ |
01550-0820A-000 |
from US $0.96 |
||
|
17
|
17
11661-83000-000 BRACKET,ENG FR MTG FRAME SIDE1997-12-01~1998-05-01 |
11661-83000-000 |
US $8.06 |
||
|
17
|
17
11671-81A00-000 BRACKET,FR MTG,FRM SIDE,L1998-05-01~ |
11671-81A00-000 |
US $15.68 |
||
