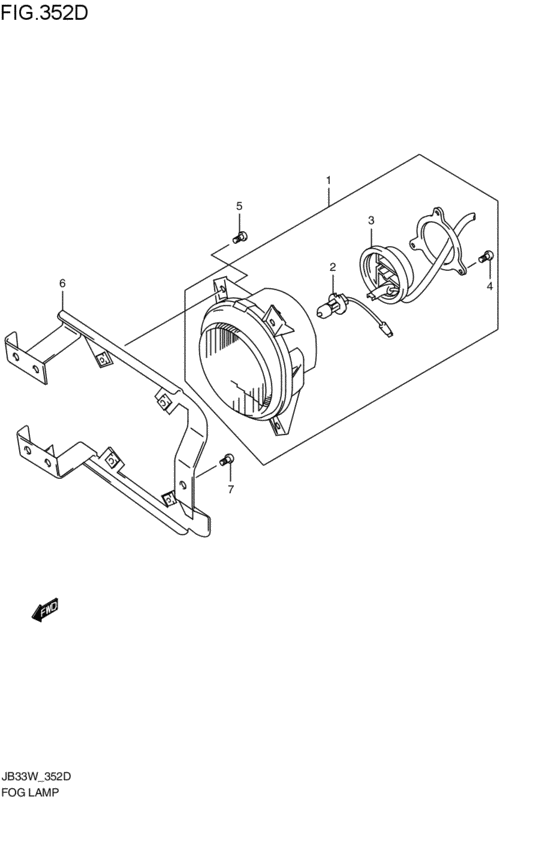

fog light (JZ; 1997-12-01~) Diagram Suzuki JIMNY
- Year
- 1997 - 2011
- Sales region
- Japan
- transmission
- AT
- grade
- JZ
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35500-74F30-000 LAMP ASSY,FOGJZ; 1997-12-01~ |
35500-74F30-000 |
US $172.22 |
||
|
2
|
2
09471-12194-000 BULB(12V35W,H3A)JZ; 1997-12-01~ |
09471-12194-000 |
US $423.20 |
||
|
3
|
3
35530-75F00-000 CORD,FOG LAMPJZ; 1997-12-01~ |
35530-75F00-000 |
US $26.13 |
||
|
4
|
4
03511-04123-000
Screw 4x12
JZ; 1997-12-01~ |
03511-04123-000 |
— | ||
| replacement | |||||
|
4
|
4
03511-0412A-000 SCREWJZ; 1997-12-01~ |
03511-0412A-000 |
from US $0.76 |
||
|
5
|
5
02162-05123-000
Screw
JZ; 1997-12-01~ |
02162-05123-000 |
— | ||
| replacement | |||||
|
5
|
5
02162-0512A-000 SCREWJZ; 1997-12-01~ |
02162-0512A-000 |
from US $0.80 |
||
|
6
|
6
35526-81A01-000 BRACKET,FOG LAMPJZ; 1997-12-01~ |
35526-81A01-000 |
US $18.24 |
||
|
7
|
7
03541-05163-000
Screw
JZ; 1997-12-01~ |
03541-05163-000 |
— | ||
| replacement | |||||
|
7
|
7
03541-0516A-000 SCREWJZ; 1997-12-01~ |
03541-0516A-000 |
from US $0.68 |
||
