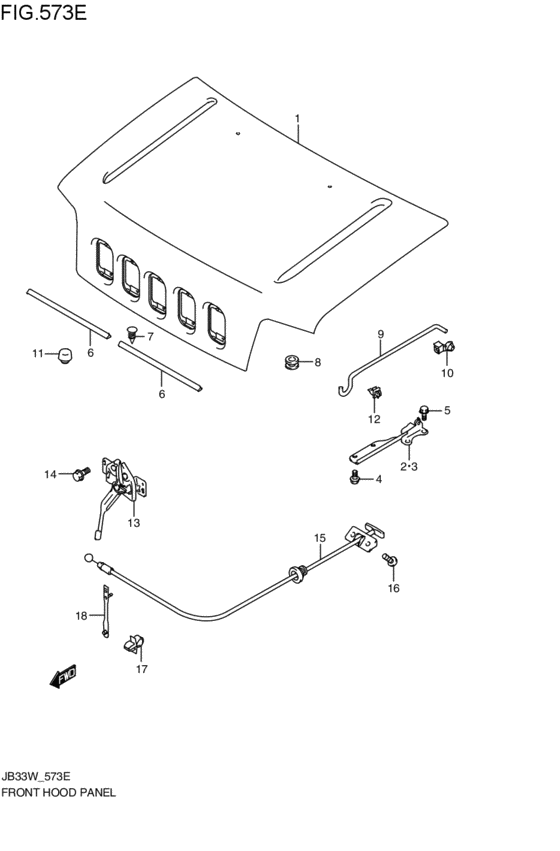

front hood (1997-12-01~) Diagram Suzuki JIMNY
- Year
- 1997 - 2011
- Sales region
- Japan
- transmission
- AT
- grade
- JZ
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58300-81880-000
パネルセット,フロントフード
1997-12-01~ |
58300-81880-000 |
— | ||
| replacement | |||||
|
1
|
1
58300-81883-000 PANEL ASSY,FRONT HOOD1997-12-01~ |
58300-81883-000 |
US $1,275.20 |
||
|
2
|
2
57410-50G00-000 HINGE,FR HOOD,R1997-12-01~ |
57410-50G00-000 |
US $65.60 |
||
|
3
|
3
57420-50G00-000 HINGE,FR HOOD,L1997-12-01~ |
57420-50G00-000 |
US $65.60 |
||
|
4
|
4
01550-08163-000
Bolt, holder
1997-12-01~ |
01550-08163-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0816B-000 BOLT1997-12-01~ |
01550-0816B-000 |
from US $0.91 |
||
|
4
|
4
01550-0816A-000 BOLTBolt, rear 1997-12-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
5
|
5
02162-06163-000
Screw
1997-12-01~ |
02162-06163-000 |
— | ||
| replacement | |||||
|
5
|
5
02162-0616B-000 SCREWBolt, adjust 1997-12-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
6
|
6
72351-81A00-000
シール,フード,フロント
1997-12-01~ |
72351-81A00-000 |
— | ||
| replacement | |||||
|
6
|
6
72351-57M60-000 SEAL,HOOD FR1997-12-01~ |
72351-57M60-000 |
US $15.04 |
||
|
7
|
7
09409-04304-000 CLIP1997-12-01~ |
09409-04304-000 |
from US $1.13 |
||
|
8
|
8
72372-82000-000 CUSHION,BACK DR SIDECushion 1997-12-01~ |
72372-82000-000 |
from US $2.12 |
||
|
9
|
9
72431-81A00-000 STAY,FRONT HOOD1997-12-01~ |
72431-81A00-000 |
US $10.01 |
||
|
10
|
10
09209-14001-000 LINKAGE1997-12-01~ |
09209-14001-000 |
from US $1.55 |
||
|
11
|
11
72372-50E00-000 CUSHION,FR HOOD FR NO.21997-12-01~ |
72372-50E00-000 |
from US $4.95 |
||
|
12
|
12
09403-07311-000 CLAMP1997-12-01~ |
09403-07311-000 |
from US $0.95 |
||
|
13
|
13
82110-81A00-000
ラッチ,フード
1997-12-01~ |
82110-81A00-000 |
— | ||
| replacement | |||||
|
13
|
13
82110-81A03-000 LATCH,HOOD1997-12-01~ |
82110-81A03-000 |
US $82.84 |
||
|
14
|
14
02162-06163-000
Screw
1997-12-01~ |
02162-06163-000 |
— | ||
| replacement | |||||
|
14
|
14
02162-0616B-000 SCREWBolt, adjust 1997-12-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
15
|
15
82160-81A00-000 CABLE,HOOD LATCH RELEASE1997-12-01~ |
82160-81A00-000 |
US $96 |
||
|
16
|
16
02142-05123-000
Screw 5x12
1997-12-01~ |
02142-05123-000 |
— | ||
| replacement | |||||
|
16
|
16
02142-0512A-000 SCREWScrew, lower 1997-12-01~ |
02142-0512A-000 |
from US $0.80 |
||
|
17
|
17
09403-06410-000 CLAMPClamp 1997-12-01~1999-06-01 |
09403-06410-000 |
from US $3.47 |
||
|
17
|
17
09403-06411-000
Clamp
1999-07-01~ |
09403-06411-000 |
— | ||
| replacement | |||||
|
17
|
17
09403-06412-000 CLAMP1999-07-01~ |
09403-06412-000 |
US $12.90 |
||
|
18
|
18
09407-05403-000 CLAMP,L:881997-12-01~ |
09407-05403-000 |
from US $0.91 |
||
