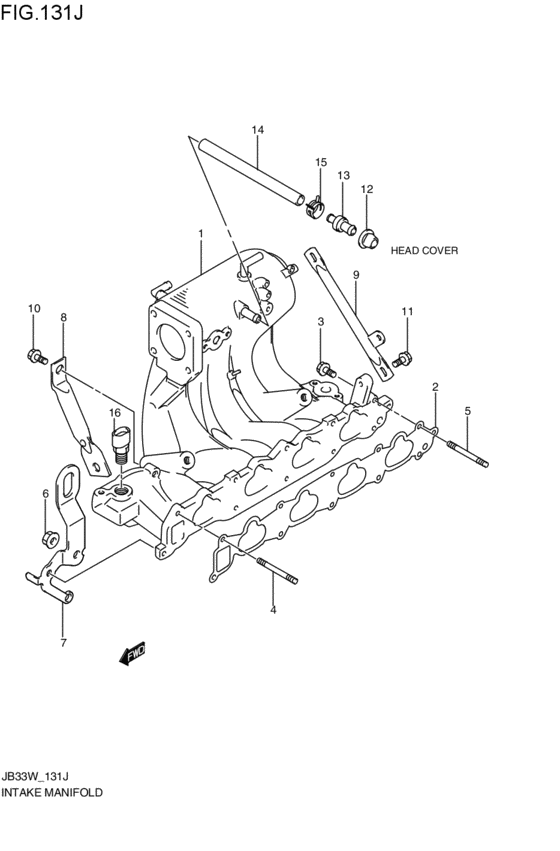

intake manifold (1997-12-01~) Diagram Suzuki JIMNY
- Year
- 1997 - 2011
- Sales region
- Japan
- transmission
- AT
- grade
- JZ
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-81A01-000
MANIFOLD,INTK
1997-12-01~ |
13110-81A01-000 |
— | ||
|
2
|
2
13119-57B00-000 GASKET,INTK MANFGasket, intake manifold 1997-12-01~ |
13119-57B00-000 |
from US $11.32 |
||
|
3
|
3
01550-08253-000
Bolt, rear
1997-12-01~ |
01550-08253-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0825B-000 BOLT1997-12-01~ |
01550-0825B-000 |
from US $0.96 |
||
|
3
|
3
01550-0825A-000 BOLT1997-12-01~ |
01550-0825A-000 |
from US $1.06 |
||
|
4
|
4
01421-08253-000
Stud bolt, no.2
1997-12-01~ |
01421-08253-000 |
— | ||
| replacement | |||||
|
4
|
4
01421-0825A-000 BOLT,STUD1997-12-01~ |
01421-0825A-000 |
from US $1.12 |
||
|
5
|
5
01421-08353-000
Bolt, stud
1997-12-01~ |
01421-08353-000 |
— | ||
| replacement | |||||
|
5
|
5
01421-0835A-000 BOLT,STUDStud bolt (8x35) 1997-12-01~ |
01421-0835A-000 |
from US $1.44 |
||
|
6
|
6
08316-10083-000
Nut
1997-12-01~ |
08316-10083-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1008B-000 NUT1997-12-01~ |
08316-1008B-000 |
from US $0.76 |
||
|
7
|
7
11852-57B01-000 HOOK,ENGINE1997-12-01~1998-04-01 |
11852-57B01-000 |
US $12.14 |
||
|
7
|
7
11852-66D01-000
フック,エンジン
1998-04-01~ |
11852-66D01-000 |
— | ||
| replacement | |||||
|
7
|
7
11852-66D02-000 HOOK,ENGINE NO.21998-04-01~ |
11852-66D02-000 |
US $8.91 |
||
|
8
|
8
13161-81A00-000 STIFFENER,INTK MANF LOWER1997-12-01~ |
13161-81A00-000 |
US $21.60 |
||
|
9
|
9
13166-81A00-000 STIFFENER,INTK MANF UPR1997-12-01~ |
13166-81A00-000 |
US $21.60 |
||
|
10
|
10
01550-10203-000
Bolt
1997-12-01~ |
01550-10203-000 |
— | ||
| replacement | |||||
|
10
|
10
01550-1020A-000 BOLTBolt, bal sprocket 1997-12-01~ |
01550-1020A-000 |
from US $0.96 |
||
|
11
|
11
01550-08163-000
Bolt, holder
1997-12-01~ |
01550-08163-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0816B-000 BOLT1997-12-01~ |
01550-0816B-000 |
from US $0.91 |
||
|
11
|
11
01550-0816A-000 BOLTBolt, rear 1997-12-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
12
|
12
11198-58B00-000 SEAL,PCV VALVESeal, pcv valve 1997-12-01~ |
11198-58B00-000 |
US $5.20 |
||
| replacement | |||||
|
12
|
12
11198-98L00-000 Seal,pcv Valve1997-12-01~ |
11198-98L00-000 |
from US $2.74 |
||
|
13
|
13
18118-58B00-000 VALVE,PCV1997-12-01~ |
18118-58B00-000 |
US $26.40 |
||
|
14
|
14
09354-80153-600 HOSE(8X15X600)L:600>140; 1997-12-01~ |
09354-80153-600 |
from US $19.60 |
||
|
15
|
15
09401-13414-000 CLIPClip, pcv hose 1997-12-01~ |
09401-13414-000 |
from US $1.60 |
||
|
16
|
16
13650-50G01-000 Sensor,water Temp1997-12-01~ |
13650-50G01-000 |
from US $66.62 |
||
