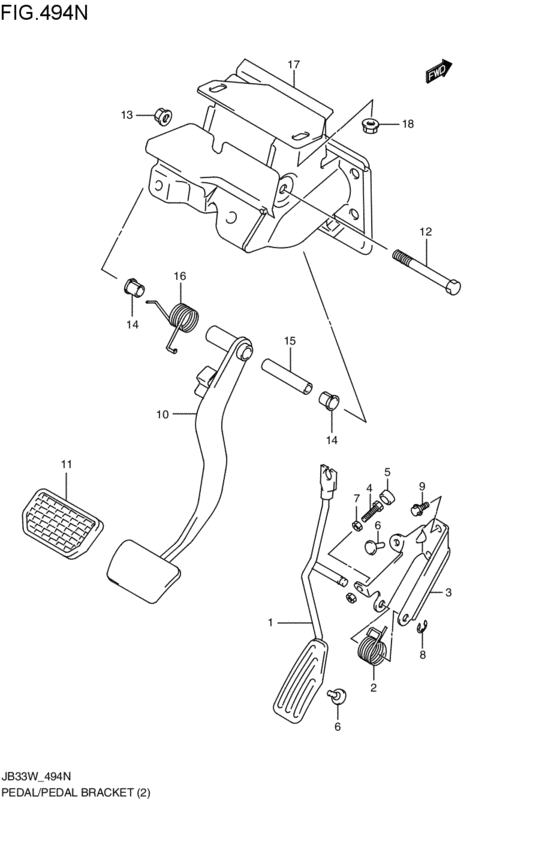

pedal / pedal bracket (AT; 1997-12-01~) Diagram Suzuki JIMNY
- Year
- 1997 - 2011
- Sales region
- Japan
- transmission
- AT
- grade
- JZ
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49410-81A00-000 PEDAL,ACCELERATORAT; 1997-12-01~ |
49410-81A00-000 |
US $47.20 |
||
|
2
|
2
49491-81A00-000
スプリング,アクセレレータペダル
AT; 1997-12-01~ |
49491-81A00-000 |
— | ||
| replacement | |||||
|
2
|
2
49491-81A02-000 SPRING,ACCELERATOR PEDALAT; 1997-12-01~ |
49491-81A02-000 |
US $5.37 |
||
|
3
|
3
49511-81A00-000 BRACKET,ACCELERATORAT; 1997-12-01~ |
49511-81A00-000 |
US $8.17 |
||
|
4
|
4
01550-06253-000
Bolt (6x25)
AT; 1997-12-01~ |
01550-06253-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0625B-000 BOLTBolt, head cover AT; 1997-12-01~ |
01550-0625B-000 |
from US $0.91 |
||
|
4
|
4
01550-0625A-000 BOLTBolt AT; 1997-12-01~ |
01550-0625A-000 |
from US $0.96 |
||
|
5
|
5
09251-09002-000
CAP(OD:13.6)
AT; 1997-12-01~ |
09251-09002-000 |
— | ||
| replacement | |||||
|
5
|
5
09251-09008-000 Cap(Od:13.6)AT; 1997-12-01~ |
09251-09008-000 |
from US $5.61 |
||
|
6
|
6
09321-06026-000 CUSHIONAT; 1997-12-01~ |
09321-06026-000 |
from US $1.60 |
||
|
7
|
7
08310-00063-000
Nut
AT; 1997-12-01~ |
08310-00063-000 |
— | ||
| replacements | |||||
|
7
|
7
08310-0006B-000 NUTNut gear shift link rod AT; 1997-12-01~ |
08310-0006B-000 |
from US $0.76 |
||
|
7
|
7
08310-0006A-000 NUTAT; 1997-12-01~ |
08310-0006A-000 |
from US $0.76 |
||
|
8
|
8
08332-11073-000
E ring
AT; 1997-12-01~ |
08332-11073-000 |
— | ||
| replacement | |||||
|
8
|
8
08332-1107A-000 E RINGAT; 1997-12-01~ |
08332-1107A-000 |
from US $0.96 |
||
|
9
|
9
01570-06123-000
Bolt
AT; 1997-12-01~ |
01570-06123-000 |
— | ||
| replacements | |||||
|
9
|
9
01570-0612B-000 BOLTBolt, upper AT; 1997-12-01~ |
01570-0612B-000 |
US $0.80 |
||
|
9
|
9
01570-0612A-000 BOLTBolt AT; 1997-12-01~ |
01570-0612A-000 |
from US $0.80 |
||
|
10
|
10
49610-81A10-000
ペダル,ブレーキ
AT; 1997-12-01~ |
49610-81A10-000 |
— | ||
| replacements | |||||
|
10
|
10
49610-81AB1-000 PEDAL,BRAKEAT; 1997-12-01~ |
49610-81AB1-000 |
US $54.83 |
||
|
10
|
10
49671-57M00-000 SPACER,BRAKE PEDAL SHAFTAT; 1997-12-01~ |
49671-57M00-000 |
US $3.02 |
||
|
11
|
11
49751-86300-000
Pad, brake pedal
AT; 1997-12-01~ |
49751-86300-000 |
— | ||
| replacement | |||||
|
11
|
11
49751-58J10-000 PAD,PEDALAT; 1997-12-01~ |
49751-58J10-000 |
from US $4.91 |
||
|
12
|
12
09100-10226-000 BOLT(10X85)AT; 1997-12-01~ |
09100-10226-000 |
US $14.40 |
||
|
13
|
13
08316-10103-000
Nut
AT; 1997-12-01~ |
08316-10103-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-1010B-000 NUTAT; 1997-12-01~ |
08316-1010B-000 |
from US $0.80 |
||
|
14
|
14
09307-13005-000 BUSHBushing AT; 1997-12-01~ |
09307-13005-000 |
from US $2.72 |
||
|
15
|
15
09180-10121-000 SPACER(10.1X13X73.8)AT; 1997-12-01~ |
09180-10121-000 |
US $30.20 |
||
|
16
|
16
49691-81A00-000 SPRING,BRAKE PEDALAT; 1997-12-01~ |
49691-81A00-000 |
US $5.85 |
||
|
17
|
17
49710-81A10-000
ブラケット,ペダル
AT; 1997-12-01~ |
49710-81A10-000 |
— | ||
| replacement | |||||
|
17
|
17
49710-81A00-000
Bracket comp,pedal
AT; 1997-12-01~ |
49710-81A00-000 |
— | ||
|
18
|
18
08316-10083-000
Nut
AT; 1997-12-01~ |
08316-10083-000 |
— | ||
| replacement | |||||
|
18
|
18
08316-1008B-000 NUTAT; 1997-12-01~ |
08316-1008B-000 |
from US $0.76 |
||
