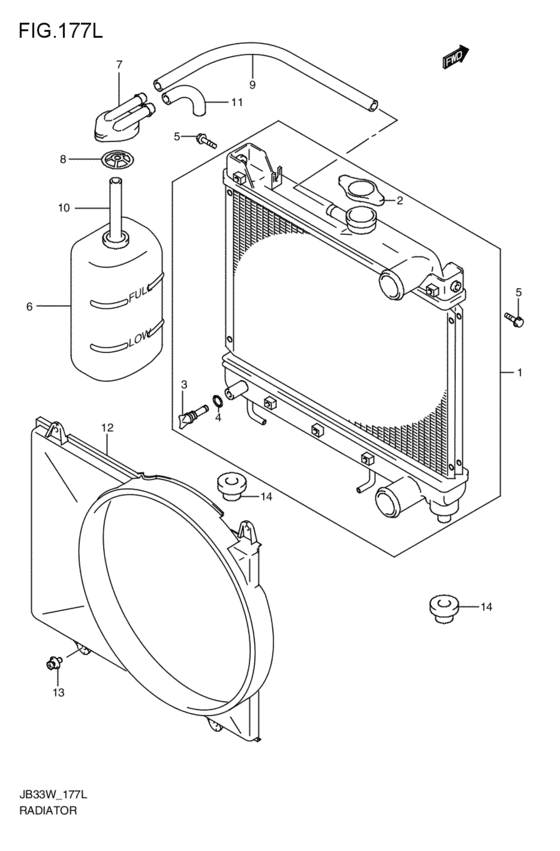

radiator (1997-12-01~) Diagram Suzuki JIMNY
- Year
- 1997 - 2011
- Sales region
- Japan
- transmission
- AT
- grade
- JZ
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17700-81A10-000
ラジエータアッシ
AT; 1997-12-01~1998-01-01 |
17700-81A10-000 |
— | ||
| replacements | |||||
|
1
|
1
17700-81A11-000 RADIATOR ASSYAT; 1997-12-01~1998-01-01 |
17700-81A11-000 |
US $739.20 |
||
|
1
|
1
22931-81A30-000 HOSE,OIL NO.1AT; 1997-12-01~1998-01-01 |
22931-81A30-000 |
US $33.30 |
||
|
1
|
1
22932-81A50-000 HOSE,OIL NO.2AT; 1997-12-01~1998-01-01 |
22932-81A50-000 |
US $42.69 |
||
|
1
|
1
22938-81A30-000 CLAMP,OIL HOSE,NO.2AT; 1997-12-01~1998-01-01 |
22938-81A30-000 |
US $1.69 |
||
|
1
|
1
17700-81A11-000 RADIATOR ASSYAT; 1998-01-01~ |
17700-81A11-000 |
US $739.20 |
||
|
2
|
2
17920-66F01-000 CAP,RADIATOR 1.11997-12-01~ |
17920-66F01-000 |
from US $22.55 |
||
|
3
|
3
17751-61A00-000 PLUG,DRAIN1997-12-01~ |
17751-61A00-000 |
US $4.32 |
||
|
4
|
4
17759-72010-000 O-RING1997-12-01~ |
17759-72010-000 |
US $1.52 |
||
|
5
|
5
02162-06253-000
Bolt
1997-12-01~ |
02162-06253-000 |
— | ||
| replacement | |||||
|
5
|
5
02162-0625A-000 SCREW1997-12-01~ |
02162-0625A-000 |
from US $0.76 |
||
|
6
|
6
17931-80F50-000 TANK,WATER RESERVE1997-12-01~ |
17931-80F50-000 |
from US $23.38 |
||
|
7
|
7
17932-60B10-000 CAP,WATER RESERVE TANK1997-12-01~ |
17932-60B10-000 |
from US $9.34 |
||
|
8
|
8
17933-60B00-000 RUBBER,WTR RSV TANK CAPRubber, tank cap 1997-12-01~ |
17933-60B00-000 |
from US $1.85 |
||
|
9
|
9
17938-81A10-000 HOSE,RDTR TO RSVR TANKL:520>480; 1997-12-01~ |
17938-81A10-000 |
from US $10.35 |
||
|
10
|
10
09352-70111-600 HOSE(7X11X600)L:600>220; 1997-12-01~ |
09352-70111-600 |
from US $6.84 |
||
|
11
|
11
17859-80701-000 HOSE,WATER BYPASS1997-12-01~ |
17859-80701-000 |
US $2.74 |
||
|
12
|
12
17761-81A00-000
SHROUD,FAN
1997-12-01~ |
17761-81A00-000 |
— | ||
|
13
|
13
02162-06123-000
Bolt (6x12)
1997-12-01~ |
02162-06123-000 |
— | ||
| replacements | |||||
|
13
|
13
02162-0612B-000 SCREWBolt 1997-12-01~ |
02162-0612B-000 |
from US $0.80 |
||
|
13
|
13
02162-0612A-000 SCREWBolt, bracket 1997-12-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
14
|
14
17812-82000-000 BUSHING,RADIATOR SUPPORT1997-12-01~ |
17812-82000-000 |
from US $1.80 |
||
