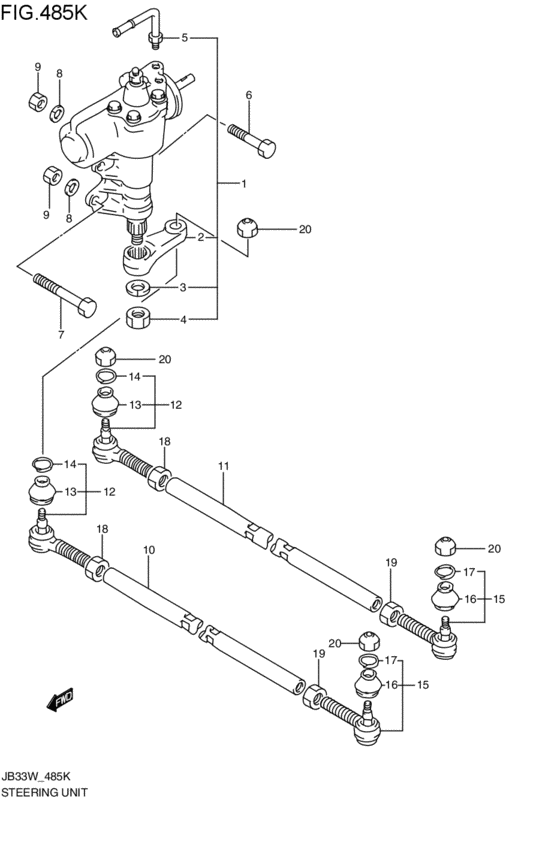

steering unit (1997-12-01~) Diagram Suzuki JIMNY
- Year
- 1997 - 2011
- Sales region
- Japan
- transmission
- AT
- grade
- JZ
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48600-81A20-000
BOX ASSY,POWER STRG GEAR
1997-12-01~ |
48600-81A20-000 |
— | ||
|
1
|
1
48600-81A20-111
ボックスアッシ,パワーステアリングギヤ
リビルト; 1997-12-01~ |
48600-81A20-111 |
— | ||
|
2
|
2
48671-81A20-000 ARM,PITMAN1997-12-01~ |
48671-81A20-000 |
US $91.26 |
||
|
3
|
3
08321-21208-000
Washer,lock 20m
1997-12-01~ |
08321-21208-000 |
— | ||
| replacement | |||||
|
3
|
3
48644-80010-000 WASHER,PITMAN ARM LOCK1997-12-01~ |
48644-80010-000 |
US $1.92 |
||
|
4
|
4
48674-63240-000 NUT1997-12-01~ |
48674-63240-000 |
US $5.92 |
||
|
5
|
5
48691-81A20-000 TUBE,RETURN1997-12-01~ |
48691-81A20-000 |
US $31.46 |
||
|
6
|
6
01500-12703-000
ボルト
1997-12-01~ |
01500-12703-000 |
— | ||
| replacement | |||||
|
6
|
6
01500-1270A-000 Bolt1997-12-01~ |
01500-1270A-000 |
US $1.60 |
||
|
7
|
7
01500-12903-000
New Genuine Part
1997-12-01~ |
01500-12903-000 |
— | ||
| replacement | |||||
|
7
|
7
01500-1290A-000 Bolt1997-12-01~ |
01500-1290A-000 |
US $1.82 |
||
|
8
|
8
08321-01123-000
Washer
1997-12-01~ |
08321-01123-000 |
— | ||
| replacement | |||||
|
8
|
8
08321-0112A-000 WASHER,LOCK1997-12-01~ |
08321-0112A-000 |
from US $0.76 |
||
|
9
|
9
08310-00123-000
Nut
1997-12-01~ |
08310-00123-000 |
— | ||
| replacement | |||||
|
9
|
9
08310-0012A-000 NUT1997-12-01~ |
08310-0012A-000 |
from US $0.76 |
||
|
10
|
10
48931-81A10-000 ROD,STRG DRAG1997-12-01~ |
48931-81A10-000 |
US $107.20 |
||
|
11
|
11
48831-81A10-000 TIE-ROD,STEERING1997-12-01~1998-06-01 |
48831-81A10-000 |
from US $89.46 |
||
|
11
|
11
48831-81A20-000 TIE-ROD STEERING1998-10-01~ |
48831-81A20-000 |
from US $89.06 |
||
|
12
|
12
48820-81A00-000
END, ROD RH
1997-12-01~ |
48820-81A00-000 |
— | ||
| replacements | |||||
|
12
|
12
04111-3020A-000 PIN1997-12-01~ |
04111-3020A-000 |
from US $0.61 |
||
|
12
|
12
08314-4012A-000 NUT1997-12-01~ |
08314-4012A-000 |
from US $0.95 |
||
|
12
|
12
48820-81A01-000 END,DRAG ROD,RH1997-12-01~ |
48820-81A01-000 |
US $81.60 |
||
|
13
|
13
48806-80000-000
BOOT SET
1997-12-01~ |
48806-80000-000 |
— | ||
| replacements | |||||
|
13
|
13
48806-80001-000
Boot Set
1997-12-01~ |
48806-80001-000 |
— | ||
|
13
|
13
48800-80810-000 Boot Set1997-12-01~ |
48800-80810-000 |
US $32 |
||
|
14
|
14
09401-27402-000 CLIP1997-12-01~ |
09401-27402-000 |
US $1.28 |
||
|
15
|
15
48810-81A00-000
END, ROD LH
1997-12-01~ |
48810-81A00-000 |
— | ||
| replacements | |||||
|
15
|
15
04111-3020A-000 PIN1997-12-01~ |
04111-3020A-000 |
from US $0.61 |
||
|
15
|
15
08314-4012A-000 NUT1997-12-01~ |
08314-4012A-000 |
from US $0.95 |
||
|
15
|
15
48810-81A01-000 END,DRAG ROD,L1997-12-01~ |
48810-81A01-000 |
from US $44.10 |
||
|
16
|
16
48806-80000-000
BOOT SET
1997-12-01~ |
48806-80000-000 |
— | ||
| replacements | |||||
|
16
|
16
48806-80001-000
Boot Set
1997-12-01~ |
48806-80001-000 |
— | ||
|
16
|
16
48800-80810-000 Boot Set1997-12-01~ |
48800-80810-000 |
US $32 |
||
|
17
|
17
09401-27402-000 CLIP1997-12-01~ |
09401-27402-000 |
US $1.28 |
||
|
18
|
18
09140-16023-000 NUTヒダリネジ; 1997-12-01~ |
09140-16023-000 |
from US $1.73 |
||
|
19
|
19
09140-16022-000 NUTミギネジ; 1997-12-01~ |
09140-16022-000 |
US $2.56 |
||
|
20
|
20
09159-12052-000 NUT1997-12-01~ |
09159-12052-000 |
US $1.44 |
||
