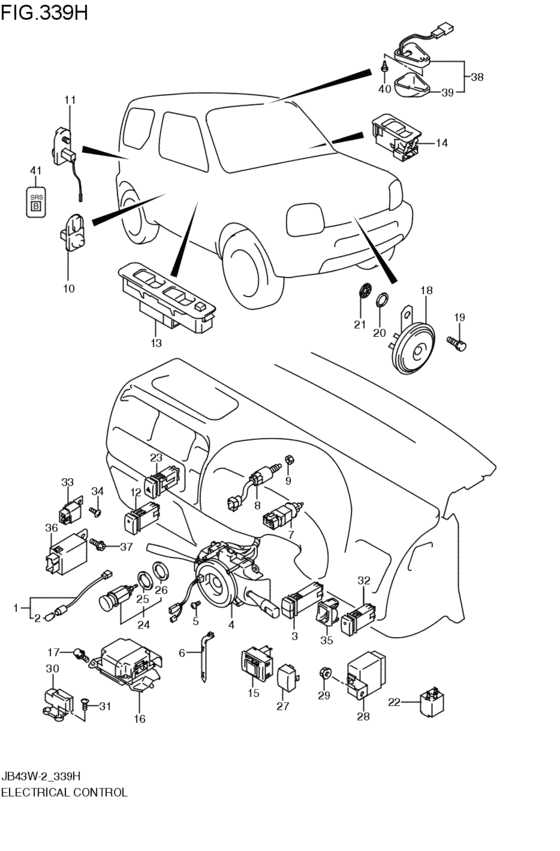

electrical control (2000-04-01~2001-12-01) Diagram Suzuki JIMNY
- Year
- 2000 - 2011
- Sales region
- Japan
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36550-60E00-000 LAMP ASSY,ASHTRAY ILLUM2000-04-01~2001-12-01 |
36550-60E00-000 |
US $21.90 |
||
|
2
|
2
09471-12091-000 BULB(12V1.4W G30)2000-04-01~2001-12-01 |
09471-12091-000 |
US $28 |
||
|
3
|
3
37370-75F10-000 SWITCH ASSY,RR WIPER&WASHER2000-04-01~2001-12-01 |
37370-75F10-000 |
US $118.86 |
||
|
4
|
4
37400-81A72-000
スイッチアッシ,コンビネーション
2000-04-01~2001-12-01 |
37400-81A72-000 |
— | ||
| replacement | |||||
|
4
|
4
37400-81A73-000 SWITCH ASSY,COMB2000-04-01~2001-12-01 |
37400-81A73-000 |
US $608 |
||
|
5
|
5
02112-05123-000
Screw 5x12
2000-04-01~2001-12-01 |
02112-05123-000 |
— | ||
| replacement | |||||
|
5
|
5
02112-0512A-000 SCREW2000-04-01~2001-12-01 |
02112-0512A-000 |
from US $0.80 |
||
|
6
|
6
09407-25401-000 CLAMP(L:235)Clamp (l:235) 2000-04-01~2001-12-01 |
09407-25401-000 |
from US $2.08 |
||
|
7
|
7
37740-76G00-000
スイッチアッシ,ストップランプ
MT; 2000-04-01~2001-12-01 |
37740-76G00-000 |
— | ||
| replacement | |||||
|
7
|
7
37740-80G10-000 SWITCH ASSY,STOP LAMPMT; 2000-04-01~2001-12-01 |
37740-80G10-000 |
US $27.97 |
||
|
8
|
8
37970-76F00-000
スイッチアッシ,クラッチスタート
MT; 2000-04-01~2001-12-01 |
37970-76F00-000 |
— | ||
| replacement | |||||
|
8
|
8
37970-76F02-000 SWITCH ASSY,CLUTCH STARTMT; 2000-04-01~2001-12-01 |
37970-76F02-000 |
US $21.34 |
||
|
9
|
9
09140-10043-000 NUTNut, tie rod rh thread MT; 2000-04-01~2001-12-01 |
09140-10043-000 |
from US $0.91 |
||
|
10
|
10
37670-65D00-000
Switch assy,door
2000-04-01~2001-12-01 |
37670-65D00-000 |
— | ||
| replacement | |||||
|
10
|
10
37670-65D01-000 SWITCH ASSY,DOOR2000-04-01~2001-12-01 |
37670-65D01-000 |
from US $8.17 |
||
|
11
|
11
37670-79E00-000
Switch assy,trunk
2000-04-01~2001-12-01 |
37670-79E00-000 |
— | ||
| replacement | |||||
|
11
|
11
37670-79E01-000 SWITCH ASSY,TRUNK2000-04-01~2001-12-01 |
37670-79E01-000 |
US $17.19 |
||
|
12
|
12
37860-75F10-000 SWITCH ASSY,RR DEFOGGER2000-04-01~2001-12-01 |
37860-75F10-000 |
US $50.05 |
||
|
13
|
13
37990-81A01-T01 SWITCH ASSY,P/W MAINグレ-; 2000-04-01~2001-12-01 |
37990-81A01-T01 |
US $508.80 |
||
|
14
|
14
37995-75F00-T01 SWITCH ASSY,P/W SUBSwitch assy, power window sub (gray) グレ-; 2000-04-01~2001-12-01 |
37995-75F00-T01 |
from US $65.66 |
||
|
15
|
15
37950-75F00-000 SWITCH ASSY,MIRROR2000-04-01~2001-12-01 |
37950-75F00-000 |
US $60.05 |
||
|
16
|
16
38910-81AB0-000
コントローラアッシ,エアバッグ
2000-04-01~2001-12-01 |
38910-81AB0-000 |
— | ||
|
17
|
17
09115-06001-000
Bolt, lh
2000-04-01~2001-12-01 |
09115-06001-000 |
— | ||
| replacement | |||||
|
17
|
17
09115-06005-000 BOLT(6X16)2000-04-01~2001-12-01 |
09115-06005-000 |
US $1.28 |
||
|
18
|
18
38500-75F00-000 HORN ASSY2000-04-01~2001-12-01 |
38500-75F00-000 |
US $71.39 |
||
|
19
|
19
01570-08123-000
Bolt
2000-04-01~2001-12-01 |
01570-08123-000 |
— | ||
| replacement | |||||
|
19
|
19
01570-0812A-000 Bolt2000-04-01~2001-12-01 |
01570-0812A-000 |
US $14.40 |
||
|
20
|
20
09160-08501-000 WASHER(8.5X24X2.3)Washer 2000-04-01~2001-12-01 |
09160-08501-000 |
from US $1.60 |
||
|
21
|
21
38570-65D00-000 STOPPER,HORN2000-04-01~2001-12-01 |
38570-65D00-000 |
US $1.62 |
||
|
22
|
22
38610-84002-000
リレー,ターンシグナル/4ウェイ
2000-04-01~2001-12-01 |
38610-84002-000 |
— | ||
| replacement | |||||
|
22
|
22
38610-76G00-000 RELAY,TURN SIGNAL&4WAYRelay, turnsignal & 4 way 2000-04-01~2001-12-01 |
38610-76G00-000 |
US $56.80 |
||
|
23
|
23
37430-76G00-000 SWITCH ASSY,HAZARD WARNING2000-04-01~2001-12-01 |
37430-76G00-000 |
US $40.85 |
||
|
24
|
24
39400-84811-000 LIGHTER ASSY,CIGARETTELighter assy, cigarette 2000-04-01~2001-12-01 |
39400-84811-000 |
US $14.40 |
||
|
25
|
25
39471-84000-000 RIM,CIGAR LIGHTER2000-04-01~2001-12-01 |
39471-84000-000 |
US $16 |
||
|
26
|
26
09160-23007-000 WASHER(23X34X1)2000-04-01~2001-12-01 |
09160-23007-000 |
US $15.50 |
||
|
27
|
27
37285-75F10-000 CAP,OPTION SW HOLE2000-04-01~2001-12-01 |
37285-75F10-000 |
US $2.80 |
||
|
28
|
28
38885-82C00-000 CONTROLLER ASSY,4WD2000-04-01~2001-12-01 |
38885-82C00-000 |
US $200 |
||
|
29
|
29
08316-10063-000
Nut
2000-04-01~2001-12-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
29
|
29
08316-1006B-000 NUT2000-04-01~2001-12-01 |
08316-1006B-000 |
from US $0.76 |
||
|
30
|
30
33945-82C10-000 SENSOR ASSY,G2000-04-01~2001-12-01 |
33945-82C10-000 |
US $283.36 |
||
|
31
|
31
02142-06163-000
Screw
2000-04-01~2001-12-01 |
02142-06163-000 |
— | ||
| replacement | |||||
|
31
|
31
02142-0616A-000 SCREW2000-04-01~2001-12-01 |
02142-0616A-000 |
from US $0.76 |
||
|
32
|
32
37270-75F10-000 SWITCH ASSY,FR FOG LAMP2000-04-01~2001-12-01 |
37270-75F10-000 |
US $91.20 |
||
|
33
|
33
95572-63C00-000 RELAY ASSY2000-04-01~2001-12-01 |
95572-63C00-000 |
US $42.69 |
||
|
34
|
34
02142-05123-000
Screw 5x12
2000-04-01~2001-12-01 |
02142-05123-000 |
— | ||
| replacement | |||||
|
34
|
34
02142-0512A-000 SCREWScrew, lower 2000-04-01~2001-12-01 |
02142-0512A-000 |
from US $0.80 |
||
|
35
|
35
37285-64G00-000 CASE,COIN2000-04-01~2001-12-01 |
37285-64G00-000 |
US $9.60 |
||
|
36
|
36
37190-81A50-000
コントローラ,キーレス/ドアロック
キーレス & ドアロックコントローラ; 2000-10-01~2001-02-01 |
37190-81A50-000 |
— | ||
|
36
|
36
37190-81A51-000
コントローラ,キーレス/ドアロック
キーレス & ドアロックコントローラ; 2001-02-01~2001-12-01 |
37190-81A51-000 |
— | ||
|
36
|
36
38700-76G13-000 CONTROLLER,PWR DR LOCK2000-04-01~2000-10-01 |
38700-76G13-000 |
US $110.40 |
||
|
37
|
37
02162-05123-000
Screw
2000-04-01~2001-12-01 |
02162-05123-000 |
— | ||
| replacement | |||||
|
37
|
37
02162-0512A-000 SCREW2000-04-01~2001-12-01 |
02162-0512A-000 |
from US $0.80 |
||
|
38
|
38
37190-76G10-000
SWITCH ASSY,RECEIVER KEYLESS
2000-04-01~2000-10-01 |
37190-76G10-000 |
— | ||
|
39
|
39
37193-76G10-000 LENS,KEY LESS RECEIVER2000-04-01~2000-10-01 |
37193-76G10-000 |
US $4.05 |
||
|
40
|
40
03511-04083-000
Screw
2000-04-01~2000-10-01 |
03511-04083-000 |
— | ||
| replacement | |||||
|
40
|
40
03511-0408B-000 SCREW2000-04-01~2000-10-01 |
03511-0408B-000 |
US $10.30 |
||
|
41
|
41
38918-76G00-000 LABEL,AIR BAG(MARK B)マークB; 2000-04-01~2001-12-01 |
38918-76G00-000 |
US $2.87 |
||
