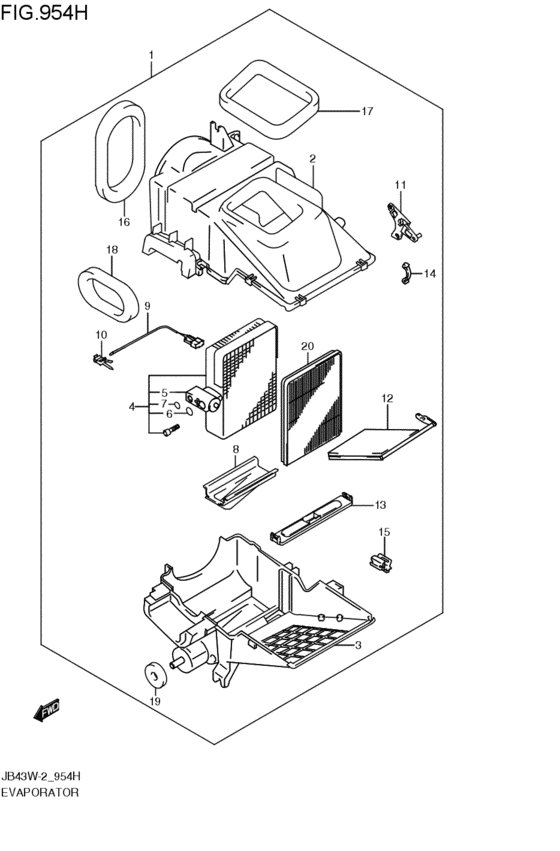

evaporator (2000-04-01~2001-12-01) Diagram Suzuki JIMNY
- Year
- 2000 - 2011
- Sales region
- Japan
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95400-81812-000
クーリングユニット
2000-04-01~2001-12-01 |
95400-81812-000 |
— | ||
| replacement | |||||
|
1
|
1
95400-81815-000 COOLING UNIT2000-04-01~2001-12-01 |
95400-81815-000 |
US $630.08 |
||
|
2
|
2
95421-81A00-000
CASE,EVAP,UPPER
2000-04-01~2001-12-01 |
95421-81A00-000 |
— | ||
|
3
|
3
95422-81A00-000 CASE,EVAP,LOWER2000-04-01~2001-12-01 |
95422-81A00-000 |
US $15.36 |
||
|
4
|
4
95410-81A50-000 EVAPORATOR ASSYシヨウワアルミ; 2000-04-01~2001-12-01 |
95410-81A50-000 |
US $219.20 |
||
|
5
|
5
95431-81A00-000 VALVE,EXPANSION CALSONIC GOLDカルソニック; 2000-04-01~2001-12-01 |
95431-81A00-000 |
from US $56.80 |
||
|
6
|
6
95895-50G00-000 O-RING,D:2.4 ID:10.82000-04-01~2001-12-01 |
95895-50G00-000 |
from US $1.28 |
||
|
7
|
7
95896-50G00-000 O-RING,D:2.4 ID:13.4O ring (d:2.5,id:13.4) 2000-04-01~2001-12-01 |
95896-50G00-000 |
from US $1.28 |
||
|
8
|
8
95461-81A02-000 PACKING,CORE LOWER2000-04-01~2001-12-01 |
95461-81A02-000 |
US $6.72 |
||
|
9
|
9
95541-81A02-000 THERMISTOR,EVAP2000-04-01~2001-12-01 |
95541-81A02-000 |
from US $10.03 |
||
|
10
|
10
95452-70B21-000
CLAMP,THERMISTER
DENSO; 2000-04-01~2001-12-01 |
95452-70B21-000 |
— | ||
|
11
|
11
74281-81A00-000 LINK,DR2000-04-01~2001-12-01 |
74281-81A00-000 |
US $5.89 |
||
|
12
|
12
74270-81A00-000
Door set, air inlet
2000-04-01~2001-12-01 |
74270-81A00-000 |
— | ||
| replacement | |||||
|
12
|
12
74270-81A01-000 DOOR SET,AIR INLET2000-04-01~2001-12-01 |
74270-81A01-000 |
US $26.13 |
||
|
13
|
13
95423-81A01-000 COVER,FILTER2000-04-01~2001-12-01 |
95423-81A01-000 |
from US $4.04 |
||
|
14
|
14
74316-85500-000 CLAMPClamp, case 2000-04-01~2001-12-01 |
74316-85500-000 |
US $1.82 |
||
|
15
|
15
74151-50F00-000 CABLE2000-04-01~2001-12-01 |
74151-50F00-000 |
US $3.09 |
||
|
16
|
16
95461-70B01-000 PACKING,HEATERPacking, unit outlet 2000-04-01~2001-12-01 |
95461-70B01-000 |
US $4.80 |
||
|
17
|
17
95462-80F00-000 PACKING,AIR DAMPER2000-04-01~2001-12-01 |
95462-80F00-000 |
US $7.68 |
||
|
18
|
18
95465-78F10-000 PACKING,DASH2000-04-01~2001-12-01 |
95465-78F10-000 |
US $9.60 |
||
|
19
|
19
95466-81A00-000 PACKING,DRAIN2000-04-01~2001-12-01 |
95466-81A00-000 |
US $2.56 |
||
|
20
|
20
95860-81A10-000 FILTER2000-04-01~2001-12-01 |
95860-81A10-000 |
from US $31.92 |
||
