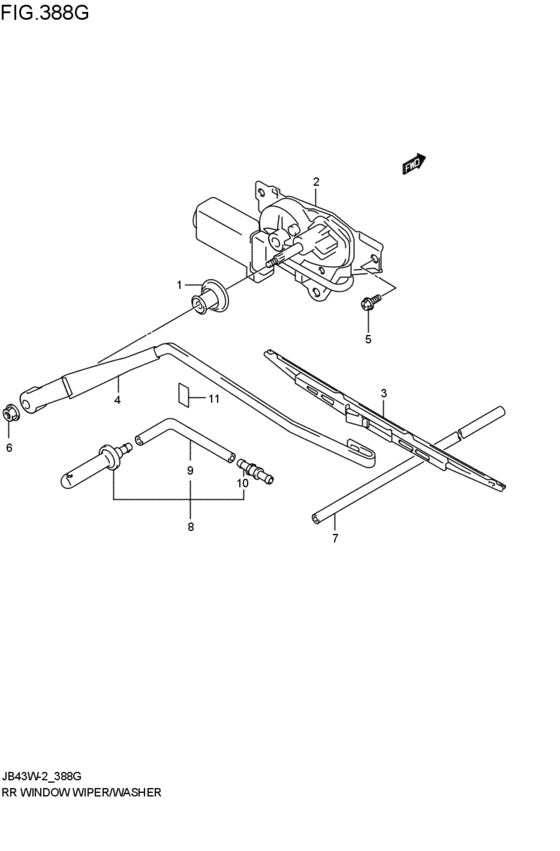

rear wind windshield wiper / washer (2000-04-01~2001-12-01) Diagram Suzuki JIMNY
- Year
- 2000 - 2011
- Sales region
- Japan
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38274-81A00-000 CAP,WIPER PIVOT2000-04-01~2001-12-01 |
38274-81A00-000 |
from US $3.67 |
||
|
2
|
2
38810-81A01-000 WIPER ASSY,RR WINDOW2000-04-01~2001-12-01 |
38810-81A01-000 |
US $268.64 |
||
|
3
|
3
38340-81A20-000 BLADE ASSY,RR WIPER2000-04-01~2001-12-01 |
38340-81A20-000 |
from US $12.40 |
||
|
4
|
4
38821-81A00-000 ARM ASSY,RR WIPER2000-04-01~2001-12-01 |
38821-81A00-000 |
from US $31.21 |
||
|
5
|
5
02162-06123-000
Bolt (6x12)
2000-04-01~2001-12-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
5
|
5
02162-0612B-000 SCREWBolt 2000-04-01~2001-12-01 |
02162-0612B-000 |
from US $0.80 |
||
|
5
|
5
02162-0612A-000 SCREWBolt, bracket 2000-04-01~2001-12-01 |
02162-0612A-000 |
from US $0.80 |
||
|
6
|
6
08316-10063-000
Nut
2000-04-01~2001-12-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1006B-000 NUT2000-04-01~2001-12-01 |
08316-1006B-000 |
from US $0.76 |
||
|
7
|
7
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) L:1300>1080; 2000-04-01~2001-12-01 |
38491-61A00-000 |
US $5.12 |
||
|
8
|
8
38840-81A00-000 NOZZLE ASSY,RR WASHER2000-04-01~2001-12-01 |
38840-81A00-000 |
from US $12.74 |
||
|
9
|
9
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) L:1300>150; 2000-04-01~2001-12-01 |
38491-61A00-000 |
US $5.12 |
||
|
10
|
10
38496-61A00-000 VALVE,CHECK2000-04-01~2001-12-01 |
38496-61A00-000 |
from US $1.71 |
||
|
11
|
11
36930-82010-000 COVER,HARNESSCover, roof wire 2000-04-01~2001-12-01 |
36930-82010-000 |
from US $1.73 |
||
