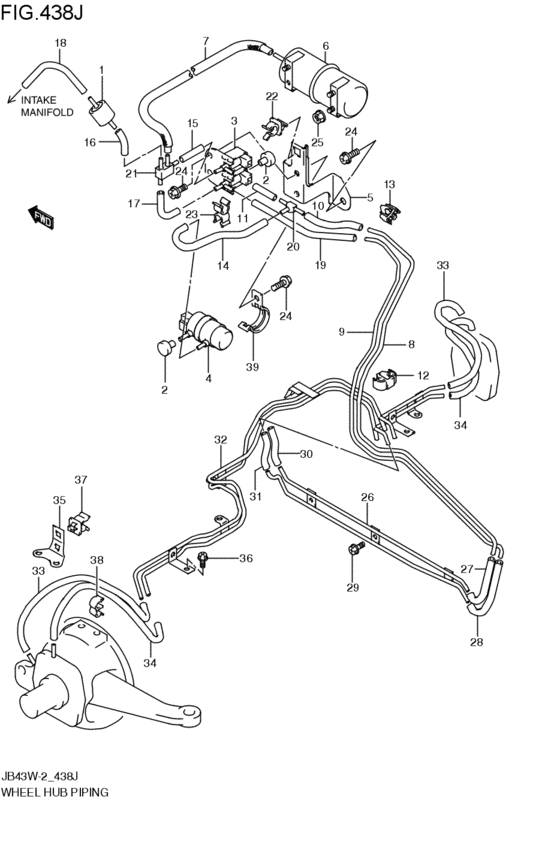

wheel hub piping (ホイールハブパイピング; 2000-04-01~2001-12-01) Diagram Suzuki JIMNY
- Year
- 2000 - 2011
- Sales region
- Japan
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18131-82150-000 VALVE,CHECK2000-04-01~2001-12-01 |
18131-82150-000 |
from US $10.37 |
||
|
2
|
2
18133-80401-000 FILTER2000-04-01~2001-12-01 |
18133-80401-000 |
from US $4.56 |
||
|
3
|
3
27951-85600-000 VALVE,VACUUM SWITCH2000-04-01~2001-12-01 |
27951-85600-000 |
from US $105.71 |
||
|
4
|
4
43830-82CB0-000 SWITCH,VACUUM2000-04-01~2001-12-01 |
43830-82CB0-000 |
US $92 |
||
|
5
|
5
43840-81A00-000
ブラケット,バキュームスイッチングバルブ
2000-04-01~2001-12-01 |
43840-81A00-000 |
— | ||
| replacement | |||||
|
5
|
5
43840-81A01-000 BRACKET,VSV2000-04-01~2001-12-01 |
43840-81A01-000 |
US $11.85 |
||
|
6
|
6
43850-81A00-000 TANK,VACUUM ACCUMLATION2000-04-01~2001-12-01 |
43850-81A00-000 |
US $53.36 |
||
|
7
|
7
43856-81A00-000 HOSE,VACUUM TANK2000-04-01~2001-12-01 |
43856-81A00-000 |
from US $10.49 |
||
|
8
|
8
43871-81A00-000 PIPE,VALVE TO ARM 4WD2000-04-01~2001-12-01 |
43871-81A00-000 |
US $20.79 |
||
|
9
|
9
43872-81A00-000 PIPE,VALVE TO ARM 2WD2000-04-01~2001-12-01 |
43872-81A00-000 |
US $19.69 |
||
|
10
|
10
09355-35754-601
HOSE(3.5X7.5X601)
L:601>60; 2000-04-01~2001-12-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
10
|
10
09355-35006-601 Hose(3.5X7.5X601)L:601>60; 2000-04-01~2001-12-01 |
09355-35006-601 |
from US $5.74 |
||
|
11
|
11
09355-35754-601
HOSE(3.5X7.5X601)
L:601>30; 2000-04-01~2001-12-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
11
|
11
09355-35006-601 Hose(3.5X7.5X601)L:601>30; 2000-04-01~2001-12-01 |
09355-35006-601 |
from US $5.74 |
||
|
12
|
12
51751-60B00-000 CLAMP,BRAKE PIPE2000-04-01~2001-12-01 |
51751-60B00-000 |
US $1.60 |
||
|
13
|
13
51761-70F00-000 CLAMP,BK PIPE SIDE MEMBER2000-04-01~2001-12-01 |
51761-70F00-000 |
US $1.52 |
||
|
14
|
14
09355-35754-601
HOSE(3.5X7.5X601)
L:601>140; 2000-04-01~2001-12-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
14
|
14
09355-35006-601 Hose(3.5X7.5X601)L:601>140; 2000-04-01~2001-12-01 |
09355-35006-601 |
from US $5.74 |
||
|
15
|
15
09355-35754-601
HOSE(3.5X7.5X601)
L:601>30; 2000-04-01~2001-12-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
15
|
15
09355-35006-601 Hose(3.5X7.5X601)L:601>30; 2000-04-01~2001-12-01 |
09355-35006-601 |
from US $5.74 |
||
|
16
|
16
09355-35754-601
HOSE(3.5X7.5X601)
L:601>30; 2000-04-01~2001-12-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
16
|
16
09355-35006-601 Hose(3.5X7.5X601)L:601>30; 2000-04-01~2001-12-01 |
09355-35006-601 |
from US $5.74 |
||
|
17
|
17
09355-35754-601
HOSE(3.5X7.5X601)
L:601>60; 2000-04-01~2001-12-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
17
|
17
09355-35006-601 Hose(3.5X7.5X601)L:601>60; 2000-04-01~2001-12-01 |
09355-35006-601 |
from US $5.74 |
||
|
18
|
18
09355-35754-601
HOSE(3.5X7.5X601)
L:601>130; 2000-04-01~2001-12-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
18
|
18
09355-35006-601 Hose(3.5X7.5X601)L:601>130; 2000-04-01~2001-12-01 |
09355-35006-601 |
from US $5.74 |
||
|
19
|
19
09355-35754-601
HOSE(3.5X7.5X601)
L:601>100; 2000-04-01~2001-12-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
19
|
19
09355-35006-601 Hose(3.5X7.5X601)L:601>100; 2000-04-01~2001-12-01 |
09355-35006-601 |
from US $5.74 |
||
|
20
|
20
09367-04002-000 CONNECTOR2000-04-01~2001-12-01 |
09367-04002-000 |
US $4.80 |
||
|
21
|
21
09367-04003-000 JOINT,4 WAY2000-04-01~2001-12-01 |
09367-04003-000 |
US $2.24 |
||
|
22
|
22
09403-07306-000 CLAMPClamp 2000-04-01~2001-12-01 |
09403-07306-000 |
from US $2.56 |
||
|
23
|
23
09408-00067-000 CLIP2000-04-01~2001-12-01 |
09408-00067-000 |
US $11 |
||
|
24
|
24
02162-06123-000
Bolt (6x12)
2000-04-01~2001-12-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
24
|
24
02162-0612B-000 SCREWBolt 2000-04-01~2001-12-01 |
02162-0612B-000 |
from US $0.80 |
||
|
24
|
24
02162-0612A-000 SCREWBolt, bracket 2000-04-01~2001-12-01 |
02162-0612A-000 |
from US $0.80 |
||
|
25
|
25
08316-10063-000
Nut
2000-04-01~2001-12-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
25
|
25
08316-1006B-000 NUT2000-04-01~2001-12-01 |
08316-1006B-000 |
from US $0.76 |
||
|
26
|
26
43880-81A00-000 PIPE,LEADING ARM VACUUM2000-04-01~2001-12-01 |
43880-81A00-000 |
US $42.69 |
||
|
27
|
27
43885-81A00-000
ホース,リーディングアームバキュームリヤ4WD
2000-04-01~2001-12-01 |
43885-81A00-000 |
— | ||
| replacement | |||||
|
27
|
27
43885-81A50-000 HOSE,VALVE TO AXLE VACUUM 2WD2000-04-01~2001-12-01 |
43885-81A50-000 |
US $11.36 |
||
|
28
|
28
43885-81A10-000
ホース,リーディングアームバキュームリヤ2WD
2000-04-01~2001-12-01 |
43885-81A10-000 |
— | ||
| replacement | |||||
|
28
|
28
43885-81A50-000 HOSE,VALVE TO AXLE VACUUM 2WD2000-04-01~2001-12-01 |
43885-81A50-000 |
US $11.36 |
||
|
29
|
29
02162-06163-000
Screw
2000-04-01~2001-12-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
29
|
29
02162-0616B-000 SCREWBolt, adjust 2000-04-01~2001-12-01 |
02162-0616B-000 |
from US $0.80 |
||
|
30
|
30
43886-81A00-000 HOSE,LEADING ARM VACUUM FR 4WD2000-04-01~2001-12-01 |
43886-81A00-000 |
US $7.14 |
||
|
31
|
31
43886-81A10-000
ホース,リーディングアームバキュームフロント2WD
2000-04-01~2001-12-01 |
43886-81A10-000 |
— | ||
| replacement | |||||
|
31
|
31
43886-81A00-000 HOSE,LEADING ARM VACUUM FR 4WD2000-04-01~2001-12-01 |
43886-81A00-000 |
US $7.14 |
||
|
32
|
32
43910-81A20-000 PIPE,FR AXLE HSG2000-04-01~2001-12-01 |
43910-81A20-000 |
US $173.70 |
||
|
33
|
33
43926-81A20-000 HOSE,SPINDLE VACUUM 4WD2000-04-01~2001-12-01 |
43926-81A20-000 |
from US $10.40 |
||
|
34
|
34
43926-81A30-000 HOSE,SPINDLE VACUUM 2WD2000-04-01~2001-12-01 |
43926-81A30-000 |
US $7.68 |
||
|
35
|
35
45616-81A00-000 BRACKET,KINGPIN HOSE2000-04-01~2001-12-01 |
45616-81A00-000 |
US $3.68 |
||
|
36
|
36
09132-06006-000 SCREW(6X12)2000-04-01~2001-12-01 |
09132-06006-000 |
US $1.60 |
||
|
37
|
37
09403-07306-000 CLAMPClamp 2000-04-01~2001-12-01 |
09403-07306-000 |
from US $2.56 |
||
|
38
|
38
09408-00033-000 CLAMPClamp 2000-04-01~2001-12-01 |
09408-00033-000 |
from US $1.60 |
||
|
39
|
39
18569-78100-000 CLAMP2000-04-01~2001-12-01 |
18569-78100-000 |
US $1.76 |
||
