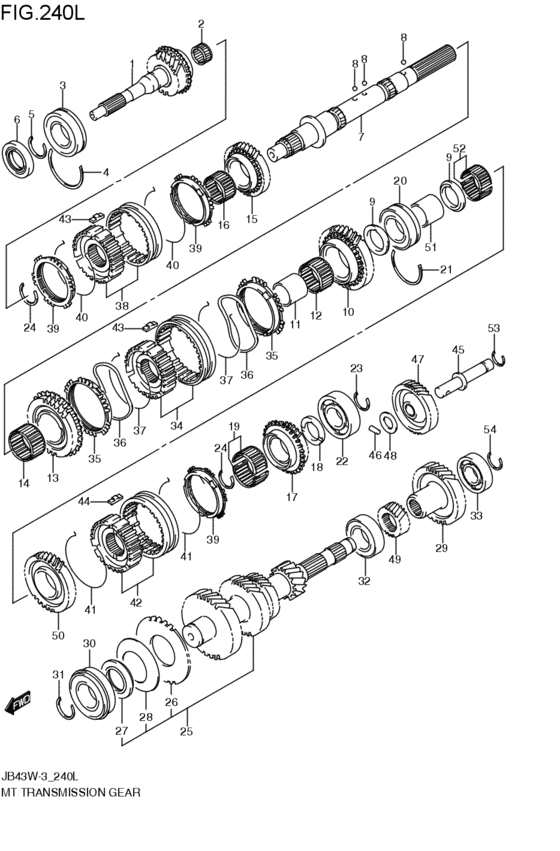

mt - transmission gear (メインシャフト / カウンタシャフト; MT; 2002-01-01~2004-09-01) Diagram Suzuki JIMNY
- Year
- 2002 - 2011
- Sales region
- Japan
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24110-81A60-000
SHAFT,T/M INPUT
MT; 2002-01-01~2004-09-01 |
24110-81A60-000 |
— | ||
|
2
|
2
09263-20056-000 BEARING(20X26X17)MT; 2002-01-01~2004-09-01 |
09263-20056-000 |
from US $8.64 |
||
|
3
|
3
09262-28005-000 BEARING(28X68X18)MT; 2002-01-01~2004-09-01 |
09262-28005-000 |
from US $31.10 |
||
|
4
|
4
09390-68002-000 C RINGMT; 2002-01-01~2004-09-01 |
09390-68002-000 |
from US $1.62 |
||
|
5
|
5
09380-28007-000 RING,SNAPMT; 2002-01-01~2004-09-01 |
09380-28007-000 |
from US $1.73 |
||
|
6
|
6
09283-28014-000 SEAL,OIL(28X50X8)Seal, oil MT; 2002-01-01~2004-09-01 |
09283-28014-000 |
from US $9 |
||
|
7
|
7
24121-83002-000 SHAFT,T/M MAINMT; 2002-01-01~2004-09-01 |
24121-83002-000 |
US $185.84 |
||
|
8
|
8
06111-06003-000 BALLMT; 2002-01-01~2004-09-01 |
06111-06003-000 |
from US $0.76 |
||
|
9
|
9
09166-30007-000 WASHERMT; 2002-01-01~2004-09-01 |
09166-30007-000 |
from US $5 |
||
|
10
|
10
24211-83020-000 GEAR,MAIN SFT LOWMT; 2002-01-01~2004-09-01 |
24211-83020-000 |
US $134.69 |
||
|
11
|
11
09300-30003-000 BUSH(30X35X27.1)MT; 2002-01-01~2004-09-01 |
09300-30003-000 |
from US $7.43 |
||
|
12
|
12
09263-35015-000 BEARING(35X40X26.8)MT; 2002-01-01~2004-09-01 |
09263-35015-000 |
from US $10.79 |
||
|
13
|
13
24220-60A01-000 GEAR,MAIN SFT 2NDMT; 2002-01-01~2004-09-01 |
24220-60A01-000 |
US $176 |
||
|
14
|
14
09263-35015-000 BEARING(35X40X26.8)MT; 2002-01-01~2004-09-01 |
09263-35015-000 |
from US $10.79 |
||
|
15
|
15
24230-81A20-000 GEAR,MAIN SFT 3RDMT; 2002-01-01~2004-09-01 |
24230-81A20-000 |
from US $103.28 |
||
|
16
|
16
09263-30031-000 BEARING(30X35X26.8)MT; 2002-01-01~2004-09-01 |
09263-30031-000 |
from US $8.16 |
||
|
17
|
17
24250-83010-000
GEAR,T/M MAIN SFT 5TH
MT; 2002-01-01~2004-09-01 |
24250-83010-000 |
— | ||
|
18
|
18
24255-60A00-000 WASHER,MAIN SFT 5TH GRMT; 2002-01-01~2004-09-01 |
24255-60A00-000 |
US $6.88 |
||
|
19
|
19
24801-60810-000 BEARING SETMT; 2002-01-01~2004-09-01 |
24801-60810-000 |
from US $15.36 |
||
|
20
|
20
09262-30086-000 BEARING(30X62X16)MT; 2002-01-01~2004-09-01 |
09262-30086-000 |
from US $24.32 |
||
|
21
|
21
09390-62010-000 C RINGMT; 2002-01-01~2004-09-01 |
09390-62010-000 |
US $2.24 |
||
|
22
|
22
09262-25073-000 BEARING(25X62X17)Bearing (25x62x17) MT; 2002-01-01~2004-09-01 |
09262-25073-000 |
from US $14.59 |
||
|
23
|
23
09380-25011-000 RING,SNAPMT; 2002-01-01~2004-09-01 |
09380-25011-000 |
from US $0.97 |
||
|
24
|
24
09380-28007-000 RING,SNAPMT; 2002-01-01~2004-09-01 |
09380-28007-000 |
from US $1.73 |
||
|
25
|
25
24130-81A20-000 SHAFT,T/M COUNTERMT; 2002-01-01~2004-09-01 |
24130-81A20-000 |
US $345.92 |
||
|
26
|
26
24137-60A10-000 GEAR,T/M FRICTIONMT; 2002-01-01~2004-09-01 |
24137-60A10-000 |
US $33.60 |
||
|
27
|
27
24138-81A20-000 RETAINER,T/M FRICTION GEARMT; 2002-01-01~2004-09-01 |
24138-81A20-000 |
US $13.06 |
||
|
28
|
28
24139-60A00-000 SPRING,T/M FRICTION GEARMT; 2002-01-01~2004-09-01 |
24139-60A00-000 |
US $6.72 |
||
|
29
|
29
24351-81A20-000
GEAR,CTSHFT 5TH
MT; 2002-01-01~2004-09-01 |
24351-81A20-000 |
— | ||
|
30
|
30
09262-28019-000 BEARING(28X58X16)B1 28x58x16 bearing m MT; 2002-01-01~2004-09-01 |
09262-28019-000 |
from US $23.56 |
||
|
31
|
31
09380-28007-000 RING,SNAPMT; 2002-01-01~2004-09-01 |
09380-28007-000 |
from US $1.73 |
||
|
32
|
32
09262-28020-000 BEARING(28X58X16)MT; 2002-01-01~2004-09-01 |
09262-28020-000 |
from US $19.76 |
||
|
33
|
33
09262-20073-000 BEARING(20X52X15)Bearing (20x52x15) MT; 2002-01-01~2004-09-01 |
09262-20073-000 |
from US $12.31 |
||
|
34
|
34
24400-83001-000
ハブアッシ,ロースピードシンクロナイザ
MT; 2002-01-01~2004-09-01 |
24400-83001-000 |
— | ||
| replacement | |||||
|
34
|
34
24400-83002-000 HUB ASSY,LOW SPEED SYNCMT; 2002-01-01~2004-09-01 |
24400-83002-000 |
from US $112.19 |
||
|
35
|
35
24431-83001-000 RING,LOW SPEED SYNCMT; 2002-01-01~2004-09-01 |
24431-83001-000 |
from US $48.06 |
||
|
36
|
36
24436-83000-000 SPRING,SYNC RING LOWMT; 2002-01-01~2004-09-01 |
24436-83000-000 |
US $7.84 |
||
|
37
|
37
09388-00017-000 SPRINGMT; 2002-01-01~2004-09-01 |
09388-00017-000 |
from US $2.05 |
||
|
38
|
38
24410-83001-000
ハブアッシ,ハイスピードシンクロナイザ
MT; 2002-01-01~2004-09-01 |
24410-83001-000 |
— | ||
| replacement | |||||
|
38
|
38
24410-83002-000 HUB ASSY,HIGH SPEED SYNCMT; 2002-01-01~2004-09-01 |
24410-83002-000 |
from US $77.40 |
||
|
39
|
39
24432-83001-000 RING,HIGH SPEED SYNCMT; 2002-01-01~2004-09-01 |
24432-83001-000 |
US $82.40 |
||
|
40
|
40
09388-00019-000 SPRINGMT; 2002-01-01~2004-09-01 |
09388-00019-000 |
from US $1.98 |
||
|
41
|
41
09388-00019-000 SPRINGMT; 2002-01-01~2004-09-01 |
09388-00019-000 |
from US $1.98 |
||
|
42
|
42
24420-81A21-000
ハブアッシ,フィフス/リバース
MT; 2002-01-01~2004-09-01 |
24420-81A21-000 |
— | ||
| replacement | |||||
|
42
|
42
24420-81A23-000 HUB ASSY,5TH&REVMT; 2002-01-01~2004-09-01 |
24420-81A23-000 |
from US $86.33 |
||
|
43
|
43
24471-60A00-000 KEY,SYNCMT; 2002-01-01~2004-09-01 |
24471-60A00-000 |
from US $1.73 |
||
|
44
|
44
24473-70D10-000 KEY,SYNCMT; 2002-01-01~2004-09-01 |
24473-70D10-000 |
from US $1.92 |
||
|
45
|
45
24551-83010-000 SHAFT,T/M REVERSE GEARMT; 2002-01-01~2004-09-01 |
24551-83010-000 |
US $28.13 |
||
|
46
|
46
09261-06003-000 PIN(6X10)Pin, drive shadft, r MT; 2002-01-01~2004-09-01 |
09261-06003-000 |
from US $1.06 |
||
|
47
|
47
24560-83001-000 GEAR,REV IDLEMT; 2002-01-01~2004-09-01 |
24560-83001-000 |
US $77.52 |
||
|
48
|
48
09166-16014-000 WASHERMT; 2002-01-01~2004-09-01 |
09166-16014-000 |
US $14.40 |
||
|
49
|
49
24671-81A20-000
GEAR,CTSHFT REV
MT; 2002-01-01~2004-09-01 |
24671-81A20-000 |
— | ||
|
50
|
50
24681-81A41-000 GEAR, MAIN SHAFT REVERSEMT; 2002-01-01~2004-09-01 |
24681-81A41-000 |
US $88.93 |
||
|
51
|
51
09300-30003-000 BUSH(30X35X27.1)MT; 2002-01-01~2004-09-01 |
09300-30003-000 |
from US $7.43 |
||
|
52
|
52
24801-60820-000 BEARING SETMT; 2002-01-01~2004-09-01 |
24801-60820-000 |
from US $17.42 |
||
|
53
|
53
09380-17008-000 CIRCLIPMT; 2002-01-01~2004-09-01 |
09380-17008-000 |
US $1.92 |
||
|
54
|
54
09380-20011-000 RING,SNAPMT; 2002-01-01~2004-09-01 |
09380-20011-000 |
US $1.52 |
||
