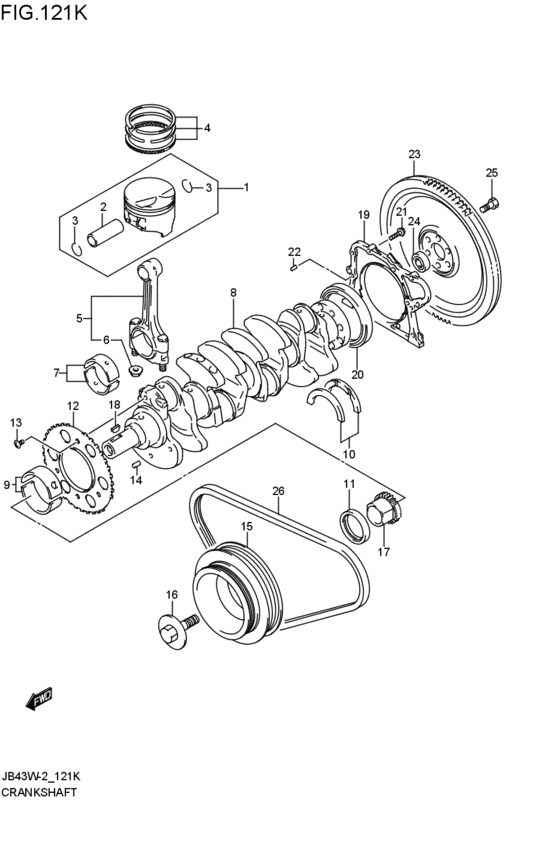

crankshaft (2000-04-01~2001-12-01) Diagram Suzuki JIMNY
- Year
- 2000 - 2011
- Sales region
- Japan
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-69810-000
ピストンセット,STD
2000-04-01~2001-12-01 |
12100-69810-000 |
— | ||
| replacements | |||||
|
1
|
1
12100-69811-000 PISTON SET,STD2000-04-01~2001-12-01 |
12100-69811-000 |
from US $56.63 |
||
|
1
|
1
12140-54GA0-000 RING SET,PISTON STD2000-04-01~2001-12-01 |
12140-54GA0-000 |
from US $45.34 |
||
|
2
|
2
12151-85FA0-000 PIN,PISTON2000-04-01~2001-12-01 |
12151-85FA0-000 |
from US $6.84 |
||
|
3
|
3
09381-20004-000 CIRCLIPSnap ring 2000-04-01~2001-12-01 |
09381-20004-000 |
from US $1.52 |
||
|
4
|
4
12140-69G01-000
リングセット,ピストン,STD
2000-04-01~2001-12-01 |
12140-69G01-000 |
— | ||
| replacement | |||||
|
4
|
4
12140-69G02-000 RING SET,PISTON2000-04-01~2001-12-01 |
12140-69G02-000 |
US $59.25 |
||
|
5
|
5
12160-69G00-000
コネクチングロッドアッシ
2000-04-01~2001-10-01 |
12160-69G00-000 |
— | ||
| replacements | |||||
|
5
|
5
12100-70880-0A0 BEARING SET,CONNROD GREEN2000-04-01~2001-10-01 |
12100-70880-0A0 |
from US $14.76 |
||
|
5
|
5
12100-70880-0B0 BEARING SET,CONNROD BLACK2000-04-01~2001-10-01 |
12100-70880-0B0 |
from US $14.47 |
||
|
5
|
5
12100-70880-0C0 BEARING SET,CONNROD NON2000-04-01~2001-10-01 |
12100-70880-0C0 |
from US $14.45 |
||
|
5
|
5
12100-70880-0D0 BEARING SET,CONNROD YELLOW2000-04-01~2001-10-01 |
12100-70880-0D0 |
US $15.46 |
||
|
5
|
5
12100-70880-0E0 BEARING SET,CONNROD BLUE2000-04-01~2001-10-01 |
12100-70880-0E0 |
US $15.46 |
||
|
5
|
5
12160-70H10-000 CONNROD ASSY2000-04-01~2001-10-01 |
12160-70H10-000 |
from US $80.87 |
||
|
5
|
5
12160-70H00-000
Connrod assy
2001-10-01~2001-12-01 |
12160-70H00-000 |
— | ||
| replacement | |||||
|
5
|
5
12160-70H10-000 CONNROD ASSY2001-10-01~2001-12-01 |
12160-70H10-000 |
from US $80.87 |
||
|
6
|
6
09159-08114-000 NUT2000-04-01~2001-12-01 |
09159-08114-000 |
US $15.50 |
||
|
7
|
7
12100-70870-0A0
ベアリングセット,コンロッド,カラー:グリーン
カラー:グリーン; 2001-10-01~2001-12-01 |
12100-70870-0A0 |
— | ||
| replacement | |||||
|
7
|
7
12100-70880-0A0 BEARING SET,CONNROD GREENカラー:グリーン; 2001-10-01~2001-12-01 |
12100-70880-0A0 |
from US $14.76 |
||
|
7
|
7
12100-70870-0B0
ベアリングセット,コンロッド,カラー:ブラック
カラー:ブラック; 2001-10-01~2001-12-01 |
12100-70870-0B0 |
— | ||
| replacement | |||||
|
7
|
7
12100-70880-0B0 BEARING SET,CONNROD BLACKカラー:ブラック; 2001-10-01~2001-12-01 |
12100-70880-0B0 |
from US $14.47 |
||
|
7
|
7
12100-70870-0C0
ベアリングセット,コンロッド,カラー:ナシ
カラー:ナシ; 2001-10-01~2001-12-01 |
12100-70870-0C0 |
— | ||
| replacement | |||||
|
7
|
7
12100-70880-0C0 BEARING SET,CONNROD NONカラー:ナシ; 2001-10-01~2001-12-01 |
12100-70880-0C0 |
from US $14.45 |
||
|
7
|
7
12100-70870-0D0
ベアリングセット,コンロッド,カラー:イエロー
カラー:イエロー; 2001-10-01~2001-12-01 |
12100-70870-0D0 |
— | ||
| replacement | |||||
|
7
|
7
12100-70880-0D0 BEARING SET,CONNROD YELLOWカラー:イエロー; 2001-10-01~2001-12-01 |
12100-70880-0D0 |
US $15.46 |
||
|
7
|
7
12100-70870-0E0
ベアリングセット,コンロッド,カラー:ブルー
カラー:ブルー; 2001-10-01~2001-12-01 |
12100-70870-0E0 |
— | ||
| replacement | |||||
|
7
|
7
12100-70880-0E0 BEARING SET,CONNROD BLUEカラー:ブルー; 2001-10-01~2001-12-01 |
12100-70880-0E0 |
US $15.46 |
||
|
7
|
7
12100-70870-025
ベアリングセット,コンロッド,カラー:レッド
カラー:レッド; 2001-10-01~2001-12-01 |
12100-70870-025 |
— | ||
| replacement | |||||
|
7
|
7
12100-70880-025 BEARING SET,CONNROD RED (US 0.25, T1.625)カラー:レッド; 2001-10-01~2001-12-01 |
12100-70880-025 |
US $24.80 |
||
|
7
|
7
12300-69810-0A0
ベアリングセット,コンロッド,カラー:グリーン
カラー:グリーン; 2000-04-01~2001-10-01 |
12300-69810-0A0 |
— | ||
| replacement | |||||
|
7
|
7
12100-69830-0A0 BEARING SET,CONNROD GREENカラー:グリーン; 2000-04-01~2001-10-01 |
12100-69830-0A0 |
from US $14.36 |
||
|
7
|
7
12300-69810-025
ベアリングセット,コンロッド,カラー:レッド
カラー:レッド; 2000-04-01~2001-10-01 |
12300-69810-025 |
— | ||
| replacement | |||||
|
7
|
7
12100-69830-025 BEARING SET,CONNROD REDカラー:レッド; 2000-04-01~2001-10-01 |
12100-69830-025 |
from US $14.09 |
||
|
8
|
8
12221-69G00-000
クランクシャフト
2000-04-01~2001-12-01 |
12221-69G00-000 |
— | ||
| replacement | |||||
|
8
|
8
12221-69G10-000 CRANKSHAFT2000-04-01~2001-12-01 |
12221-69G10-000 |
from US $563.36 |
||
|
9
|
9
12300-75810-0BA
Bearing set (red/black)
カラー:レッド/ブラック; 2000-04-01~2001-12-01 |
12300-75810-0BA |
— | ||
| replacement | |||||
|
9
|
9
12300-75840-0BA BEARING SET,CRANK (RED/PINK)カラー:レッド/ブラック; 2000-04-01~2001-12-01 |
12300-75840-0BA |
US $22.26 |
||
|
9
|
9
12340-69G00-0A0
ベアリングセット,カラー:ピンク
カラー:ピンク; 2000-04-01~2001-12-01 |
12340-69G00-0A0 |
— | ||
| replacement | |||||
|
9
|
9
12340-69GA0-0A0 BEARING SET,CRANKSHAFT STD (PINK)カラー:ピンク; 2000-04-01~2001-12-01 |
12340-69GA0-0A0 |
from US $16.56 |
||
|
9
|
9
12340-69G00-0B0
ベアリングセット,カラー:パープル
カラー:パープル; 2000-04-01~2001-12-01 |
12340-69G00-0B0 |
— | ||
| replacement | |||||
|
9
|
9
12340-69GA0-0B0 BEARING SET,CRANKSHAFT STD (PURPLE)カラー:パープル; 2000-04-01~2001-12-01 |
12340-69GA0-0B0 |
from US $14.99 |
||
|
9
|
9
12340-69G00-0C0
ベアリングセット,カラー:ブラウン
カラー:ブラウン; 2000-04-01~2001-12-01 |
12340-69G00-0C0 |
— | ||
| replacement | |||||
|
9
|
9
12340-69GA0-0C0 BEARING SET,CRANKSHAFT STD (BROWN)カラー:ブラウン; 2000-04-01~2001-12-01 |
12340-69GA0-0C0 |
US $16.56 |
||
|
9
|
9
12340-75F00-0A0
Bearing set (green)
カラー:グリーン; 2000-04-01~2001-12-01 |
12340-75F00-0A0 |
— | ||
| replacement | |||||
|
9
|
9
12340-75FA0-0A0 BEARING SET,CRANKSHAFT STD (GREEN)カラー:グリーン; 2000-04-01~2001-12-01 |
12340-75FA0-0A0 |
US $24.80 |
||
|
9
|
9
12340-75F00-0B0
Bearing set (black)
カラー:ブラック; 2000-04-01~2001-12-01 |
12340-75F00-0B0 |
— | ||
| replacement | |||||
|
9
|
9
12340-75FA0-0B0 BEARING SET,CRANKSHAFT STD (BLACK)カラー:ブラック; 2000-04-01~2001-12-01 |
12340-75FA0-0B0 |
from US $15.44 |
||
|
9
|
9
12300-69820-0AA
ベアリングセット,カラー:レッド/ピンク
カラー:レッド/ピンク; 2000-04-01~2001-12-01 |
12300-69820-0AA |
— | ||
| replacement | |||||
|
9
|
9
12300-69850-0AA BEARING SET,CRANK RED/PINKカラー:レッド/ピンク; 2000-04-01~2001-12-01 |
12300-69850-0AA |
from US $15.19 |
||
|
9
|
9
12300-69820-0BA
ベアリングセット,カラー:レッド/パープル
カラー:レッド/パープル; 2000-04-01~2001-12-01 |
12300-69820-0BA |
— | ||
| replacement | |||||
|
9
|
9
12300-69850-0BA BEARING SET,CRANK RED/PURPLEカラー:レッド/パープル; 2000-04-01~2001-12-01 |
12300-69850-0BA |
from US $9.65 |
||
|
9
|
9
12300-69820-0CA
ベアリングセット,カラー:レッド/ブラウン
カラー:レッド/ブラウン; 2000-04-01~2001-12-01 |
12300-69820-0CA |
— | ||
| replacement | |||||
|
9
|
9
12300-69850-0CA BEARING SET,CRANK RED/BROWNカラー:レッド/ブラウン; 2000-04-01~2001-12-01 |
12300-69850-0CA |
US $31.20 |
||
|
9
|
9
12300-75810-0AA
Bearing set (red/green)
カラー:レッド/グリーン; 2000-04-01~2001-12-01 |
12300-75810-0AA |
— | ||
| replacement | |||||
|
9
|
9
12300-75840-0AA BEARING SET,CRANK RED/GREENカラー:レッド/グリーン; 2000-04-01~2001-12-01 |
12300-75840-0AA |
US $22.26 |
||
|
10
|
10
12300-60820-000
Metal set,crank
2000-04-01~2001-12-01 |
12300-60820-000 |
— | ||
| replacement | |||||
|
10
|
10
12300-78890-000 BEARING SET,CRANK THRUST2000-04-01~2001-12-01 |
12300-78890-000 |
from US $11.57 |
||
|
10
|
10
12300-60820-012
ベアリングセット,クランクスラスト
2000-04-01~2001-12-01 |
12300-60820-012 |
— | ||
| replacement | |||||
|
10
|
10
12300-78890-012 BEARING SET,CRANK THRUST US2000-04-01~2001-12-01 |
12300-78890-012 |
from US $14.09 |
||
|
11
|
11
09283-41001-000
Seal,oil,41x53x6
2000-04-01~2001-12-01 |
09283-41001-000 |
— | ||
| replacement | |||||
|
11
|
11
09283-41003-000 SEAL,OIL(41X53X6)2000-04-01~2001-12-01 |
09283-41003-000 |
from US $8.75 |
||
|
12
|
12
12222-69G00-000 PLATE,SENSOR2000-04-01~2001-12-01 |
12222-69G00-000 |
from US $6.71 |
||
|
13
|
13
09139-06051-000 SCREW(6X10)2000-04-01~2001-12-01 |
09139-06051-000 |
from US $1.28 |
||
|
14
|
14
09205-05006-000 PIN,SPRING(5X12)2000-04-01~2001-12-01 |
09205-05006-000 |
from US $1.64 |
||
|
15
|
15
12610-80A00-000
プーリ,クランクシャフト
2000-04-01~2001-12-01 |
12610-80A00-000 |
— | ||
| replacement | |||||
|
15
|
15
12610-80A01-000 PULLEY,CRANKSHAFT2000-04-01~2001-12-01 |
12610-80A01-000 |
from US $148.67 |
||
|
16
|
16
12619-69G00-000
ボルト,クランクプーリ,12X38.5
2000-04-01~2001-12-01 |
12619-69G00-000 |
— | ||
| replacement | |||||
|
16
|
16
12619-69G10-000 BOLT,CRANK PULLEY2000-04-01~2001-12-01 |
12619-69G10-000 |
from US $9.05 |
||
|
17
|
17
12631-54G00-000
Sprocket,crankshaft timing
2000-11-01~2001-12-01 |
12631-54G00-000 |
— | ||
| replacement | |||||
|
17
|
17
12631-54G11-000 SPROCKET,CRANKSHAFT TIMING2000-11-01~2001-12-01 |
12631-54G11-000 |
from US $30.40 |
||
|
17
|
17
12631-69G00-000
SPROCKET,CRANKSHAFT TIMING
2000-04-01~2000-10-01 |
12631-69G00-000 |
— | ||
|
18
|
18
08341-31059-000 KEYKey 2000-04-01~2001-12-01 |
08341-31059-000 |
from US $1.49 |
||
|
19
|
19
11341-69G00-000
HOUSING,OIL SEAL
2000-04-01~2001-12-01 |
11341-69G00-000 |
— | ||
|
20
|
20
09283-83001-000 SEAL,OIL(83X103X8), REAR2000-04-01~2001-12-01 |
09283-83001-000 |
from US $31.86 |
||
|
21
|
21
09103-06084-000
Bolt
2000-04-01~2001-12-01 |
09103-06084-000 |
— | ||
| replacement | |||||
|
21
|
21
09103-06282-000 BOLT(6X25)Bolt, shift cam (6x25) 2000-04-01~2001-12-01 |
09103-06282-000 |
from US $3.42 |
||
|
22
|
22
04221-06129-000 PIN2000-04-01~2000-08-01 |
04221-06129-000 |
from US $0.96 |
||
|
22
|
22
09206-06005-000 PIN(4X6X11)2000-08-01~2001-12-01 |
09206-06005-000 |
from US $0.97 |
||
|
26
|
26
95141-50F01-000 BELT,WATER PUMP 4PK8352000-04-01~2001-12-01 |
95141-50F01-000 |
from US $28.15 |
||
