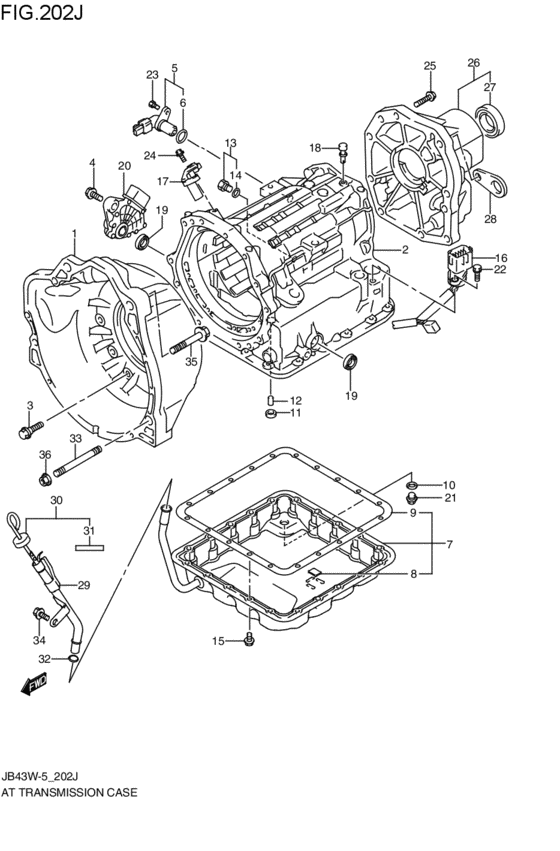

at - transmission case (AT; 2005-10-01~) Diagram Suzuki JIMNY
- Year
- 2005 - 2011
- Sales region
- Japan
- transmission
- AT
- grade
- JS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24711-76J10-000 HOUSING,CONVERTERAT; 2005-10-01~ |
24711-76J10-000 |
US $464.64 |
||
|
2
|
2
24720-66H11-000
CASE,T/M
AT; 2005-10-01~ |
24720-66H11-000 |
— | ||
| replacement | |||||
|
2
|
2
24720-66H12-000 CASE,T/MAT; 2005-10-01~ |
24720-66H12-000 |
from US $645.50 |
||
|
3
|
3
22893-59J10-000 BOLT,OIL PUMP ASSYAT; 2005-10-01~ |
22893-59J10-000 |
from US $3.60 |
||
|
4
|
4
24742-53J10-000 BoltAT; 2005-10-01~ |
24742-53J10-000 |
US $3.97 |
||
|
5
|
5
24745-53J10-000 SENSOR, OUTPUT SPEEDAT; 2005-10-01~ |
24745-53J10-000 |
from US $49.40 |
||
|
6
|
6
24748-53J10-000 O-RING,SPEED SENSORAT; 2005-10-01~ |
24748-53J10-000 |
US $2.91 |
||
|
7
|
7
26760-76JT0-000
パンセット,トランスミッションオイル
AT; 2005-10-01~ |
26760-76JT0-000 |
— | ||
|
8
|
8
24745-57B00-000 MAGNET,T/M OIL PANAT; 2005-10-01~ |
24745-57B00-000 |
US $5.60 |
||
|
9
|
9
24784-66H10-000
GASKET,T/M OIL PAN
AT; 2005-10-01~ |
24784-66H10-000 |
— | ||
| replacement | |||||
|
9
|
9
24784-66H11-000 GASKET,T/M OIL PANAT; 2005-10-01~ |
24784-66H11-000 |
from US $10.58 |
||
|
10
|
10
24781-57B00-000 GASKET,DRAIN PLUGAT; 2005-10-01~ |
24781-57B00-000 |
from US $1.52 |
||
|
11
|
11
24818-68J10-000 GASKET,GOVERNOR APPLY NO.1AT; 2005-10-01~ |
24818-68J10-000 |
from US $5.74 |
||
|
12
|
12
24819-66H10-000 GASKETAT; 2005-10-01~ |
24819-66H10-000 |
from US $10.73 |
||
|
13
|
13
24820-62B00-000 PLUG,BOOSTERAT; 2005-10-01~ |
24820-62B00-000 |
US $3.53 |
||
|
14
|
14
29738-57B00-000 O-RINGAT; 2005-10-01~ |
29738-57B00-000 |
US $2.40 |
||
|
15
|
15
24882-79C10-000 BOLT,T/M OIL PANAT; 2005-10-01~ |
24882-79C10-000 |
US $1.52 |
||
|
16
|
16
24892-76J10-000 ハーネス,ソレノイドワイヤAT; 2005-10-01~ |
24892-76J10-000 |
US $92 |
||
|
17
|
17
26141-66H10-000 SENSOR,INPUT SPEEDAT; 2005-10-01~ |
26141-66H10-000 |
from US $24.30 |
||
|
18
|
18
27991-66H10-000 PLUG,T/M BREATHERAT; 2005-10-01~ |
27991-66H10-000 |
from US $2.70 |
||
|
19
|
19
29793-57B00-000 SEAL,OIL LIPAT; 2005-10-01~ |
29793-57B00-000 |
US $6.72 |
||
|
20
|
20
37720-66H10-000 SWITCH ASSY,SHIFTAT; 2005-10-01~ |
37720-66H10-000 |
US $264 |
||
|
21
|
21
09247-10007-000 PLUGAT; 2005-10-01~ |
09247-10007-000 |
from US $2.43 |
||
|
22
|
22
01570-0616A-000 BoltAT; 2005-10-01~ |
01570-0616A-000 |
from US $0.80 |
||
|
23
|
23
01570-0616A-000 BoltAT; 2005-10-01~ |
01570-0616A-000 |
from US $0.80 |
||
|
24
|
24
01570-0616A-000 BoltAT; 2005-10-01~ |
01570-0616A-000 |
from US $0.80 |
||
|
25
|
25
24729-60G10-000 BoltAT; 2005-10-01~ |
24729-60G10-000 |
US $4.12 |
||
|
26
|
26
24770-76J10-000 CASE ASSY,EXTENSIONAT; 2005-10-01~ |
24770-76J10-000 |
from US $188.69 |
||
|
27
|
27
24780-83010-000 SEAL,EXTENSION CASE OILAT; 2005-10-01~ |
24780-83010-000 |
from US $5.76 |
||
|
28
|
28
11851-72B21-000 HOOK,ENGINEAT; 2005-10-01~ |
11851-72B21-000 |
US $2.80 |
||
|
29
|
29
22940-76J11-000 TUBE,OIL FILLERAT; 2005-10-01~ |
22940-76J11-000 |
US $20.24 |
||
|
30
|
30
22950-76J11-000 GAUGE ASSY,OIL LEVELAT; 2005-10-01~ |
22950-76J11-000 |
US $23.55 |
||
|
31
|
31
24839-61A31-000 EMBLEM,ATFAT; 2005-10-01~ |
24839-61A31-000 |
US $2.47 |
||
|
32
|
32
09280-10016-000 O RING(D:1.9,ID:9.8)O ring AT; 2005-10-01~ |
09280-10016-000 |
from US $1.52 |
||
|
33
|
33
09108-12006-000 BOLT,STUDAT; 2005-10-01~ |
09108-12006-000 |
US $28 |
||
|
34
|
34
01550-0816A-000 BOLTBolt, rear AT; 2005-10-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
35
|
35
01550-1255A-000 BoltAT; 2005-10-01~ |
01550-1255A-000 |
US $21.70 |
||
|
36
|
36
08316-1012A-000 NUTAT; 2005-10-01~ |
08316-1012A-000 |
from US $0.96 |
||
