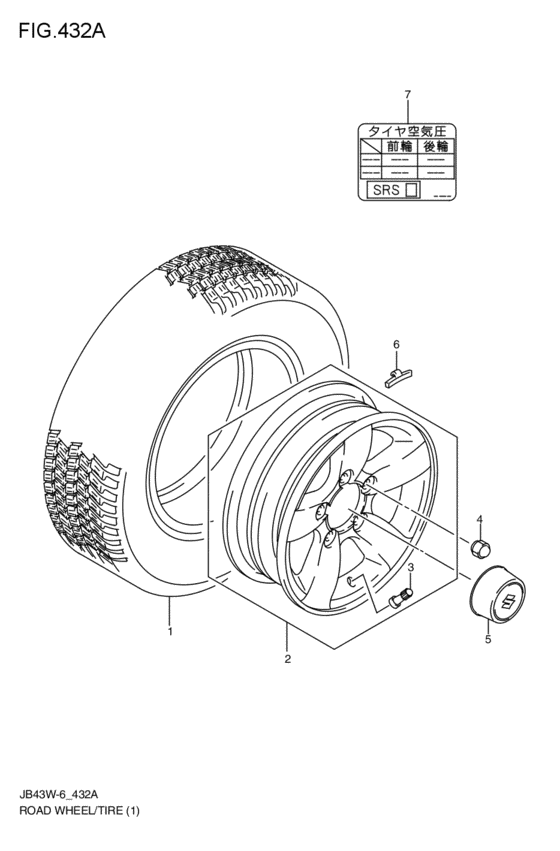

road wheel / tire (JY,JSA,JSB; 2008-03-01~) Diagram Suzuki JIMNY
- Year
- 2008 - 2011
- Sales region
- Japan
- transmission
- AT
- grade
- JSA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43110-81A20-000
Tire(205/70r15)
BS; JY,JSA,JSB; 2008-03-01~ |
43110-81A20-000 |
— | ||
| replacement | |||||
|
1
|
1
43110-57M42-000
TIRE(205/70R15)
BS; JY,JSA,JSB; 2008-03-01~ |
43110-57M42-000 |
— | ||
|
1
|
1
43110-81A40-000
タイヤ,205/70 R15
YOKOHAMA; JY,JSA,JSB; 2008-03-01~ |
43110-81A40-000 |
— | ||
|
2
|
2
43200-63842-27N WHEEL,AL(15X5 1/2JJ)JY,JSA,JSB; 2008-03-01~ |
43200-63842-27N |
US $368 |
||
|
3
|
3
43130-78030-000 VALVE,TIRE TR413 BSValve assy, wheel rim BS; JY,JSA,JSB; 2008-03-01~ |
43130-78030-000 |
US $12.50 |
||
|
4
|
4
09159-12057-000 NUTJY,JSA,JSB; 2008-03-01~ |
09159-12057-000 |
from US $2.89 |
||
|
5
|
5
43252-76J00-000 CAP,WHEEL CENTERJY,JSA,JSB; 2008-03-01~ |
43252-76J00-000 |
US $33.60 |
||
|
6
|
6
43221-50J10-000 WEIGHT,WHEEL BALANCE 5GJY,JSA,JSB; 2008-03-01~ |
43221-50J10-000 |
US $2.28 |
||
|
6
|
6
43222-50J10-000 WEIGHT,WHEEL BALANCE 10GJY,JSA,JSB; 2008-03-01~ |
43222-50J10-000 |
US $2.83 |
||
|
6
|
6
43223-50J10-000 WEIGHT,WHEEL BALANCE 15GJY,JSA,JSB; 2008-03-01~ |
43223-50J10-000 |
US $3.09 |
||
|
6
|
6
43224-50J10-000 WEIGHT,WHEEL BALANCE 20GJY,JSA,JSB; 2008-03-01~ |
43224-50J10-000 |
US $3.35 |
||
|
6
|
6
43225-50J10-000 WEIGHT,WHEEL BALANCE 25GJY,JSA,JSB; 2008-03-01~ |
43225-50J10-000 |
US $3.57 |
||
|
6
|
6
43226-50J10-000 WEIGHT,WHEEL BALANCE 30GJY,JSA,JSB; 2008-03-01~ |
43226-50J10-000 |
US $3.79 |
||
|
6
|
6
43227-50J10-000 WEIGHT,WHEEL BALANCE 35GJY,JSA,JSB; 2008-03-01~ |
43227-50J10-000 |
US $4.01 |
||
|
6
|
6
43228-50J10-000 WEIGHT,WHEEL BALANCE 40GJY,JSA,JSB; 2008-03-01~ |
43228-50J10-000 |
US $4.23 |
||
|
6
|
6
43229-50J10-000 WEIGHT,WHEEL BALANCE 45GJY,JSA,JSB; 2008-03-01~ |
43229-50J10-000 |
US $4.45 |
||
|
7
|
7
79161-81A01-000
プラカード,タイヤインフォメーション
JY,JSA,JSB; 2008-03-01~ |
79161-81A01-000 |
— | ||
