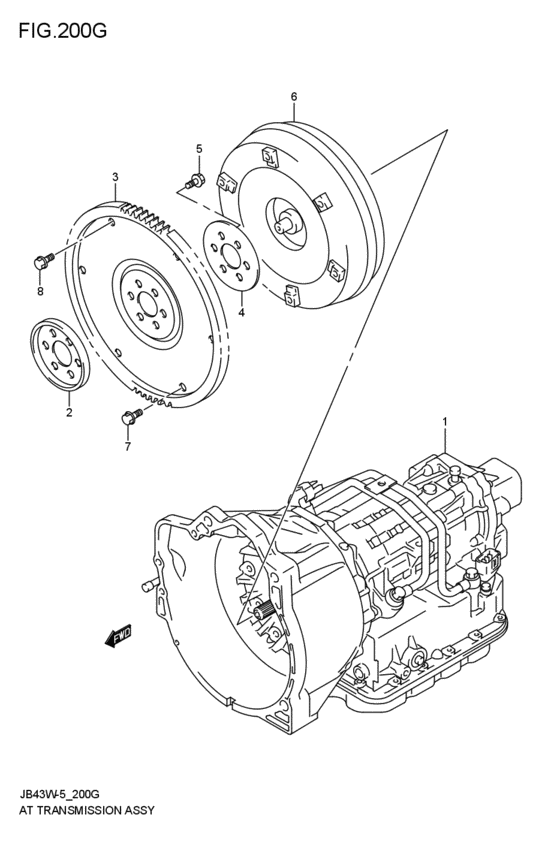

at - transmission assy (AT; 2005-10-01~) Diagram Suzuki JIMNY
- Year
- 2006 - 2011
- Sales region
- Japan
- transmission
- AT
- grade
- JSC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
20002-76J10-000
T/m assy,automatic
AT; 2005-10-01~ |
20002-76J10-000 |
— | ||
| replacement | |||||
|
1
|
1
20002-76J14-000 TRANSMISSION ASSY,AUTOMATICAT; 2005-10-01~ |
20002-76J14-000 |
US $6,116.32 |
||
|
1
|
1
20002-76J10-111
トランスミッションアッシ,オートマチック(リビルト)
リビルト; AT; 2005-10-01~ |
20002-76J10-111 |
— | ||
| replacement | |||||
|
1
|
1
20002-76J14-111
New Genuine Part
リビルト; AT; 2005-10-01~ |
20002-76J14-111 |
— | ||
|
2
|
2
22611-76J10-000 FLANGE,T/C DRIVE PLATEAT; 2005-10-01~ |
22611-76J10-000 |
US $43.79 |
||
|
3
|
3
22620-76J10-000 PLATE,TC DRIVEAT; 2005-10-01~ |
22620-76J10-000 |
US $323.20 |
||
|
4
|
4
22631-69G10-000 PLATE,TC DRIVE REARAT; 2005-10-01~ |
22631-69G10-000 |
US $7.95 |
||
|
5
|
5
09103-10305-000 BOLT(10X18.5)AT; 2005-10-01~ |
09103-10305-000 |
US $22.40 |
||
| replacement | |||||
|
5
|
5
09100-10275-000 BOLT(10X18.5)AT; 2005-10-01~ |
09100-10275-000 |
US $1.44 |
||
|
6
|
6
22710-76J10-000
コンバータ,トルク
AT; 2005-10-01~ |
22710-76J10-000 |
— | ||
|
7
|
7
09103-08507-000 BOLT(8X9.5)AT; 2005-10-01~ |
09103-08507-000 |
US $21.70 |
||
|
8
|
8
09103-08508-000 BOLT(8X9.5)AT; 2005-10-01~ |
09103-08508-000 |
from US $1.80 |
||
