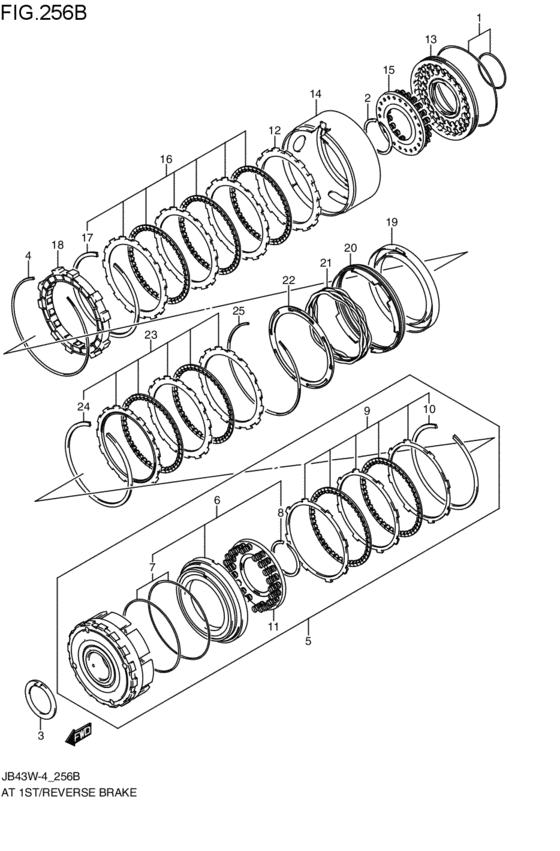

at - first / reverse brakes (AT; 2004-10-01~) Diagram Suzuki JIMNY
- Year
- 2004 - 2011
- Sales region
- Japan
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26829-66HT0-000 O-RING SET,1ST&REV BK PISTONAT; 2004-10-01~ |
26829-66HT0-000 |
from US $7.11 |
||
|
2
|
2
26617-60G10-000 RING,FWD CL SNAPAT; 2004-10-01~ |
26617-60G10-000 |
from US $3.80 |
||
|
3
|
3
26637-66H10-000 WASHER,REV CL DRUM THRUSTAT; 2004-10-01~ |
26637-66H10-000 |
US $4.80 |
||
|
4
|
4
26779-66H10-000 CIRCLIP,ONE WAY CLUTCH NO.2AT; 2004-10-01~ |
26779-66H10-000 |
from US $4.84 |
||
|
5
|
5
26800-76J10-000
クラッチアッシ,リバース
AT; 2004-10-01~ |
26800-76J10-000 |
— | ||
| replacement | |||||
|
5
|
5
26800-76J11-000 CLUTCH ASSY,REVERSEAT; 2004-10-01~ |
26800-76J11-000 |
from US $401.12 |
||
|
6
|
6
26862-66HT0-000 PISTON SET,REVERSE CLUTCHAT; 2004-10-01~ |
26862-66HT0-000 |
from US $42.44 |
||
|
7
|
7
26618-53JT0-000 O-RING SET,REV CL PISTONAT; 2004-10-01~ |
26618-53JT0-000 |
US $11.40 |
||
|
8
|
8
26648-75F10-000 RINGAT; 2004-10-01~ |
26648-75F10-000 |
from US $3.24 |
||
|
9
|
9
26866-76JT0-000 DISC SET,REV CLUTCHAT; 2004-10-01~ |
26866-76JT0-000 |
from US $125.10 |
||
|
10
|
10
26649-75F10-000 RINGAT; 2004-10-01~ |
26649-75F10-000 |
US $6.24 |
||
|
11
|
11
26863-66H10-000 SPRING,REVERSE CLUTCH RTNAT; 2004-10-01~ |
26863-66H10-000 |
US $16.74 |
||
|
12
|
12
26813-66H10-000 PLATE,BRAKE BACKINGAT; 2004-10-01~ |
26813-66H10-000 |
US $31.20 |
||
|
13
|
13
26822-66H10-000 PISTON,1ST&REV BRAKEAT; 2004-10-01~ |
26822-66H10-000 |
from US $19.53 |
||
|
14
|
14
26832-76J10-000
チューブ,セカンドブレーキアプライ
AT; 2004-10-01~ |
26832-76J10-000 |
— | ||
| replacement | |||||
|
14
|
14
26832-76J11-000 TUBE,2ND BRAKE APPLYAT; 2004-10-01~ |
26832-76J11-000 |
US $34.22 |
||
|
15
|
15
26833-66H10-000 SPRING,1ST&REV BRAKE RTNAT; 2004-10-01~ |
26833-66H10-000 |
from US $10.89 |
||
|
16
|
16
26836-76JT0-000 DISC SET,REV BRAKEAT; 2004-10-01~ |
26836-76JT0-000 |
from US $110.23 |
||
|
17
|
17
26839-66H10-000 CIRCLIPAT; 2004-10-01~ |
26839-66H10-000 |
US $3.84 |
||
|
18
|
18
26851-66H10-000
CLUTCH,ONE WAY NO.2
AT; 2004-10-01~ |
26851-66H10-000 |
— | ||
| replacement | |||||
|
18
|
18
26851-77R10-000 Clutch,one Way No.2AT; 2004-10-01~ |
26851-77R10-000 |
from US $128.05 |
||
|
19
|
19
26771-66H10-000 DRUM,O/D BRAKEAT; 2004-10-01~ |
26771-66H10-000 |
from US $24.10 |
||
|
20
|
20
26772-66H10-000 PISTON,O/D BRAKEAT; 2004-10-01~ |
26772-66H10-000 |
from US $42.46 |
||
|
21
|
21
26773-66H10-000 SPRING,O/D BRAKE PLATEAT; 2004-10-01~ |
26773-66H10-000 |
from US $17.10 |
||
|
22
|
22
26775-66H10-000 SEAT,O/D BRAKE RTN SPRINGAT; 2004-10-01~ |
26775-66H10-000 |
from US $14.36 |
||
|
23
|
23
26776-66HT0-000
DISC SET,O/D BRAKE
AT; 2004-10-01~ |
26776-66HT0-000 |
— | ||
| replacement | |||||
|
23
|
23
26776-77RT0-000 Disc Set,o/d BrakeAT; 2004-10-01~ |
26776-77RT0-000 |
from US $104.67 |
||
|
24
|
24
26779-66H30-000 CIRCLIPAT; 2004-10-01~ |
26779-66H30-000 |
US $4.32 |
||
|
25
|
25
26779-66H10-000 CIRCLIP,ONE WAY CLUTCH NO.2AT; 2004-10-01~ |
26779-66H10-000 |
from US $4.84 |
||
