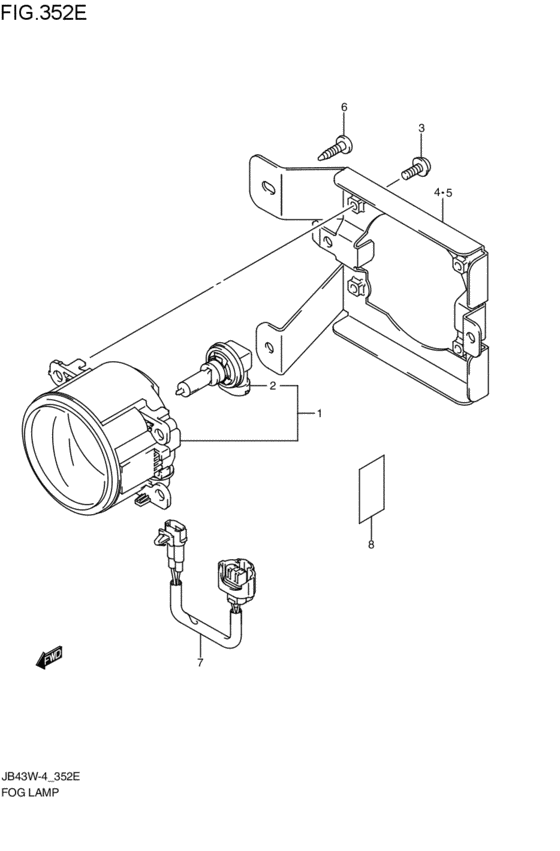

fog light (2004-10-01~) Diagram Suzuki JIMNY
- Year
- 2004 - 2011
- Sales region
- Japan
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35500-63J00-000
ランプアッシ,フォグ
2004-10-01~ |
35500-63J00-000 |
— | ||
| replacement | |||||
|
1
|
1
35500-63J04-000 LAMP ASSY,FOG2004-10-01~ |
35500-63J04-000 |
US $68.42 |
||
|
2
|
2
09471-12210-000 BULB(12V55W,H11)2004-10-01~ |
09471-12210-000 |
from US $21.76 |
||
|
3
|
3
02112-75163-000
Screw
2004-10-01~ |
02112-75163-000 |
— | ||
| replacements | |||||
|
3
|
3
02112-7516B-000 SCREW2004-10-01~ |
02112-7516B-000 |
from US $0.96 |
||
|
3
|
3
02112-7516A-000 SCREWScrew, gear shift 2004-10-01~ |
02112-7516A-000 |
from US $0.96 |
||
|
4
|
4
35526-81A30-000 BRACKET,FOG LAMP,RH2004-10-01~ |
35526-81A30-000 |
US $47.20 |
||
|
5
|
5
35566-81A30-000 BRACKET,FOG LAMP,LH2004-10-01~ |
35566-81A30-000 |
US $47.20 |
||
|
6
|
6
03541-05123-000
Screw
2004-10-01~ |
03541-05123-000 |
— | ||
| replacement | |||||
|
6
|
6
03541-0512B-000 SCREW2004-10-01~ |
03541-0512B-000 |
from US $0.76 |
||
|
7
|
7
36813-54G20-000 WIRE,FR FOG LAMP2004-10-01~ |
36813-54G20-000 |
US $32.80 |
||
|
8
|
8
71814-74F00-000 SEAL2004-10-01~ |
71814-74F00-000 |
US $1.60 |
||
