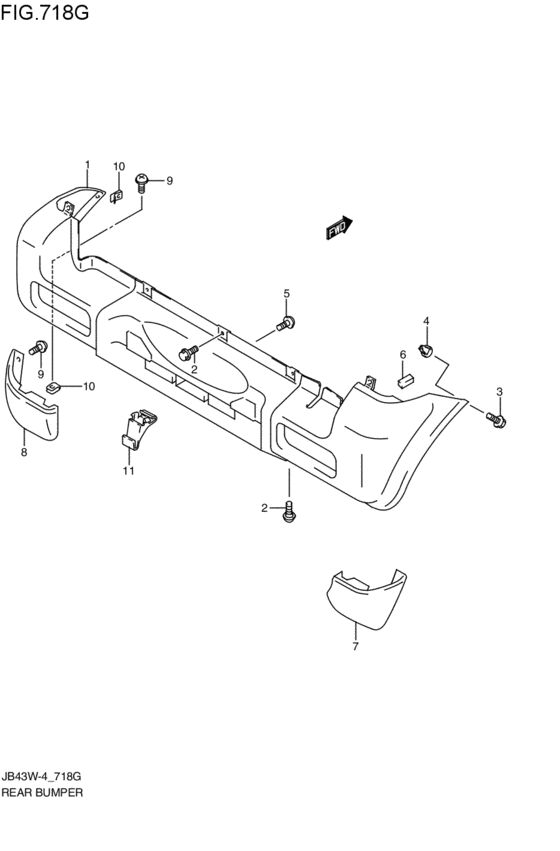

rear bumper (2004-10-01~) Diagram Suzuki JIMNY
- Year
- 2004 - 2011
- Sales region
- Japan
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71811-81A10-CAF BUMPER,RR(BLACK/PRIMARY)ブラック/プライマー; 2004-10-01~ |
71811-81A10-CAF |
from US $489.28 |
||
|
2
|
2
09111-06061-000
Bolt,6x16.5
2004-10-01~ |
09111-06061-000 |
— | ||
| replacement | |||||
|
2
|
2
09111-06094-000 BOLT(6X16.5)2004-10-01~ |
09111-06094-000 |
from US $0.96 |
||
|
3
|
3
09132-06022-000 SCREW(6X20)2004-10-01~ |
09132-06022-000 |
US $1.60 |
||
|
4
|
4
09148-06007-000 NUT2004-10-01~ |
09148-06007-000 |
from US $0.88 |
||
|
5
|
5
03541-05123-000
Screw
2004-10-01~ |
03541-05123-000 |
— | ||
| replacement | |||||
|
5
|
5
03541-0512B-000 SCREW2004-10-01~ |
03541-0512B-000 |
from US $0.76 |
||
|
6
|
6
83921-82C00-000 PAD2004-10-01~ |
83921-82C00-000 |
US $4.16 |
||
|
7
|
7
72211-81A00-W07
フラップ,リヤマッド,ライト(ブラック)
ブラック; 2004-10-01~ |
72211-81A00-W07 |
— | ||
|
8
|
8
72221-81A00-W07
フラップ,リヤマッド,レフト(ブラック)
ブラック; 2004-10-01~ |
72221-81A00-W07 |
— | ||
|
9
|
9
09136-05060-000 SCREW(5X16)2004-10-01~ |
09136-05060-000 |
US $14 |
||
|
10
|
10
09148-05019-000 NUT2004-10-01~ |
09148-05019-000 |
from US $0.96 |
||
|
11
|
11
71813-81A00-000
フック,リヤライセンス
2004-10-01~ |
71813-81A00-000 |
— | ||
| replacement | |||||
|
11
|
11
71813-81A01-000
フック,リヤライセンスプレート
2004-10-01~ |
71813-81A01-000 |
— | ||
