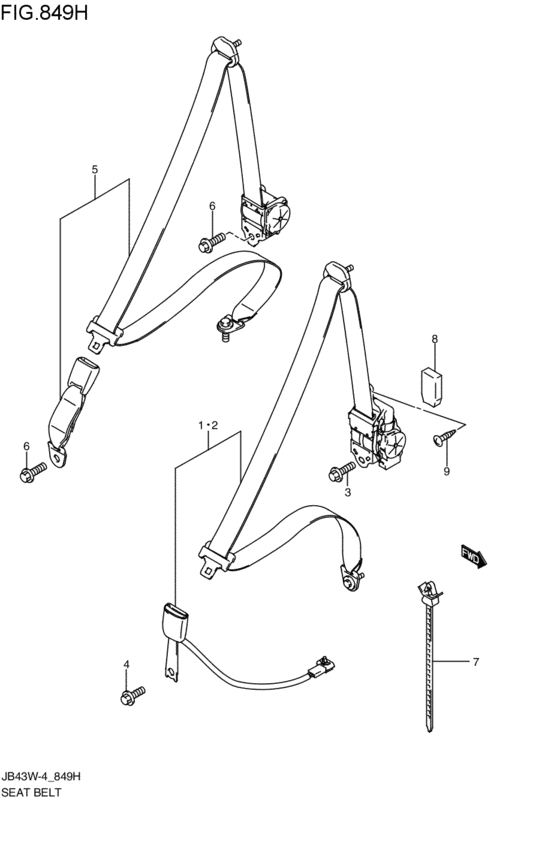

seat belt (2004-10-01~) Diagram Suzuki JIMNY
- Year
- 2004 - 2011
- Sales region
- Japan
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84901-81A71-ED3
ベルトアッシ,フロント,ライト(グレー)
グレー; 2004-10-01~ |
84901-81A71-ED3 |
— | ||
| replacement | |||||
|
1
|
1
84901-81A73-ED3
BELT ASSY,FR,R
グレー; 2004-10-01~ |
84901-81A73-ED3 |
— | ||
|
2
|
2
84902-81A71-ED3
ベルトアッシ,フロント,レフト(グレー)
グレー; 2004-10-01~ |
84902-81A71-ED3 |
— | ||
| replacement | |||||
|
2
|
2
84902-81A72-ED3
BELT ASSY,FR,L
グレー; 2004-10-01~ |
84902-81A72-ED3 |
— | ||
|
3
|
3
09103-11001-000 BOLT(7/16X22)Bolt, fr belt buckle 2004-10-01~ |
09103-11001-000 |
US $18 |
||
|
4
|
4
09117-11001-000
Bolt (11x20)
2004-10-01~ |
09117-11001-000 |
— | ||
| replacement | |||||
|
4
|
4
09117-11002-000 BOLT(11X20)2004-10-01~ |
09117-11002-000 |
US $20.20 |
||
|
5
|
5
84904-81A10-ED3
ベルトアッシ,リヤ(グレー)
グレー; 2004-10-01~ |
84904-81A10-ED3 |
— | ||
| replacement | |||||
|
5
|
5
84904-81A11-ED3 BELT ASSY,RRグレー; 2004-10-01~ |
84904-81A11-ED3 |
US $248.40 |
||
|
6
|
6
09103-11001-000 BOLT(7/16X22)Bolt, fr belt buckle 2004-10-01~ |
09103-11001-000 |
US $18 |
||
|
7
|
7
09407-11402-000 CLAMP(L:90)2004-10-01~ |
09407-11402-000 |
from US $1.75 |
||
| replacement | |||||
|
7
|
7
09407-17402-000 CLAMP2004-10-01~ |
09407-17402-000 |
from US $1.98 |
||
|
8
|
8
84926-81AA0-000 PAD,FRONT ELR2004-10-01~ |
84926-81AA0-000 |
US $5.04 |
||
|
9
|
9
03141-06123-000
Screw 6x12
2004-10-01~ |
03141-06123-000 |
— | ||
| replacement | |||||
|
9
|
9
03141-0612A-000 SCREW2004-10-01~ |
03141-0612A-000 |
US $0.76 |
||
